Large silver steel industrial centrifuge drum with touch screen control panel

HNZXIB

HNZXIB PPTD-50 40L Centrifuge laboratory supply

SKU CH-9VM1-7TNNK MPN PPTD-50

A 40L basket centrifuge with touch-screen PLC control, adjustable separation factor up to 755 and 1500 r/min top speed for de-watering, blending and filtration

  • TypeCentrifuge
  • MaterialSteel
  • Capacity40L
  • Smooth start-up protects components via inverter and damping oil
  • Touch-screen control adjusts speed, time and separation factor
  • 40 L drum capacity handles 60 kg max load
  • SS304L contact parts meet food-grade hygiene standards
  • 1500 r/min rotation delivers 755 separation factor

Industrial 40L Basket Centrifuge

The HNZXIB PPTD-50 is a 40L basket centrifuge built for solid-liquid separation in laboratory and production environments. It handles washing, soaking and blending tasks with positive inversion mixing. SS304L wetted parts meet food-grade processing requirements. The unit targets facilities needing batch de-watering and filtration in a single vessel.

40L capacity with 60 kg max load

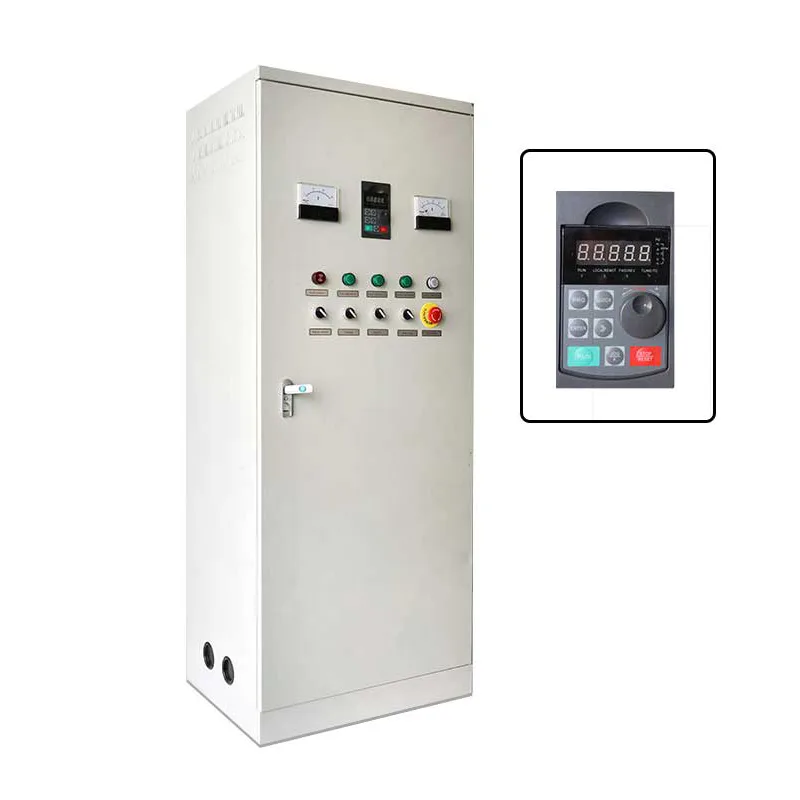

The drum holds 40 litres and accepts a maximum charge of 60 kg. Rotating speed reaches 1500 r/min, generating a separation factor of 755. A 3 kW motor driven by a 3.7 kW frequency converter provides smooth start-up and adjustable speed control. High-viscosity damping oil absorbs mechanical shock during acceleration and deceleration.

SS304L construction with filter-bag system

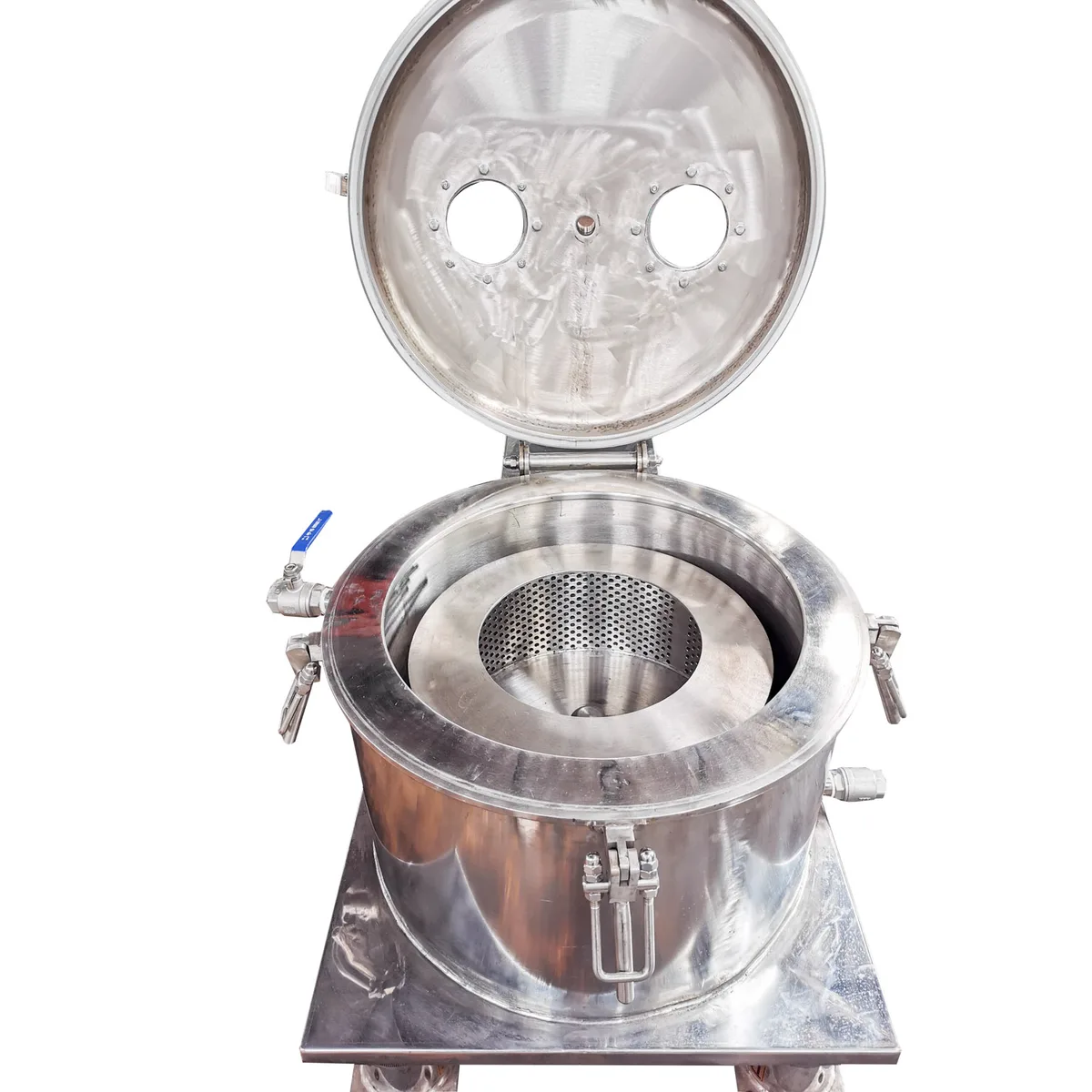

All product-contact surfaces use SS304L stainless steel for corrosion resistance and easy cleaning. The inner bowl accommodates filter bags from 200 to 600 mesh; bag material is selectable per application. Solids collect on the bag for simple removal after the cycle stops. Top ports include a glass view window, explosion-proof lamp, feed port and liquid inlet, with custom port layouts available.

Highlights

  • Smooth start-up protects components via inverter and damping oil
  • Touch-screen control adjusts speed, time and separation factor
  • 40 L drum capacity handles 60 kg max load
  • SS304L contact parts meet food-grade hygiene standards
  • 1500 r/min rotation delivers 755 separation factor

Specifications

TypeCentrifuge
MaterialSteel
Capacity40L

Questions about this item

Will the 600 mm drum and 3 kW motor run on my existing 3.7 kW frequency converter without overload?

The 3 kW motor is matched to the supplied 3.7 kW frequency converter, so the existing converter will drive the 600 mm drum at up to 1500 r/min within its rated capacity.

How can I confirm the separation factor of 755 is being reached during a run?

The touch-screen PLC displays real-time rotating speed; when it shows 1500 r/min the separation factor of 755 is achieved.

Does the shipment include the 200-600 mesh filter bag and the cooling chiller connection kit?

The wooden case contains the centrifuge with SS304L drum, touch-screen PLC, inverter and damping oil; filter bags and chiller fittings are ordered separately to match your mesh and piping requirements.
