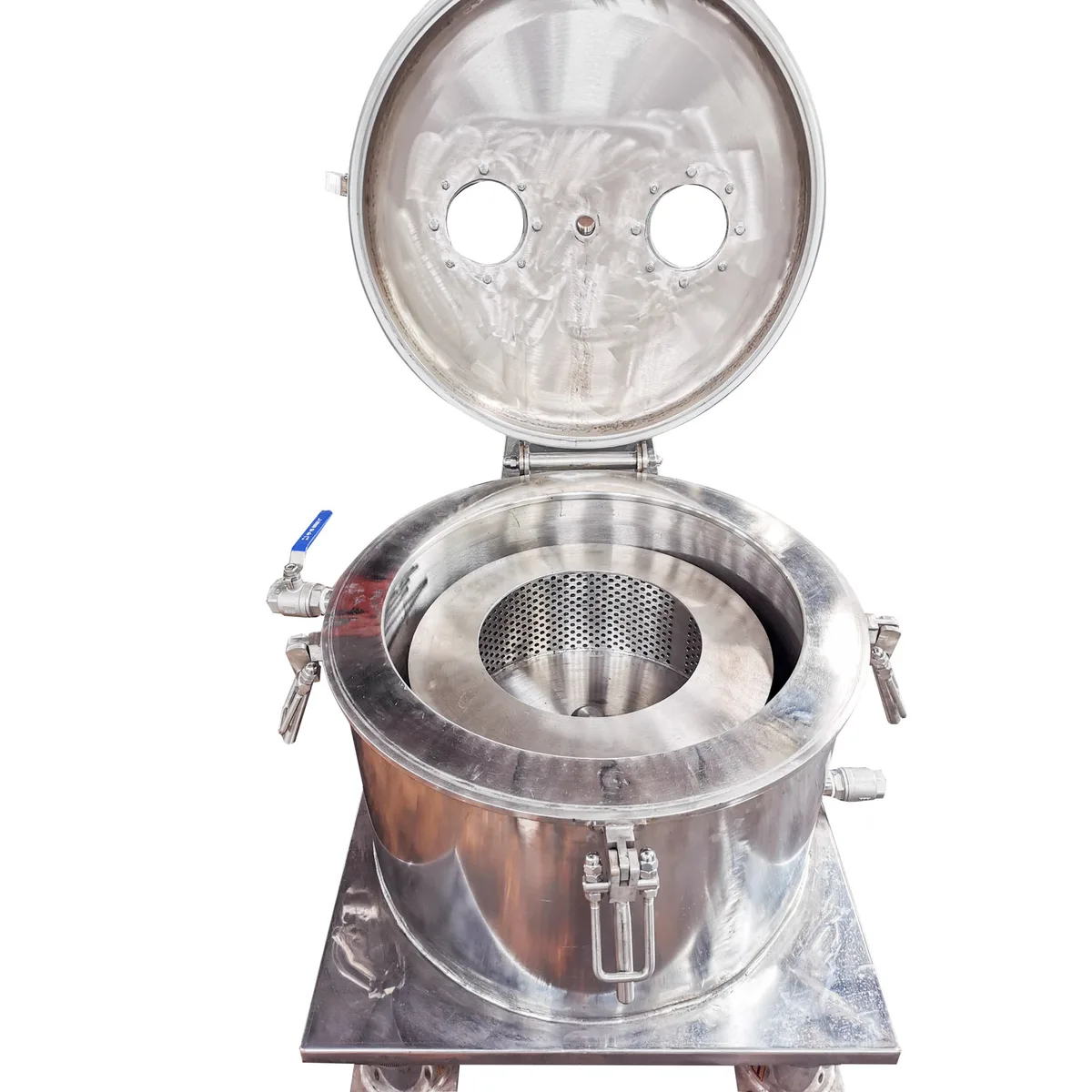

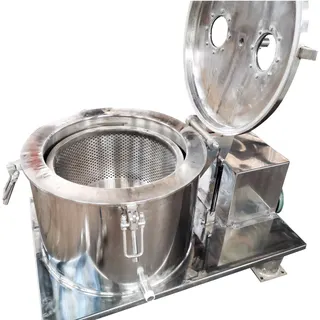

Industrial 5L basket centrifuge, stainless steel drum, touch screen control, wooden crate packaging

HNZXIB

HNZXIB PPTD-10 5L Centrifuge Laboratory Supply

SKU CH-946A-VMPMP MPN PPTD-10

A 5 L basket centrifuge with touch-screen PLC control, 2700 r/min speed and 1225 r/g separation factor for de-watering, soaking and blending

  • TypeCentrifuge
  • MaterialSteel
  • Capacity5L
  • 5 L capacity handles up to 7.5 kg per run
  • 2 700 r/min delivers 1 225 r/g separation factor
  • Inverter start with damping oil absorbs shock smoothly
  • Touch-screen PLC lets you set speed and time
  • SS304L wetted parts meet food-grade cleanliness

5 L Basket Centrifuge

The HNZXIB PPTD-10 is a 5 L basket centrifuge built for industrial de-watering, soaking, blending and separation tasks. It handles a maximum load of 7.5 kg and reaches a separation factor of 1225 r/g. The unit is constructed from SS304L stainless steel for food-grade contact surfaces.

Check power and space before ordering

The motor is rated at 0.75 kW and requires a 1.5 kW frequency converter, so verify your supply can support that draw. The drum diameter is 300 mm and the machine weighs 200 kg, meaning you need adequate floor space and a suitable lifting method for installation. Ensure the four top ports, feed inlet and visual window match your process piping layout.

Stainless steel build with touch-screen control

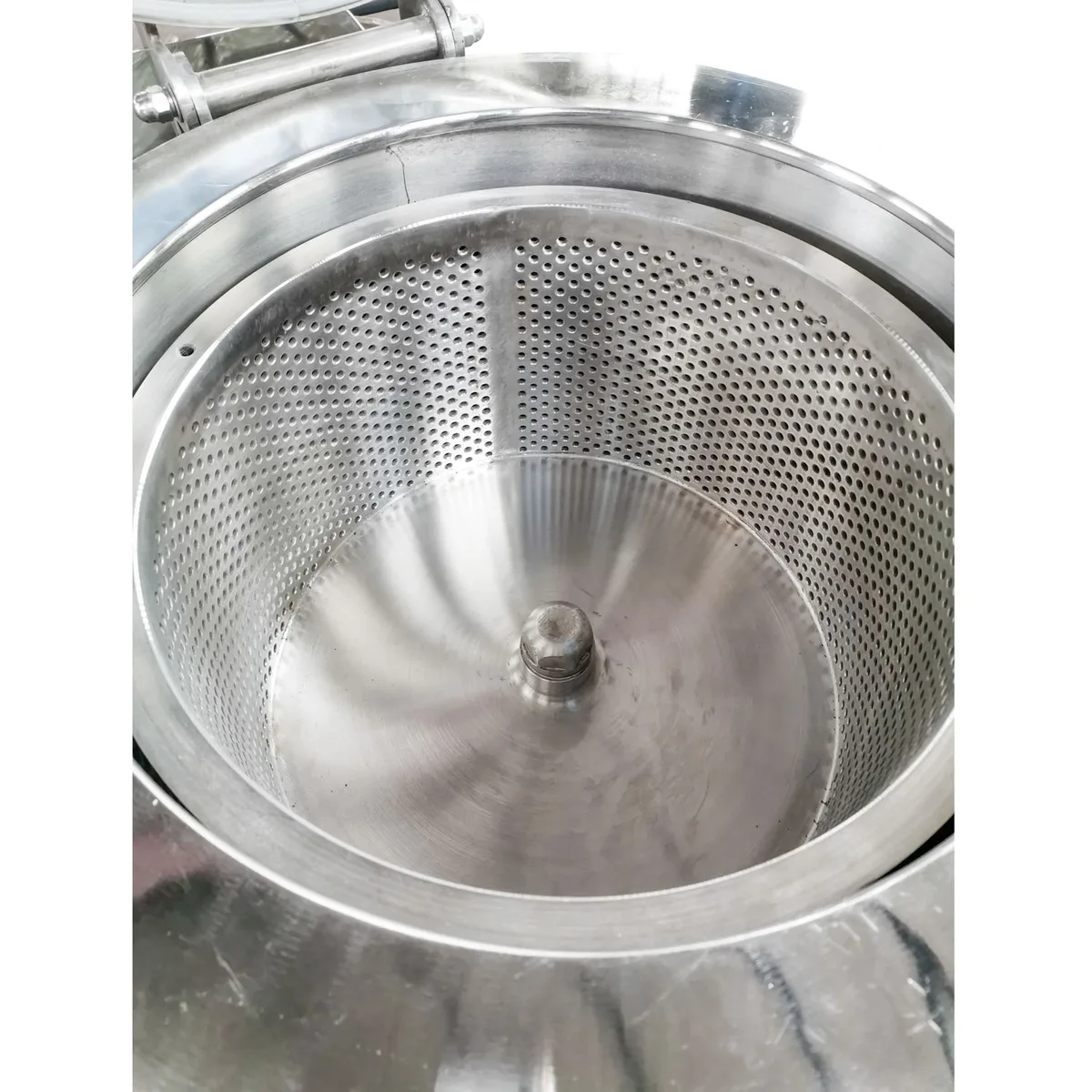

All wetted parts use SS304L stainless steel, allowing thorough drum cleaning between batches. A touch-screen PLC lets operators set rotation speed up to 2700 r/min and adjust the separation factor directly. The inner bowl accepts filter bags from 200 to 600 mesh, which can be removed after separation to collect solids. The unit ships in a wooden case with a 7 to 14 working-day transit time.

Highlights

  • 5 L capacity handles up to 7.5 kg per run
  • 2 700 r/min delivers 1 225 r/g separation factor
  • Inverter start with damping oil absorbs shock smoothly
  • Touch-screen PLC lets you set speed and time
  • SS304L wetted parts meet food-grade cleanliness

Specifications

TypeCentrifuge
MaterialSteel
Capacity5L

Questions about this item

What accessories ship with the PPTD-10 and what must I source separately?

The unit ships in a wooden case with a touch-screen PLC panel, 0.75 kW motor, 1.5 kW frequency converter and a 300 mm drum. Filter bags (200-600 mesh) and any custom ports or a cooling chiller are ordered separately.

How do I choose between the available versions of this centrifuge?

The PPTD-10 is offered as a single 5 L configuration with 7.5 kg max load, 2700 r/min speed and 1225 r/g separation factor; custom GMP design, port layout and filter-bag mesh are specified at order time rather than chosen from stock variants.

What does the 1225 r/g separation factor mean for daily operation?

At 2700 r/min the 300 mm drum generates 1225 r/g, giving strong solid-liquid separation for batches up to 7.5 kg; the inverter start and damping oil keep vibration low so the factor is maintained consistently across cycles.
