HNZXIB
HNZXIB KH-50ML 50ml 220°C laboratory supply
A 50 ml high-pressure autoclave for hydrothermal synthesis up to 220 °C and 22 Mpa with a PTFE-lined stainless steel chamber
- Typehigh pressure autoclave
- Container Size50 ml
- Item Count1 unit
- Temperature RangeRT-380 ?
- Materialstainless steel & Teflon
- Features22 Mpa
- 50 ml chamber handles small-volume hydrothermal reactions
- PTFE lining resists corrosion and withstands 220 °C operation
- Stainless steel shell rated for 3 MPa working pressure

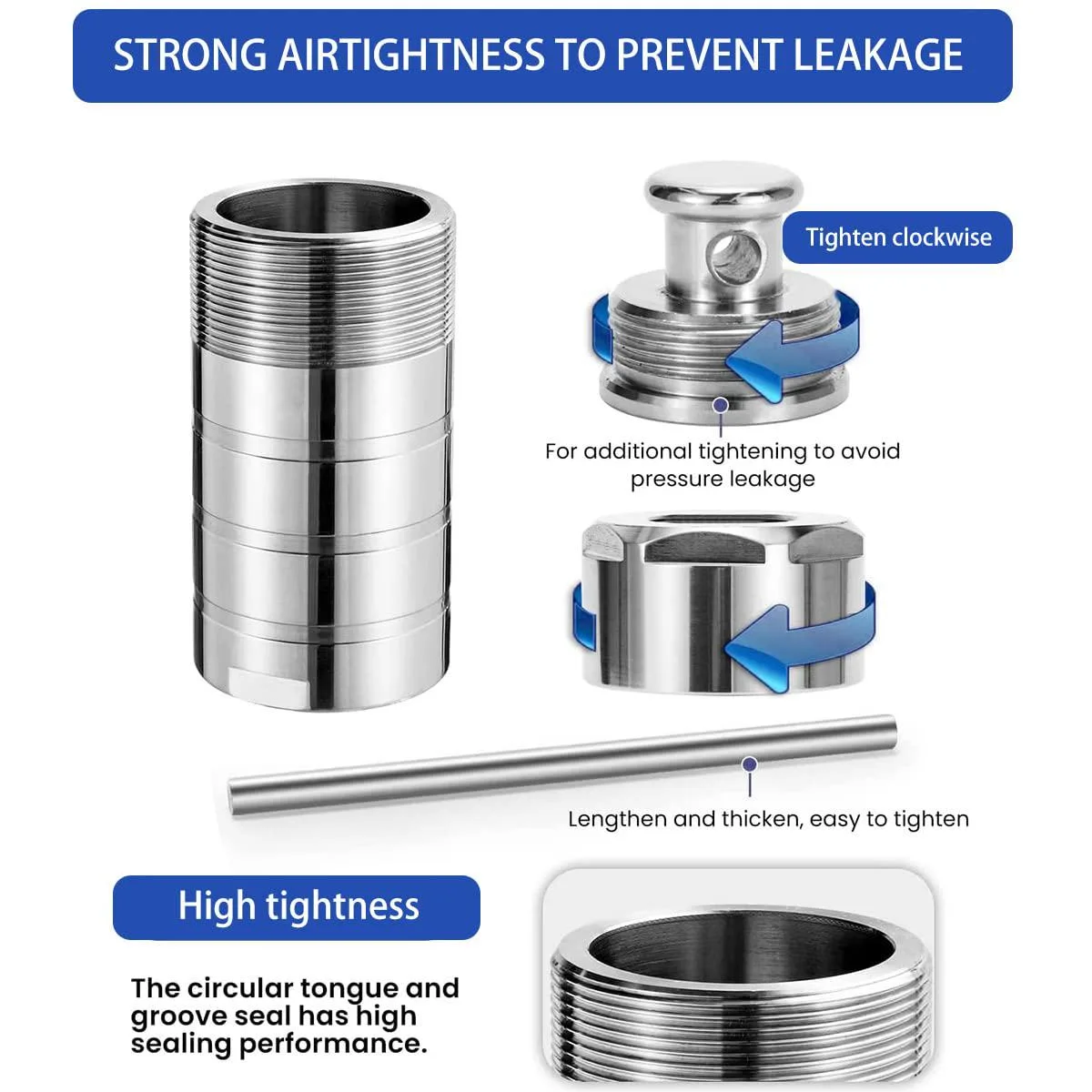

- Screw-tight seal prevents leakage during extended runs
- Suitable for digestion of metals, pesticides, food and environmental samples
50 ml hydrothermal autoclave

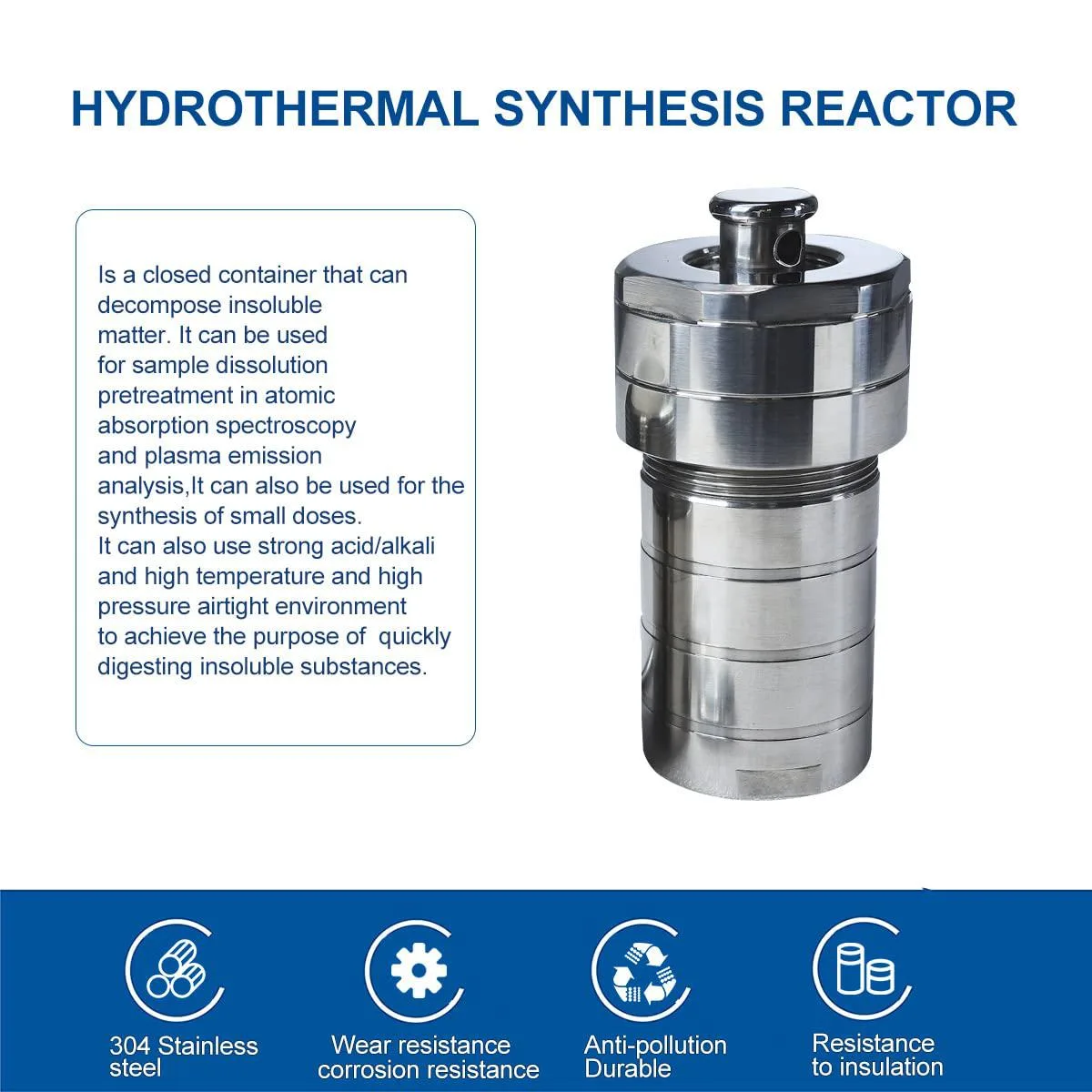

The HNZXIB KH-50ML is a 50 ml high pressure digestion vessel built for laboratory sample preparation. It serves analysts who need a small reaction chamber for hydrothermal synthesis or pressure digestion workflows.
Sustained 220 °C and 3 Mpa operation
The reactor maintains a maximum temperature of 220 °C and a maximum pressure of 3 Mpa during extended heating cycles. Its PTFE lining resists corrosion and remains insoluble in almost all solvents, supporting long term stability without leakage.

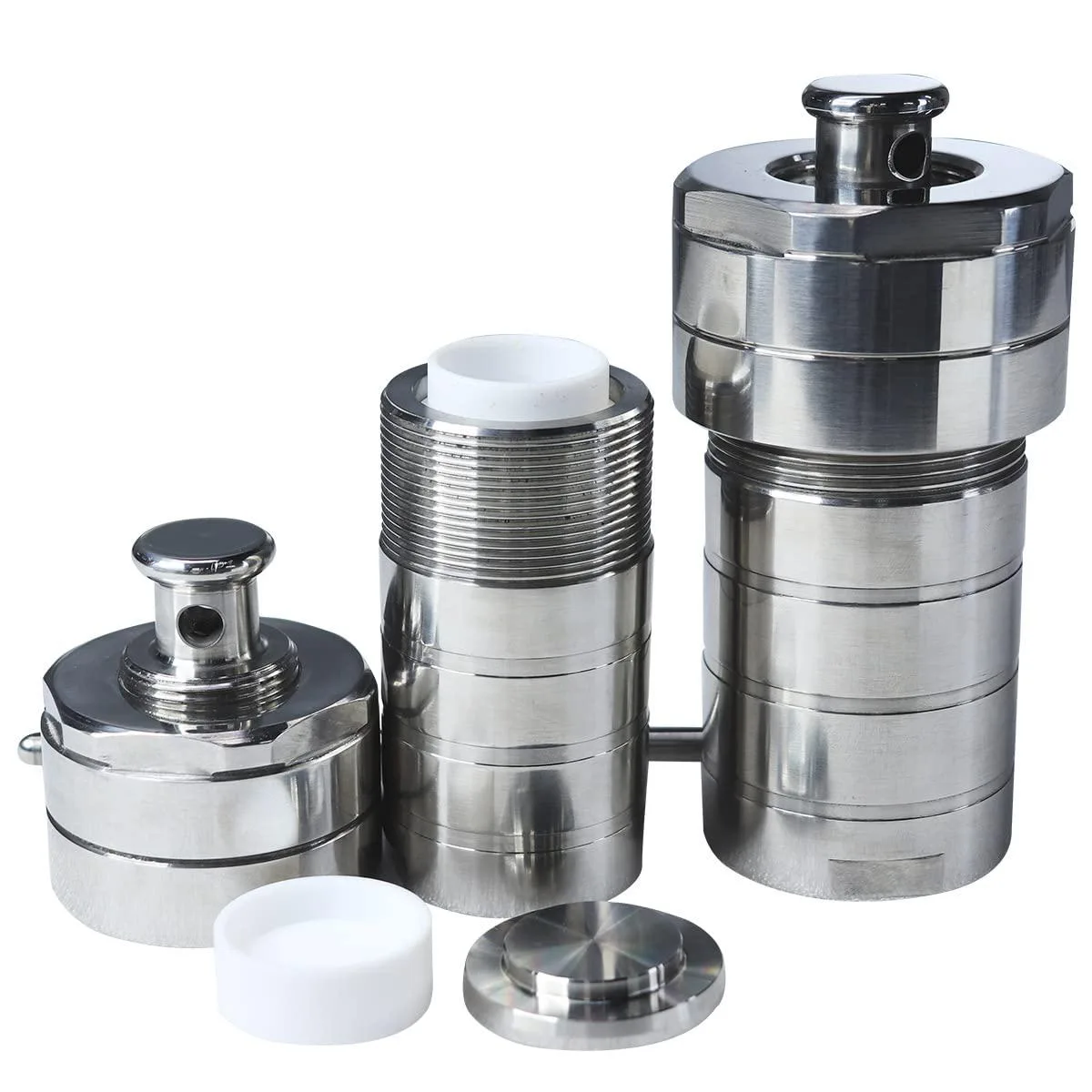

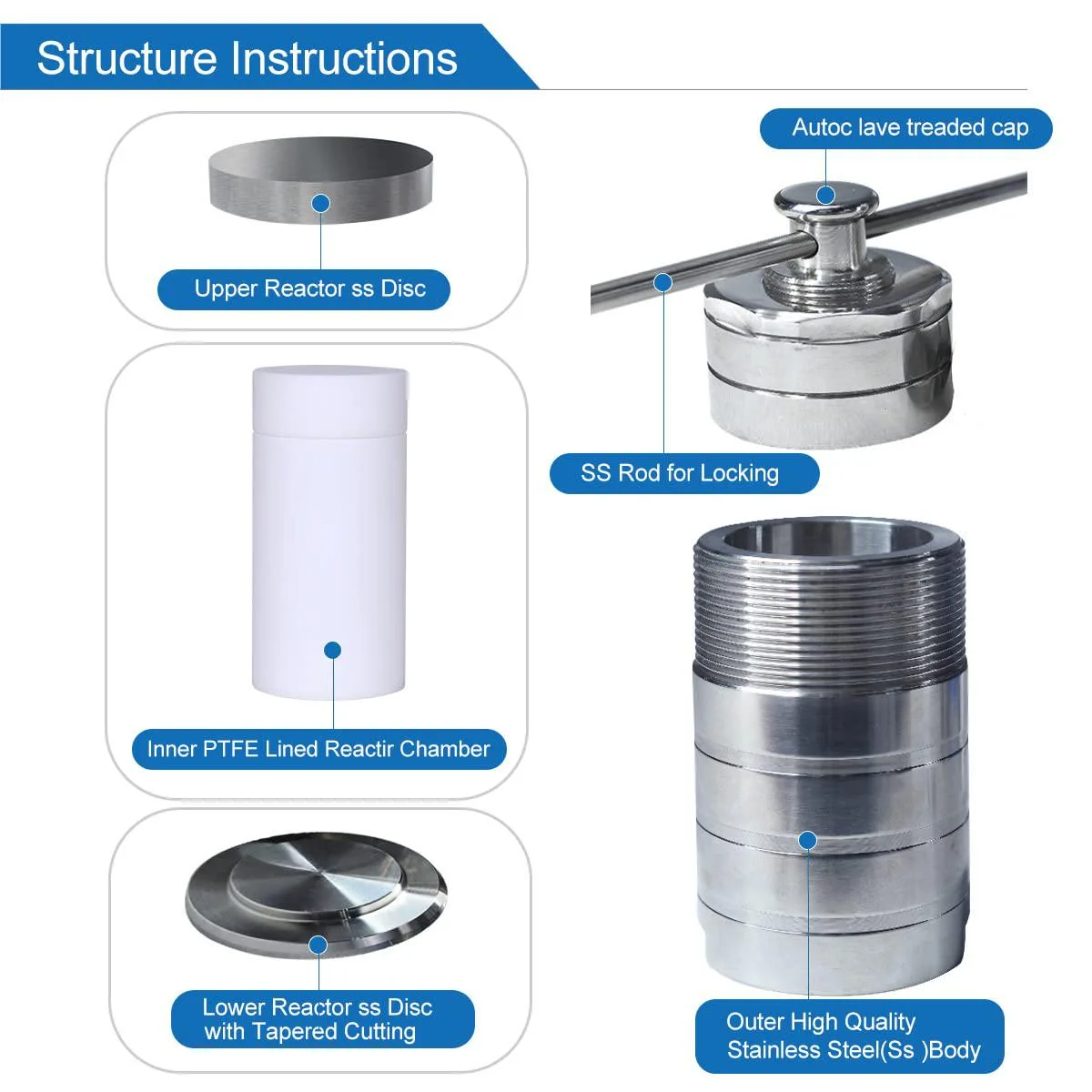

Non magnetic stainless steel body with PTFE chamber
The outer shell uses Cr18Ni9Ti stainless steel while the inner chamber is 50 ml PTFE. A tightening screw design secures the lid and gasket for reliable sealing. Filling factor must stay below .8 and the lower gasket must sit with the raised side correctly positioned.
Highlights
- 50 ml chamber handles small-volume hydrothermal reactions
- PTFE lining resists corrosion and withstands 220 °C operation
- Stainless steel shell rated for 3 MPa working pressure
- Screw-tight seal prevents leakage during extended runs
- Suitable for digestion of metals, pesticides, food and environmental samples
Specifications
| Type | high pressure autoclave |
|---|---|
| Container Size | 50 ml |
| Item Count | 1 unit |
| Temperature Range | RT-380 ? |
| Material | stainless steel & Teflon |
| Features | 22 Mpa |
| Model | KH-50ML |
Questions about this item
How much heat does the 220 °C autoclave add to a lab running it all day?
The vessel reaches a maximum of 220 °C externally; the PTFE liner and stainless shell contain the heat, so ambient rise depends on your oven or heater choice.
What heater must I already own to run the 50 ml KH-50ML safely?
A programmable heater with controlled ramp rates is required; muffle furnaces are unsuitable because overshoot can melt the PTFE liner.
Will the 22 MPa pressure rating work with my existing 25 ml or 100 ml reactor racks?
The KH-50ML shares the same external stainless geometry as the 25 ml–500 ml series, so it fits standard multi-reactor oven shelves and racks.
