HNZXIB
HNZXIB DLSB-20/80 -80°C 20L 220V/50Hz laboratory supply
A 20L refrigerated circulator that cools fluid to -80°C with ±0.2°C precision and a 20L/min pump for rotary evaporators and reactors
- TypeCooling Chiller
- Temperature Range-80°C~RT
- Capacity20L
- Voltage220V
- Reaches -80 °C for ultra-low temperature applications
- 20 L reservoir supplies ample coolant volume
- ±0.2 °C precision keeps processes stable
- 20 L/min flow with 4–6 m lift ensures strong circulation
- Microcomputer controller and digital display simplify operation
Ultra-low temperature chiller

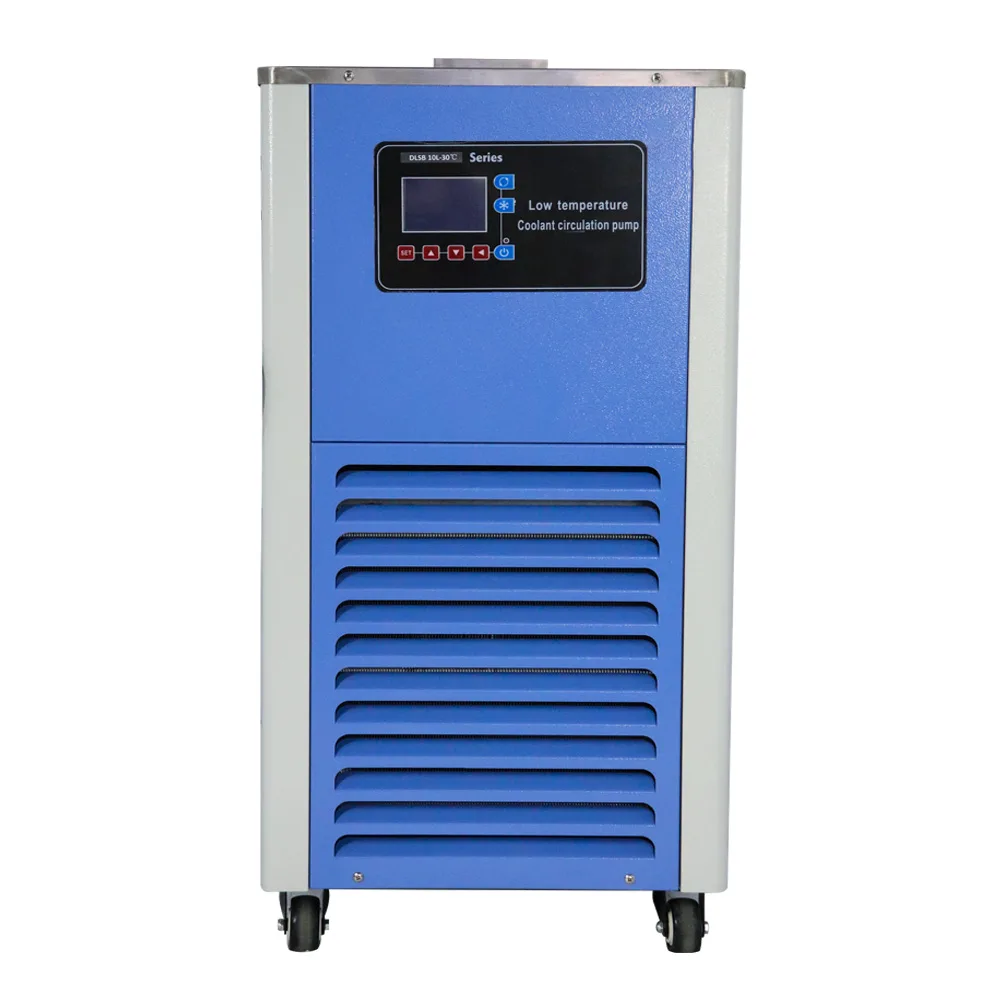

The HNZXIB DLSB-20/80 is a mechanical refrigeration circulator that delivers coolant down to -80 °C from a 20 L reservoir. It operates on 220 V/50 Hz mains power and provides a pump flow of 20 L/min with a lift of 4–6 m. The unit is designed to supply stable low-temperature liquid for laboratory apparatus such as rotary evaporators and jacketed reactors.
Suits labs needing -80 °C circulation
This chiller fits facilities that require precise temperature control at -80 °C with a 20 L bath volume and digital microcomputer display. It is not suited for applications that need larger bath volumes such as 30 L, 50 L or 100 L, nor for processes that demand temperatures below -80 °C such as -120 °C. Sites without 220 V/50 Hz supply should also consider other options.
-80 °C minimum temperature decides fit
The no-load minimum temperature of -82 °C and the rated range to -80 °C with ±0.2 °C precision determine whether this circulator meets the thermal requirements of the intended reaction or storage protocol.
Highlights
- Reaches -80 °C for ultra-low temperature applications
- 20 L reservoir supplies ample coolant volume
- ±0.2 °C precision keeps processes stable
- 20 L/min flow with 4–6 m lift ensures strong circulation
- Microcomputer controller and digital display simplify operation
Specifications
| Type | Cooling Chiller |
|---|---|
| Temperature Range | -80°C~RT |
| Capacity | 20L |
| Voltage | 220V |
Questions about this item
How often does the 20L reservoir coolant need replacing under continuous operation?
Coolant should be inspected regularly and replaced when contamination or degradation appears, as the unit includes protection for precise equipment under bad coolant condition.
What cooling capacity limit is reached first during sustained ultra-low temperature runs?
The refrigeration capacity spans 7828-230W, so the lower 230W figure becomes the limiting factor when maintaining -80°C continuously.
How much heat does the 1050×800×1000 mm cabinet reject into a 25°C room during all-day operation?
At full load the chiller draws up to 7828W, most of which becomes waste heat in the surrounding space, so adequate ventilation is essential.
