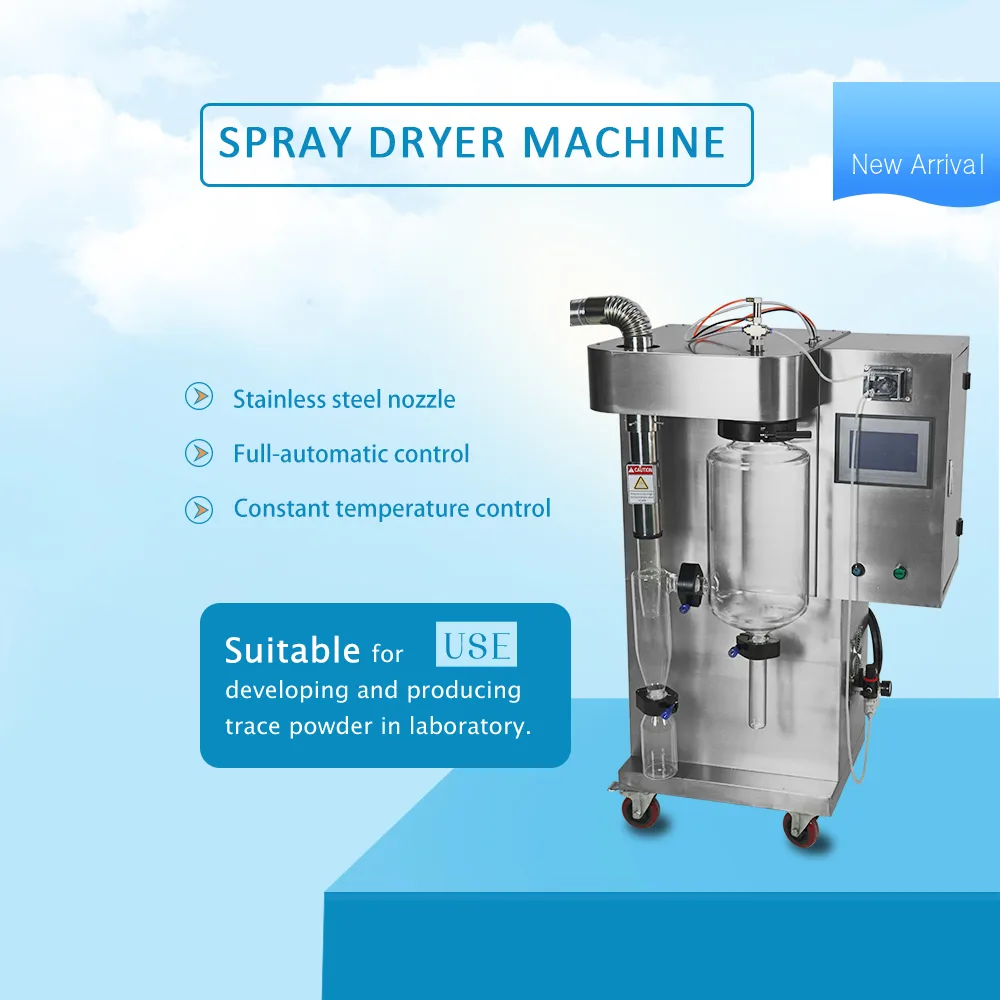

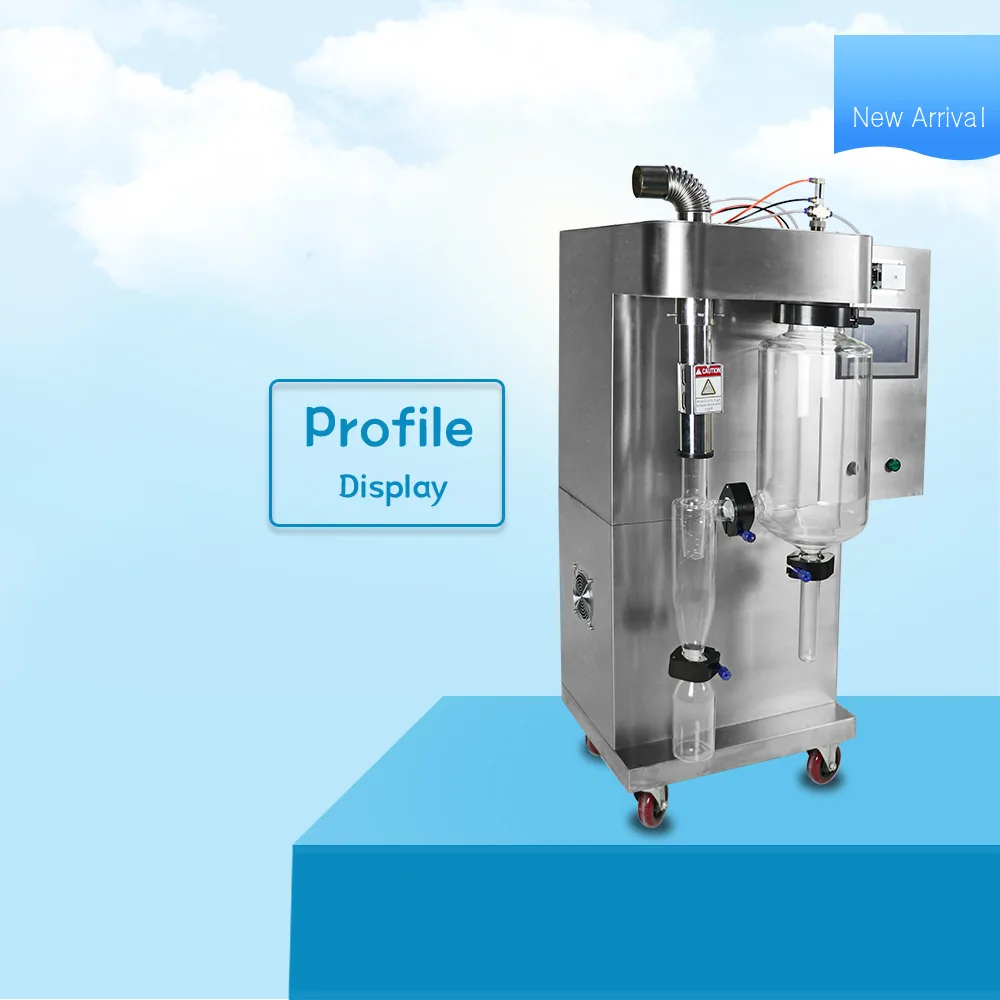

Stainless steel and glass lab spray dryer with touch screen control panel

HNZXIB

HNZXIB 2L Spray Dryer Auto Manual 220V

SKU CH-8YKT-YKPMD

A 2 L/h laboratory spray dryer with PID-controlled inlet temperatures up to 300 °C, outlet to 160 °C, oil-free compressor under 60 dB, and all-glass wetted parts for acid-alkali resistance

  • TypeLab Chemicals
  • Voltage220V
  • Touch-screen PID control of temperature, airflow and pump speed
  • Oil-free compressor under 60 dB meets GMP standards
  • Borosilicate glass components resist strong acid, alkali and high heat
  • Automatic anti-blocking nozzle with variable control
  • 2 L/h evaporation capacity with 0–1 s drying time

Product purpose

The HNZXIB 2L Spray Dryer is a laboratory-scale unit built for researchers who need to convert liquid solutions or suspensions into uniform powder samples. It suits university labs, pilot-plant trials and small-batch development across food, pharmaceutical and material-science workflows.

Critical specification

Water evaporation capacity reaches 2L per hour while inlet temperature is adjustable from ambient up to 300°C and outlet temperature up to 160°C, with PID control keeping both within tight tolerances.

Thermals noise and power

Maximum power draw is 10KW split across three heating stages of 2.2KW, 4.4KW and 8.8KW, and the oil-free compressor keeps operating sound below 60dB for a quiet bench-top environment.

Highlights

  • Touch-screen PID control of temperature, airflow and pump speed
  • Oil-free compressor under 60 dB meets GMP standards
  • Borosilicate glass components resist strong acid, alkali and high heat
  • Automatic anti-blocking nozzle with variable control
  • 2 L/h evaporation capacity with 0–1 s drying time

Specifications

TypeLab Chemicals
Voltage220V

Questions about this item

What does the 2 L/h evaporation rate mean for a typical batch?

It indicates the unit can remove up to two litres of water per hour, so a 20-30 ml test sample will dry in well under one minute.

How does the 220 V supply limit the heating options?

The dryer draws a maximum of 10 kW at 220 V, with selectable heating steps of 2.2 kW, 4.4 kW and 8.8 kW to match the load.

What bench space and connections does the glass assembly need?

The borosilicate drying tower, cyclone and collection bottles mount on the stainless-steel frame and require only the built-in oil-free compressor and a standard 220 V outlet.
