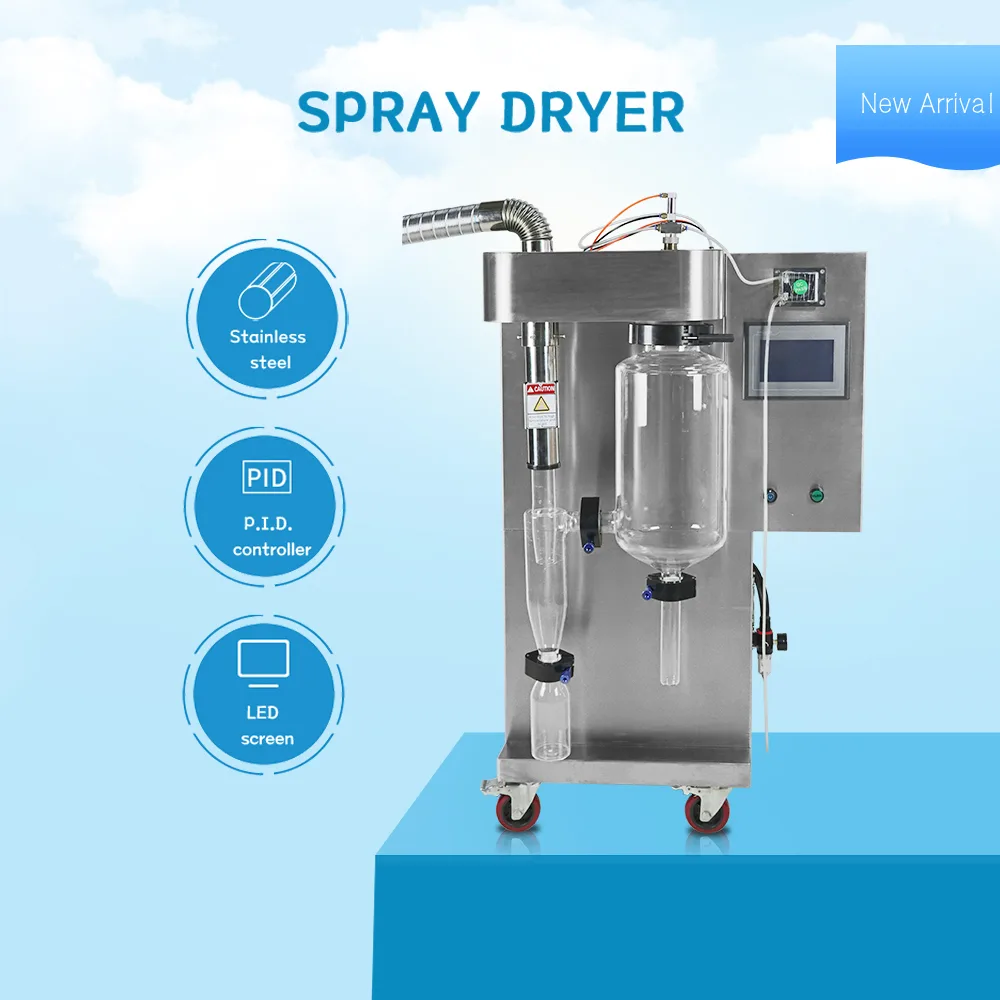

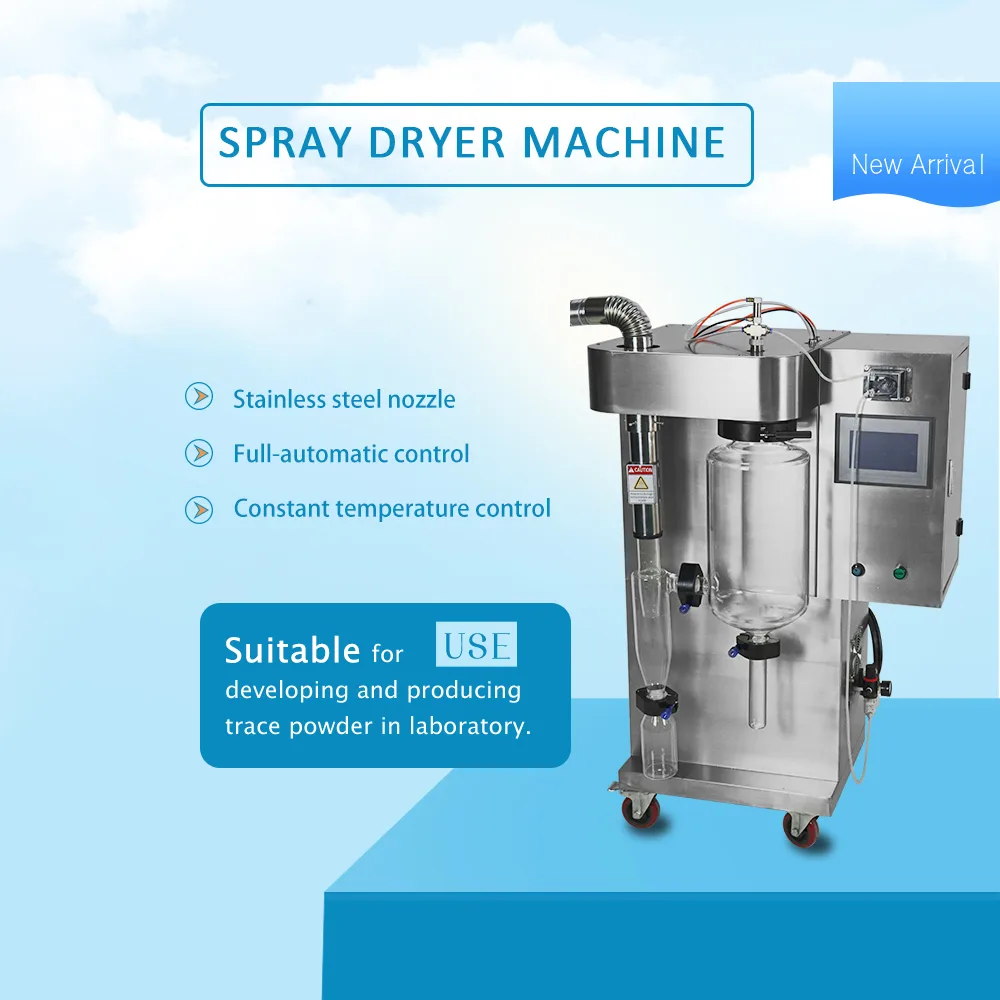

Stainless steel laboratory spray dryer with glass chambers and touch screen control panel

HNZXIB

HNZXIB 2L Spray Dryer Auto Manual 110V

SKU CH-Q9N3-02YFF

A 2 L/h laboratory spray dryer with automatic and manual modes, PID temperature control up to 300 °C inlet and 160 °C outlet, oil-free compressor below 60 dB.

  • TypeLab Chemicals
  • Voltage110V
  • Touch-screen PID control of temperature, airflow, pressure, pump speed and de-blocking frequency
  • Oil-free compressor runs below 60 dB and meets GMP requirements
  • Borosilicate glass chamber, cyclone and receiver resist strong acid, alkali and high temperature
  • Automatic anti-blocking device prevents nozzle clogging with variable control
  • Evaporates up to 2 L/h with heating power options of 2.2, 4.4 and 8.8 kW

2L Spray Dryer for Laboratory Research

The HNZXIB spray dryer processes solution or suspension into uniform powder using high-speed centrifugal atomisation. It offers both automatic and manual control modes via a touch screen that displays temperature, air volume, air pressure, pump speed and de-blocking frequency. Inlet and outlet temperatures are regulated by PID control for repeatable results. The unit suits laboratory research across food, pharmaceutical, chemical and material-science fields.

Upgrades from Manual Glassware Drying

This instrument replaces time-consuming oven or freeze-drying workflows by evaporating up to 2L of water per hour with an average drying time of 0-1 second. The jump is worth it when you need rapid, contamination-free powder production from heat-sensitive materials such as milk products, plant extracts, pharmaceuticals or polymers. An oil-free air compressor keeps compressed air clean and operates below 60 dB, meeting GMP expectations for a clean environment.

Check Power Supply and Sample Volume Before Ordering

The dryer requires a 110V 60 Hz supply and draws a maximum of 10 kW with selectable heating steps of 2.2 kW, 4.4 kW and 8.8 kW. Verify that your laboratory circuit can sustain this load. The process needs at least 20-30 ml of liquid to complete a test run. All wetted parts — spray chamber, cyclone separator and collection bottles — are high borosilicate glass resistant to strong acid, alkali and high temperature.

Highlights

  • Touch-screen PID control of temperature, airflow, pressure, pump speed and de-blocking frequency
  • Oil-free compressor runs below 60 dB and meets GMP requirements
  • Borosilicate glass chamber, cyclone and receiver resist strong acid, alkali and high temperature
  • Automatic anti-blocking device prevents nozzle clogging with variable control
  • Evaporates up to 2 L/h with heating power options of 2.2, 4.4 and 8.8 kW

Specifications

TypeLab Chemicals
Voltage110V

Questions about this item

What voltage supply does the 2 L spray dryer require?

It operates on a 110 V, 60 Hz single-phase supply with a maximum draw of 10 kW.

Which step is most often missed when assembling the glassware?

Fitting the silicone gaskets on every borosilicate joint before clamping the drying tower, cyclone separator and collection bottles.

How often should the oil-free compressor intake filter be checked?

Inspect and clean the filter monthly; the unit runs below 60 dB and the filter keeps compressed air contaminant-free.
