HNZXIB 100ml 220 Hydrothermal Synthesis Autoclave Reactor

100 ml Hydrothermal Synthesis Reactor

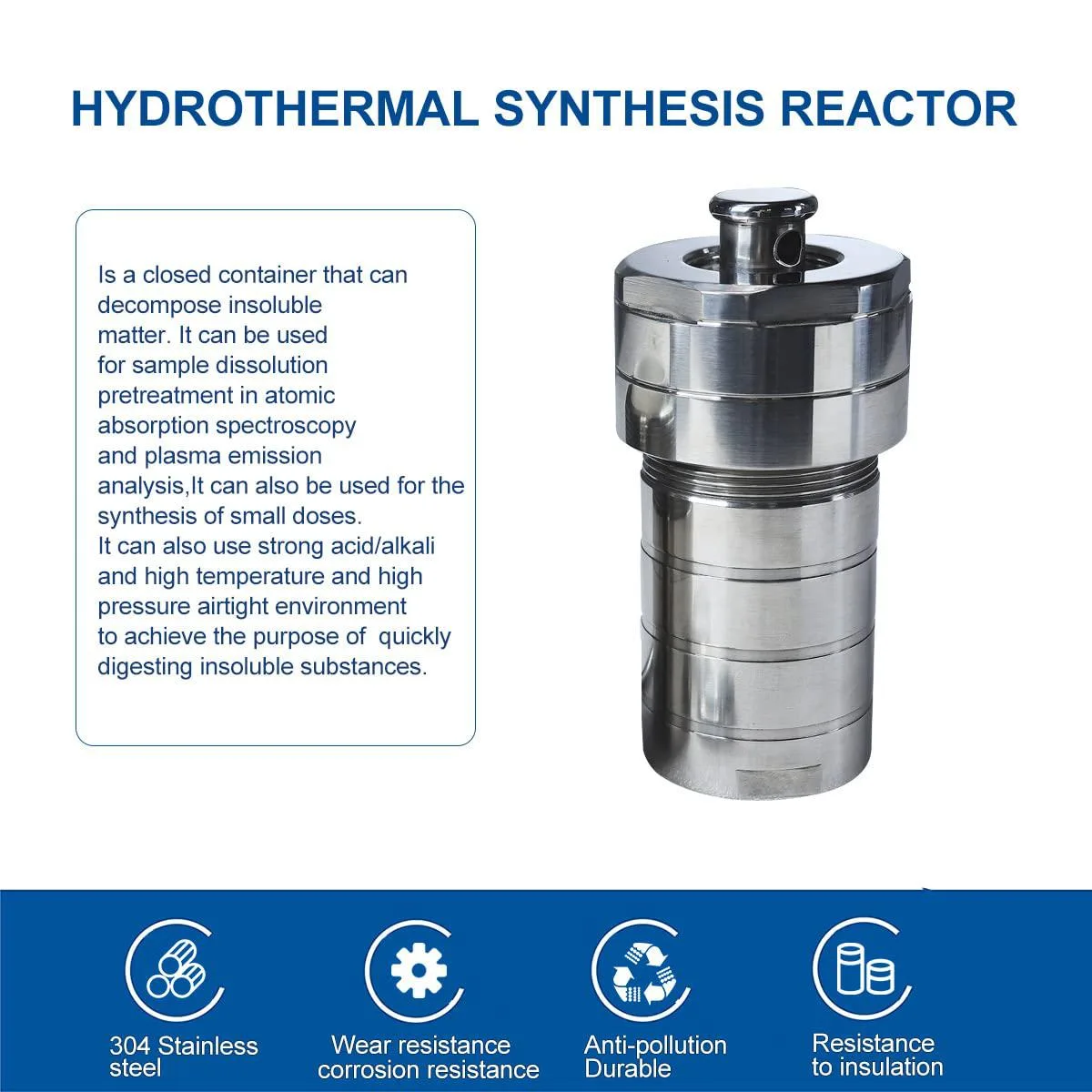

The HNZXIB autoclave is a 100 ml high pressure digestion vessel built for laboratory sample preparation. It serves chemists and technicians who need to decompose insoluble substances such as heavy metals, pesticide residues, food, water, slurry, rare earth products and organic matter under controlled hydrothermal conditions.

Non-magnetic stainless steel body with PTFE lining

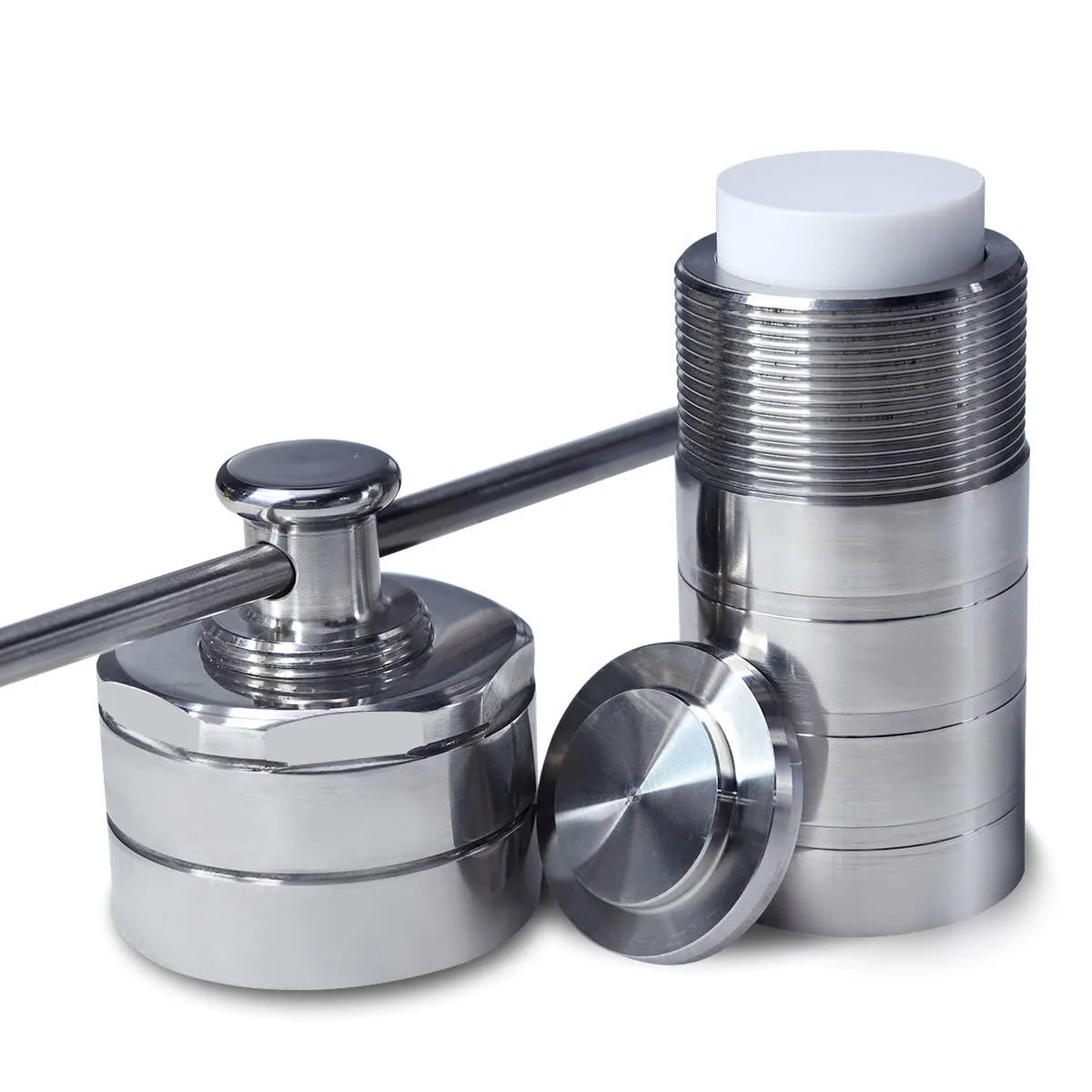

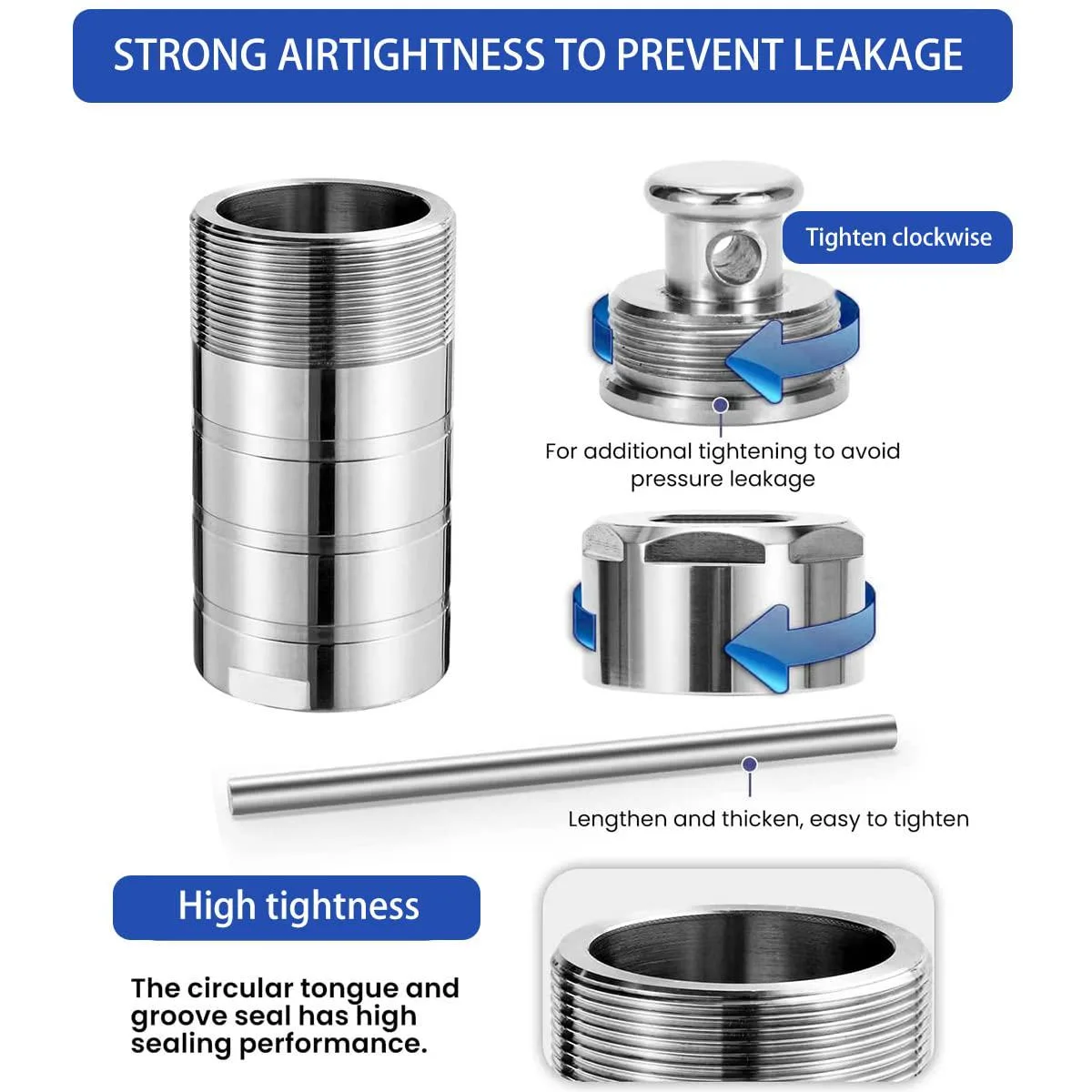

The reactor shell uses Cr18Ni9Ti stainless steel while the inner chamber is lined with PTFE Teflon that resists high temperature, pressure and corrosion and is insoluble in almost all solvents. A tightening screw design on the kettle body and lid ensures long term sealing stability with no leakage during extended heating cycles.

Replaces smaller vessels when scaling up digestion

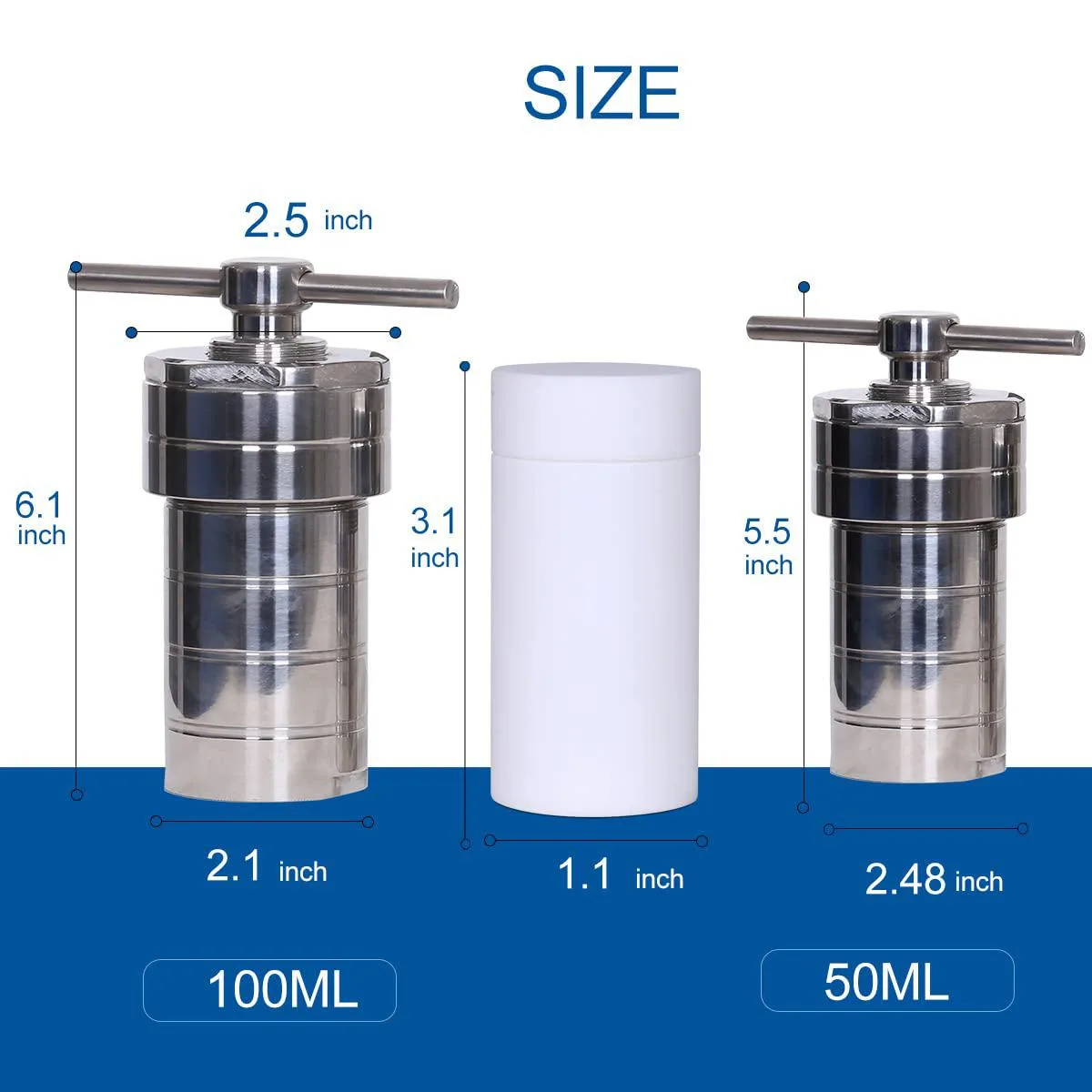

This 100 ml unit steps up from 25 ml or 50 ml reactors for batches that exceed their capacity, and the filling factor must stay below 0.8 for safe operation. The jump is worth it when your reaction solution approaches 30 ml or more and you require a maximum temperature of 220 °C and a pressure rating of 3 Mpa within an oven heated environment.
