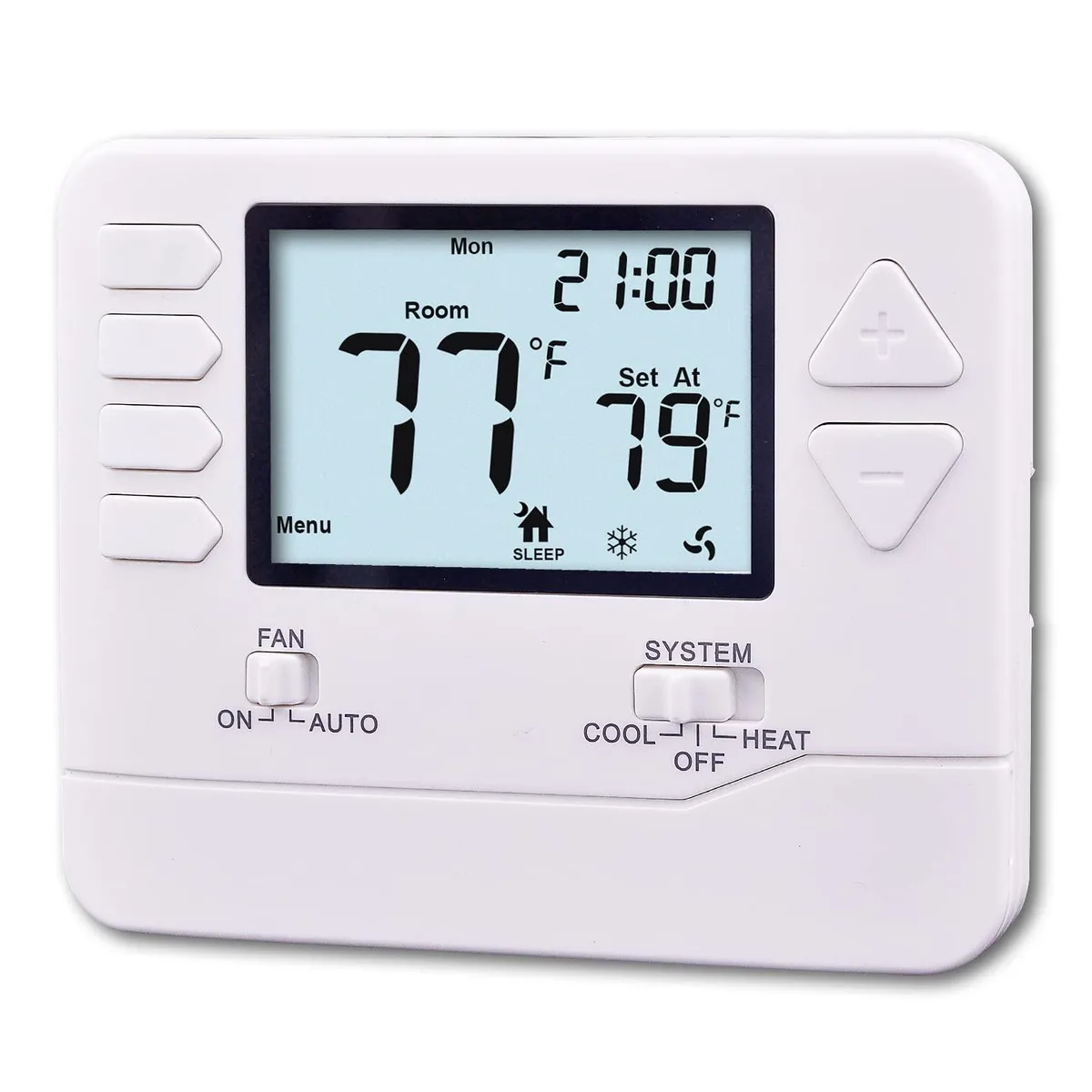

Heagstat H705 1 Heat/1 Cool 5-1-1 Programmable Thermostat 24VAC White Backlight
A 24 VAC single-stage thermostat with 5-1-1 day programming, white backlight and battery backup for conventional heating and cooling systems
- TypeH705 thermostat, Two screws and anchors, Installation manual
- Size/Dimensions120 mm x 98 mm x 25 mm
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay Contact1 HEAT / 1 COOL, 24 volts_of_alternating_current

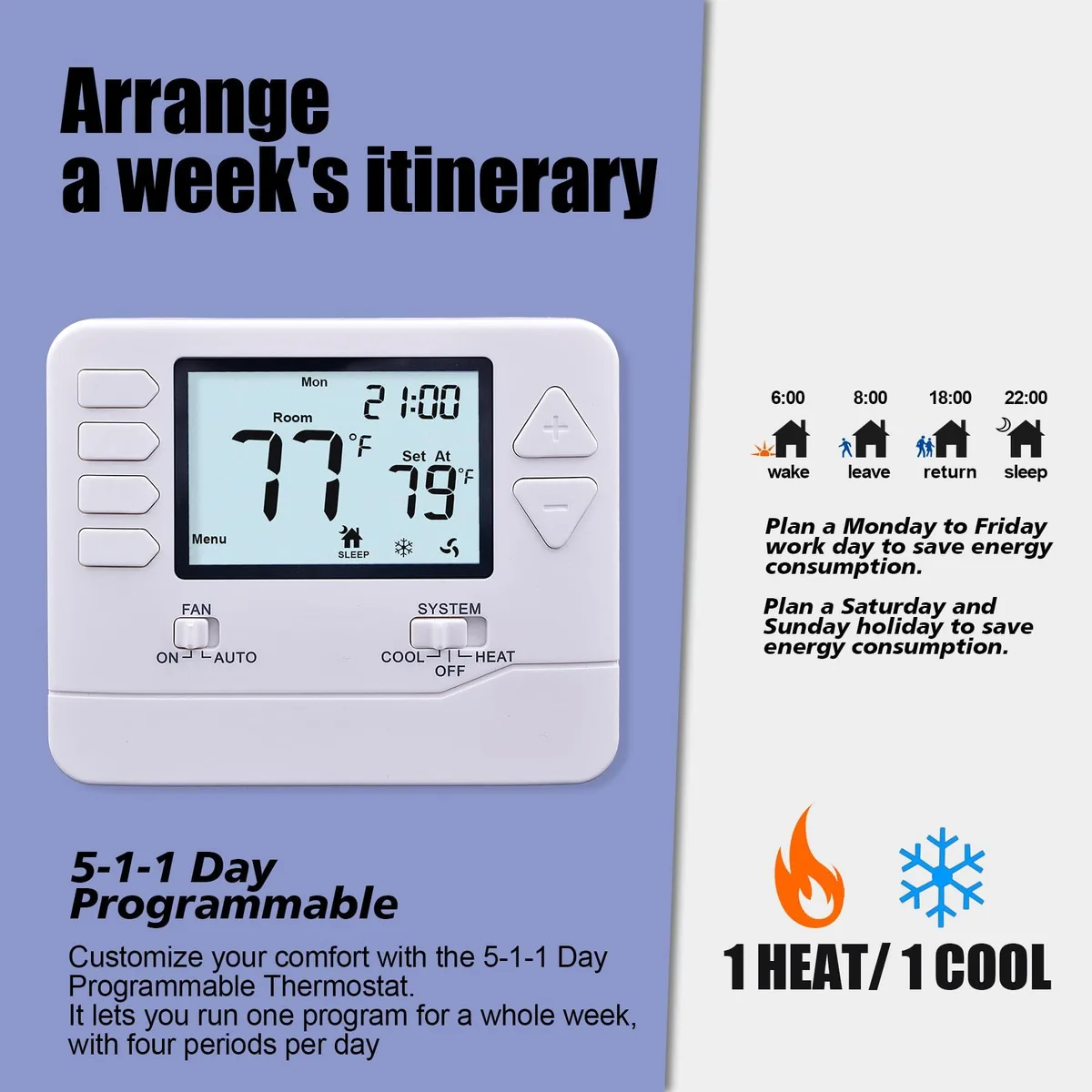

- 5-1-1 programmable schedule adapts to weekday and weekend routines
- 24VAC or 2 AAA battery power enables flexible installation
- 120 mm × 98 mm white backlit display ensures clear readability
- Separate heating and cooling swing optimises cycle rates
- Compatible with single-stage gas, oil, electric and AC systems
Simple Programmable Control
The Heagstat H705 is a 24VAC single-stage thermostat that manages one heating and one cooling circuit. A 5-1-1 day schedule lets you set four daily periods for weekdays and a separate weekend program. The 3-inch LCD with white backlight shows temperature in Celsius or Fahrenheit and offers a 12 or 24 hour clock.
Compatibility Limits

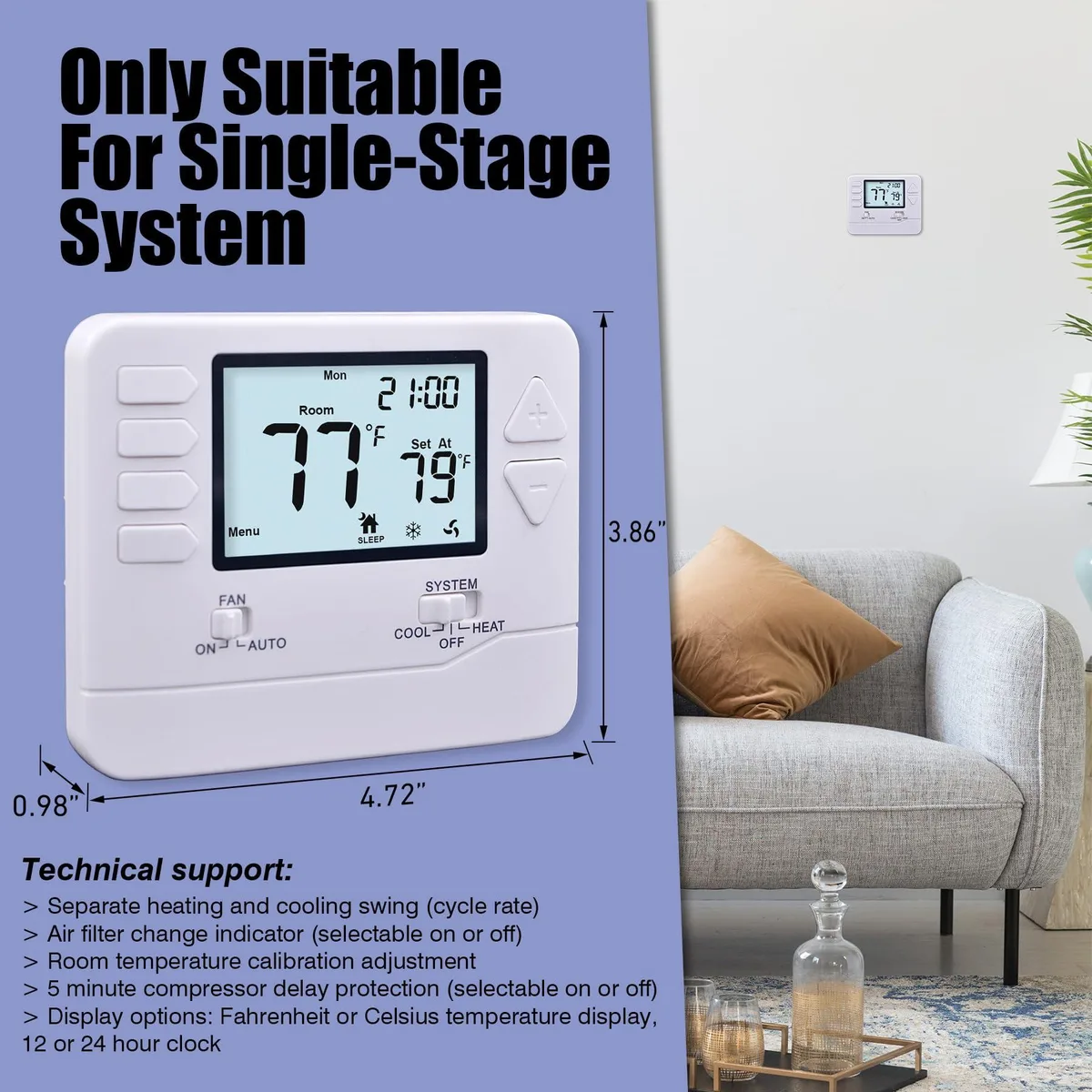

It suits conventional forced-air gas, oil or electric furnaces paired with central air conditioning. Homes with multi-stage heating or cooling, heat pumps, hydronic systems, line-voltage baseboards, mini-splits, PTAC units or RV air conditioners cannot use this model. The terminal block lacks W2, Y2, O/B, E, L and auxiliary connections.
Steady Operation
Dual power from the 24VAC circuit or two AAA batteries keeps the display and schedule running during a power loss. A selectable five-minute compressor delay protects the outdoor unit from short-cycling. Separate heating and cooling swing settings let you tune cycle rates for longer, more stable run times.
Highlights
- 5-1-1 programmable schedule adapts to weekday and weekend routines
- 24VAC or 2 AAA battery power enables flexible installation
- 120 mm × 98 mm white backlit display ensures clear readability
- Separate heating and cooling swing optimises cycle rates
- Compatible with single-stage gas, oil, electric and AC systems
Specifications
| Type | H705 thermostat, Two screws and anchors, Installation manual, Cable labe, 1 Heating and 1 Cooling, Push Button |
|---|---|
| Brand | Heagstat |
| Model | H705 |
| Size/Dimensions | 120 mm x 98 mm x 25 mm |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | 1 HEAT / 1 COOL, 24 volts_of_alternating_current |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Selling Unit | H705 thermostat, Two screws and anchors, Installation manual, Cable labe |
| Features | Single-Stage Heating (Gas/Oil/Electric Furnace), Ventilation, and Air Conditioning, Separate Heating and Cooling Swing (Cycle Rate), Low Battery Indicator, Heagstat |
Questions about this item
What HVAC system must I already have for this H705 thermostat to work?
It requires a conventional single-stage system with one heating stage and one cooling stage, such as forced-air gas, oil, or electric furnace plus air conditioning.
Will this thermostat control my existing multi-stage heat pump if I keep it?
No, the H705 does not support multi-stage heating or cooling, heat pumps, PTAC units, hydronic systems, dual-fuel setups, line-voltage heaters, mini-splits, or RV air conditioners.
How can I verify the H705 is operating correctly after wiring it up?
The 3-inch LCD with white backlight shows room temperature, set-point, mode, and low-battery indicator; compressor delay protection activates for five minutes when cooling starts.
