Heagstat H701W Non-Programmable Thermostat 12 Pack White
A 12-pack of non-programmable thermostats for single-stage 1 heat/1 cool systems with 24 VAC or battery power and a 4.5 sq in backlit display
- Typethermostat, Two screws and anchors, Installation manual, Cab
- Size/Dimensions0.98 in x 4.72 in x 3.86 in
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactSimple Digital Thermostat, 24 volts_of_alternating_current
- Simple non-programmable control for 1 heat/1 cool systems
- 12-pack supplies every zone in a single order
- 24 VAC or 2 AAA battery power fits any wiring
- 5 sq in backlit display reads clearly in low light
- 5-minute compressor delay protects equipment on every cycle
12-pack non-programmable thermostat

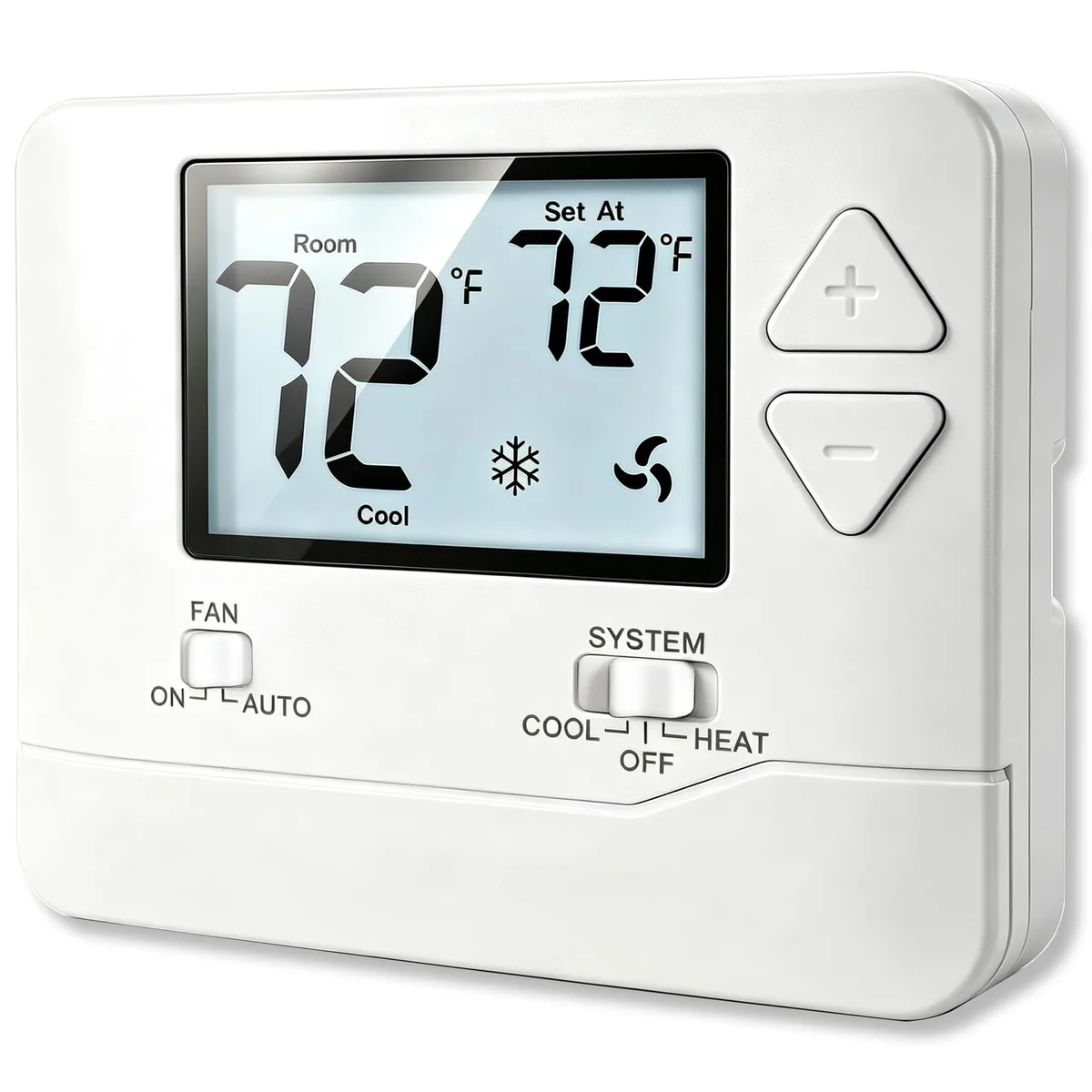

This 12-pack supplies Heagstat H701W non-programmable thermostats for homes with conventional single-stage heating and cooling. Each unit controls one heat and one cool stage using 24 VAC power or two AAA batteries. The white wall-mount design fits standard RH, RC, W, Y, G and C terminal wiring.
Sustained temperature control

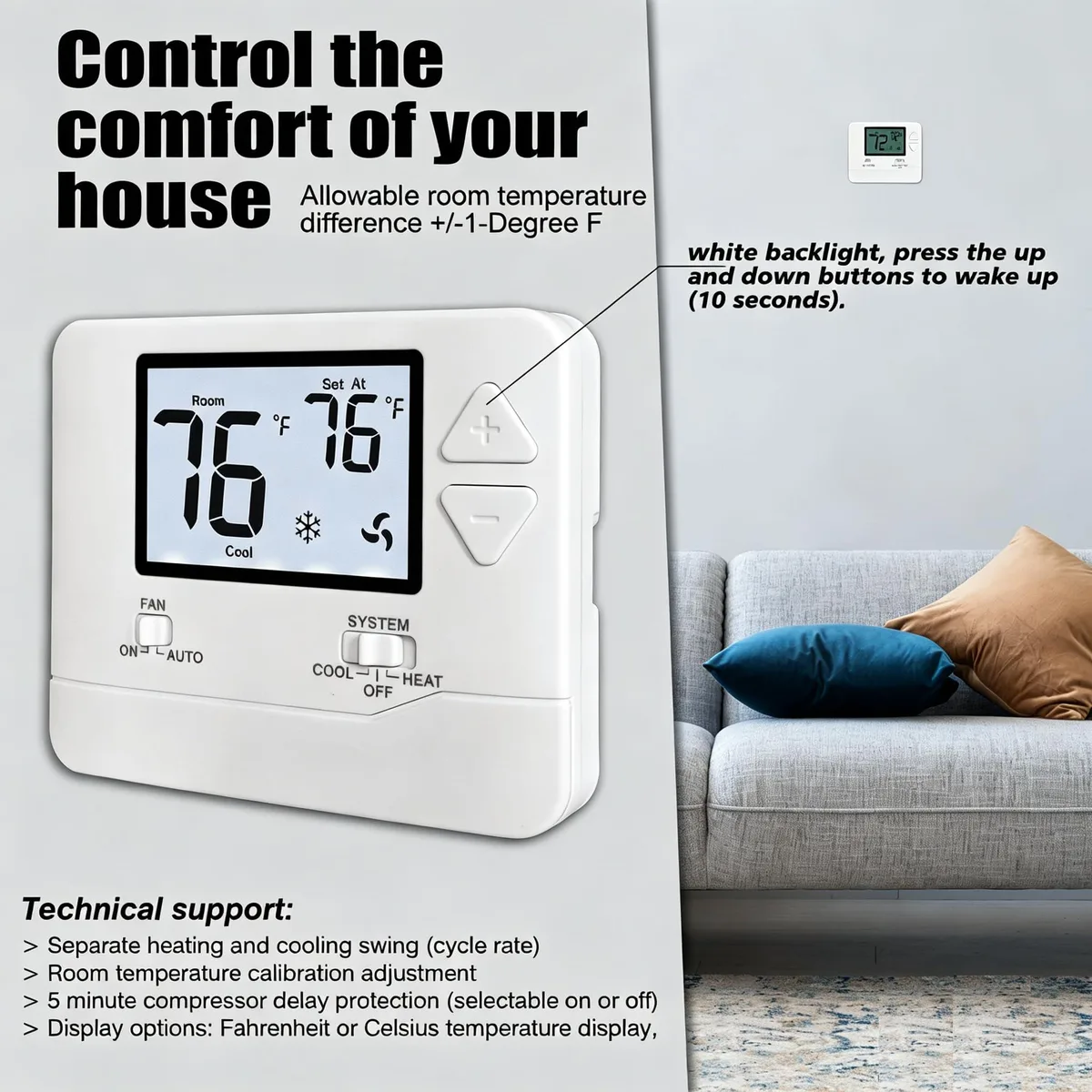

The thermostat maintains room temperature between 41°F and 95°F with a control range of 44°F to 90°F. Adjustable swing settings from 0.2°F to 2°F reduce short-cycling during long heating or cooling runs. A selectable five-minute compressor delay protects equipment during repeated cycles.
Wall-mount build and wiring

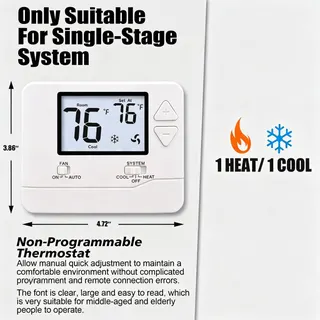

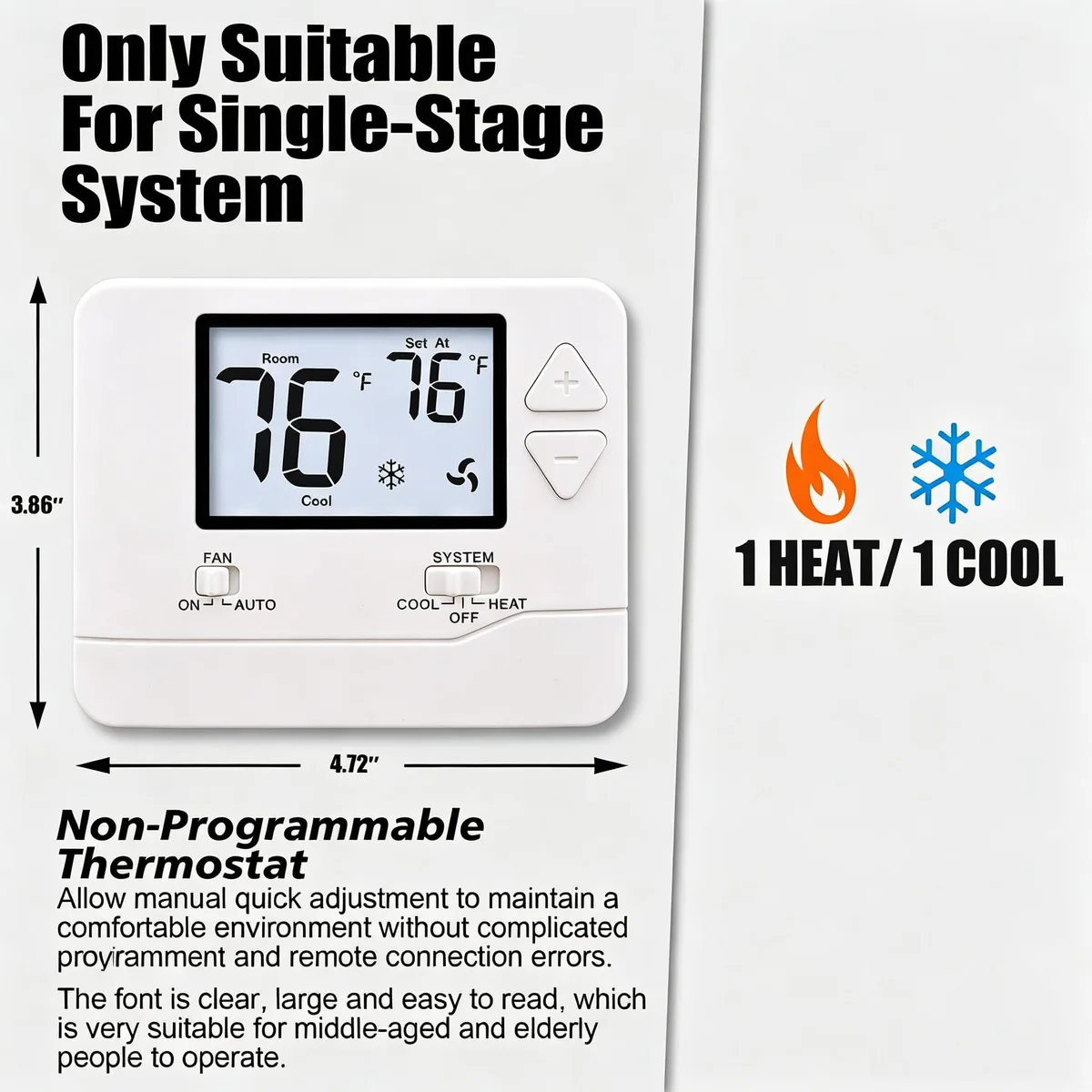

Each unit measures 0.98 in deep, 4.72 in wide and 3.86 in high with a 4.5 sq in backlit display. The C-wire-free design allows battery-only installation when a common wire is absent. Two screws and anchors plus cable labels are included for straightforward mounting. The base does not support multi-stage, heat-pump, line-voltage or hydronic systems.
Highlights
- Simple non-programmable control for 1 heat/1 cool systems
- 12-pack supplies every zone in a single order
- 24 VAC or 2 AAA battery power fits any wiring
- 5 sq in backlit display reads clearly in low light
- 5-minute compressor delay protects equipment on every cycle
Specifications
| Type | thermostat, Two screws and anchors, Installation manual, Cable label, Manual, Non-Programmable |
|---|---|
| Brand | Heagstat |
| Model | H701W |
| Size/Dimensions | 0.98 in x 4.72 in x 3.86 in |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Simple Digital Thermostat, 24 volts_of_alternating_current |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Item Count | 12 pack |
| Selling Unit | 1, thermostat, Two screws and anchors, Installation manual, Cable label |
| Features | for use with central gas, oil, electric furnaces conventional single stage systems, Backlit Display, Temperature Calibration, Compressor Delay Protection, Low Battery Reminder, Adjustable Swing, Heagstat |
| Part Number | H701W-A01 |
Questions about this item
Does the Heagstat H701W make any audible noise or generate heat while running continuously?
The thermostat uses a silent digital relay and a low-power LCD, so it produces no fan noise and negligible heat during all-day operation.
What wiring must already exist in the wall for the H701W to function?
A 24 VAC system with two to five wires connected to standard RH, RC, W, Y, G or C terminals is required; 120–240 V line-voltage or proprietary mini-split wiring will not work.
Will the H701W control my older single-stage gas furnace and central air conditioner?
Yes — it supports conventional 1-heat/1-cool single-stage forced-air systems including gas, oil or electric furnaces and 24 V gas fireplaces, but it cannot operate multi-stage, heat-pump or millivolt hydronic systems.
