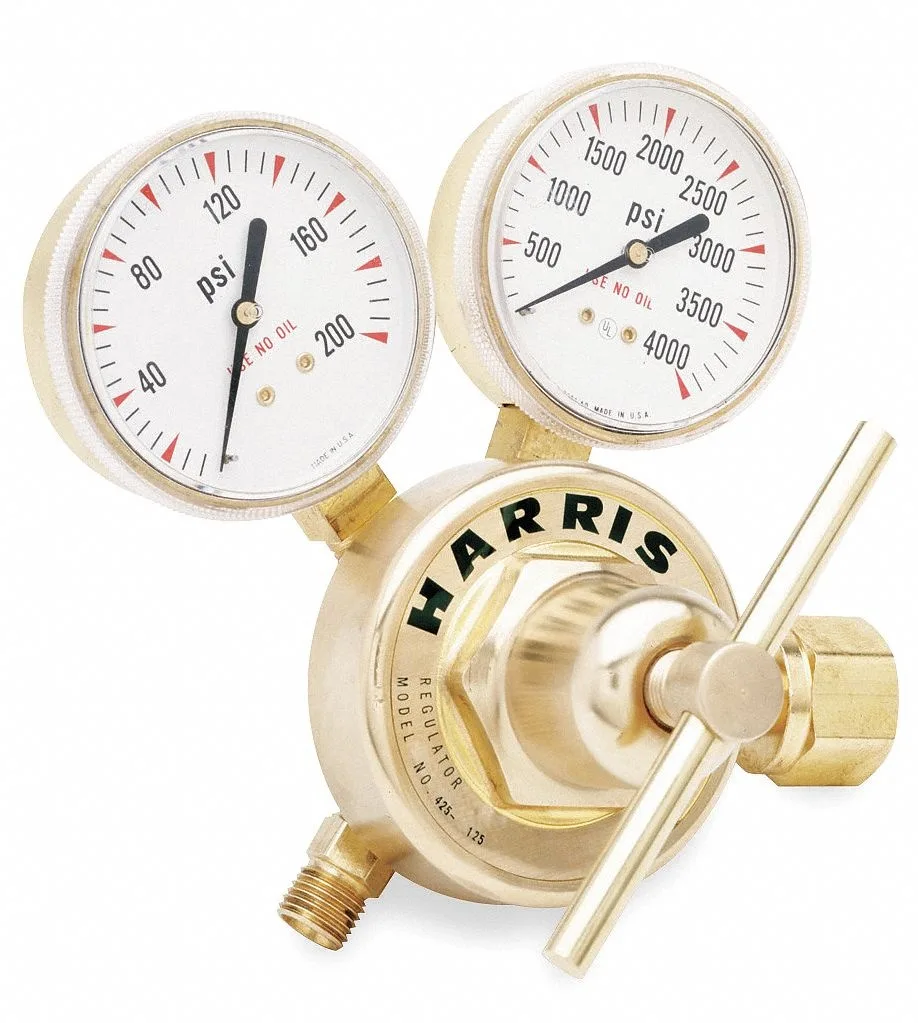

Chrome-plated brass gas regulator with dual gauges and T-handle control

Harris

Harris 425-125-580 Gas Regulator Argon Helium Nitrogen Single Stage

SKU CH-BY05-6FZ6W

Single-stage gas regulator controls argon, helium and nitrogen flow up to 125 psig with CGA 580 inlet

  • MaterialHAWA
  • TypeSingle Stage Cylinder
  • Precise flow control with single-stage design
  • Compatible with argon, helium and nitrogen gases
  • Chrome-plated brass body resists corrosion
  • CGA 580 inlet fits standard cylinders
  • Maximum outlet pressure rated at 125 psig

Harris 425-125-580 Gas Regulator

The Harris 425-125-580 is a single-stage gas regulator built for Argon, Helium and Nitrogen cylinders. It delivers a maximum outlet pressure of 125 psig from a 4,000 psig inlet gauge. The unit suits welders and technicians who need consistent flow control for shielding or inert gas applications.

Brass body with chrome plating and neoprene

The brass body carries a chrome-plated finish for corrosion resistance while the neoprene diaphragm manages pressure regulation. A T-handle provides manual adjustment. The inlet uses a male CGA 580 connection sized .965-14 NGO and the outlet presents a male 9/16-18 UNF fitting for standard hose attachment.

Replaces worn or mismatched single-stage regulators

This regulator upgrades setups where an older unit no longer holds steady outlet pressure or where the gas type or CGA fitting was incorrect. The jump is worth it when the current regulator leaks, drifts under load or cannot mate with a CGA 580 cylinder valve. It does not serve applications requiring two-stage pressure stability.

Highlights

  • Precise flow control with single-stage design
  • Compatible with argon, helium and nitrogen gases
  • Chrome-plated brass body resists corrosion
  • CGA 580 inlet fits standard cylinders
  • Maximum outlet pressure rated at 125 psig

Specifications

BrandHarris
MaterialHAWA
TypeSingle Stage Cylinder

Questions about this item

What outlet pressure does the CGA 580 single-stage regulator cap at?

The Harris 425-125-580 delivers a maximum outlet pressure of 125 psig for Argon, Helium and Nitrogen cylinders.

Which cylinder fitting and outlet thread does this model need?

It connects to a CGA 580 male inlet sized .965 In. -14 and provides a male 9/16 In. -18 UNF outlet.

How do you install the brass chrome-plated regulator without damaging the neoprene diaphragm?

Close the cylinder valve, attach the CGA 580 nut by hand then snug with a wrench, open the cylinder slowly, then turn the T-handle clockwise to set pressure.
