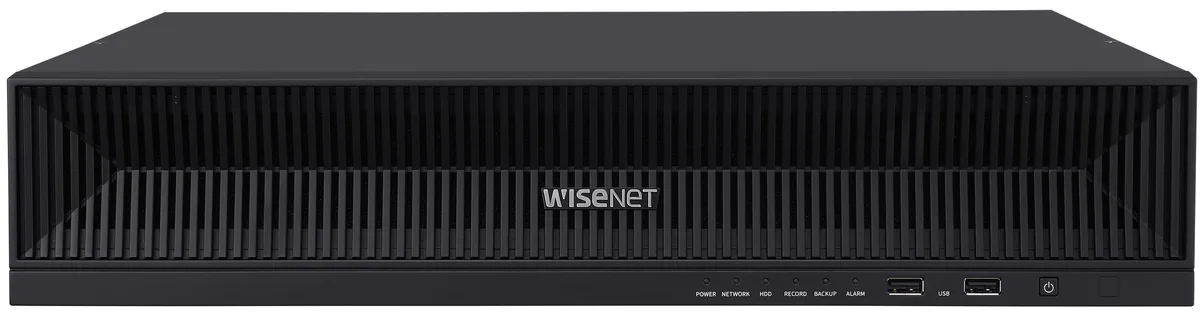

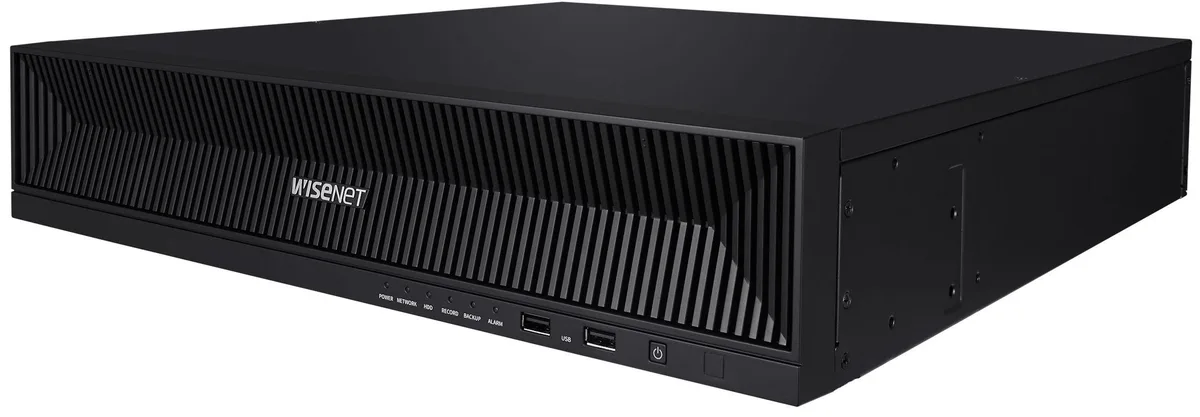

Black rectangular network video recorder with sixteen front PoE ports and 12 TB storage installed

Hanwha Techwin

Hanwha Techwin XRN-1620SB1 16-channel video recorder 12 TB

SKU CH-Q3PP-HEPZA

16-channel PoE recorder supports 8K cameras, H.265/H.264/MJPEG, dual-stream recording and 12 TB pre-installed storage expandable to 24 TB

  • StandardsPOE
  • Supported ProtocolsH.265, H.264, MJPEG compression
  • Network Interface2 x RJ-45
  • Ports16
  • Video Input16 x RJ-45
  • Video Output4K video out on HDMI monitor

Hard Drive 12 Terabyte Hard Drive

  • Records 16 channels simultaneously with 12 TB storage
  • Supports up to 32 MP camera resolution for detail
  • 16 PoE ports power cameras without extra wiring
  • H.265, H.264 and MJPEG codecs cut bandwidth needs
  • AI search works with Wisenet AI cameras for speed

16-channel 12 TB NVR with PoE

The Hanwha Techwin XRN-1620SB1 is a 16-channel network video recorder supplied with a 12 TB hard drive. It supports up to 32 MP camera resolution and records at a maximum of 140 Mbps. The unit includes 16 PoE ports for direct camera power and connection. It suits installers who need a single appliance for mid-size IP surveillance systems.

Plug-and-play PoE installation with ARB

Sixteen PoE ports allow cameras to be connected and powered without separate injectors or switches. Four internal SATA bays support up to 24 TB total capacity for storage expansion. Automatic Recovery Backup switches recording to a spare drive if the primary drive fails. The supplier notes that dynamic event support adds new camera event functions without a firmware update.

Sustained 140 Mbps recording with dual-stream

The recorder maintains a continuous 140 Mbps incoming bandwidth from up to 16 cameras. Dual-stream recording captures two resolutions or frame rates simultaneously to optimise storage. Playback reaches 32 Mbps for smooth multi-channel review. H.265, H.264 and MJPEG compression reduce long-term storage demand during 24/7 operation.

Highlights

  • Records 16 channels simultaneously with 12 TB storage
  • Supports up to 32 MP camera resolution for detail
  • 16 PoE ports power cameras without extra wiring
  • H.265, H.264 and MJPEG codecs cut bandwidth needs
  • AI search works with Wisenet AI cameras for speed

Specifications

BrandHanwha Techwin
ModelXRN-1620SB1
Part NumberXRN-1620SB1
StandardsPOE
Supported ProtocolsH.265, H.264, MJPEG compression
Network Interface2 x RJ-45
Ports16
Video Input16 x RJ-45
Video Output4K video out on HDMI monitor

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the recorder is capturing footage at the full 140 Mbps recording rate after setup?

Check the recording bitrate in the system status menu and verify each of the 16 PoE cameras shows an active video stream on the HDMI monitor output.

Which items are included and what must I purchase separately to use all 16 channels?

The unit includes a pre-installed 12 TB SATA hard drive and 16 PoE ports for cameras; you need to buy compatible IP cameras and an HDMI or VGA monitor.

Should I choose the 12 TB model or add more drives to reach the 24 TB maximum?

The 12 TB drive covers typical retention; add up to three more SATA drives inside the four-bay chassis if you need up to 24 TB total capacity.
