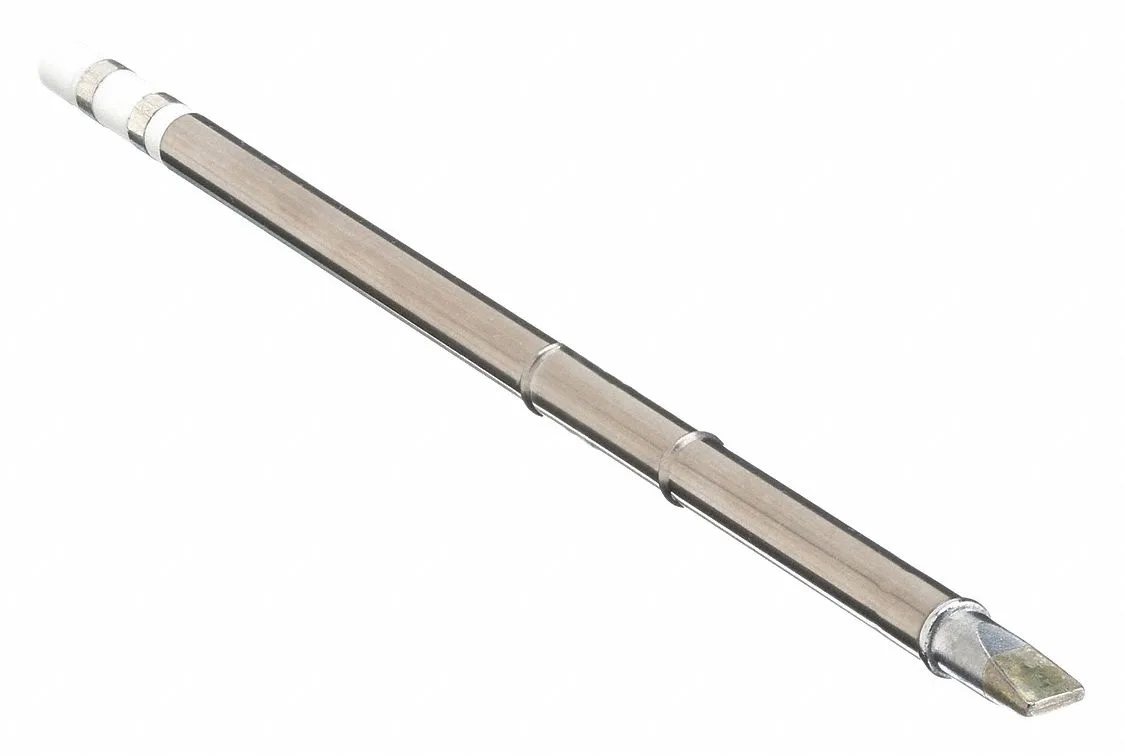

Hakko T15-D52 chisel soldering tip, silver metal, 5.2 mm wide by 8 mm long

Hakko

Hakko T15-D52 Soldering Tip Chisel 5.2mm x 8mm

SKU CH-4WB7-WPV1J

Chisel soldering tip, 5.2 mm wide by 8 mm long, rated to 840 °F for Hakko T15-series stations

  • TypeChisel
  • Chisel profile transfers heat efficiently across 5.2 mm width
  • 8 mm tip length reaches confined joints without obstruction
  • Maximum operating temperature 840 °F suits lead-free and standard alloys
  • Compatible with FM-2027 and FM-2028 handpieces for direct fit
  • Works with FM-202, FM-203, FM-204, FM-206, FP-101, FP-102, FX-950, FX-951 stations

Tip series and compatible stations

The Hakko T15-D52 is a chisel-type soldering tip built for the T15 series. It fits handpieces FM-2027 and FM-2028 and works with stations FM-202, FM-203, FM-204, FM-206, FP-101, FP-102, FX-950 and FX-951. The tip is intended for general soldering applications where a broad, flat face is preferred.

Thermal response under continuous use

The composite material delivers heat to the joint quickly and recovers temperature between joints during extended sessions. A maximum operating temperature of 840 degrees Fahrenheit provides headroom for lead-free alloys without overshooting sensitive components. Steady output is maintained across repeated cycles when paired with a compatible T15-series station.

Chisel width 5.2 mm

The 5.2 mm wide by 8 mm long chisel face with 1.2 mm thickness determines the contact area and heat volume available for each joint. This geometry suits through-hole pads, larger surface-mount pads and wire-to-terminal work. It is not suited for fine-pitch IC legs or dense SMD rework where a narrower tip is required.

Highlights

  • Chisel profile transfers heat efficiently across 5.2 mm width
  • 8 mm tip length reaches confined joints without obstruction
  • Maximum operating temperature 840 °F suits lead-free and standard alloys
  • Compatible with FM-2027 and FM-2028 handpieces for direct fit
  • Works with FM-202, FM-203, FM-204, FM-206, FP-101, FP-102, FX-950, FX-951 stations

Specifications

BrandHakko
TypeChisel

Questions about this item

How much heat does the 5.2 mm chisel tip reach at its 840 °F maximum operating temperature?

The tip is rated for a maximum operating temperature of 840 °F, so it delivers that level of heat when driven by a compatible station.

Which Hakko handpiece or station must I already own to use the T15-D52 tip?

It fits Hakko handpieces FM-2027 and FM-2028 and stations FM-202, FM-203, FM-204, FM-206, FP-101, FP-102, FX-950 and FX-951.

Will the 1.2 mm thick T15-D52 tip work with my older Hakko FX-951 station?

Yes, the FX-951 is listed as a compatible station for the T15 series tip.
