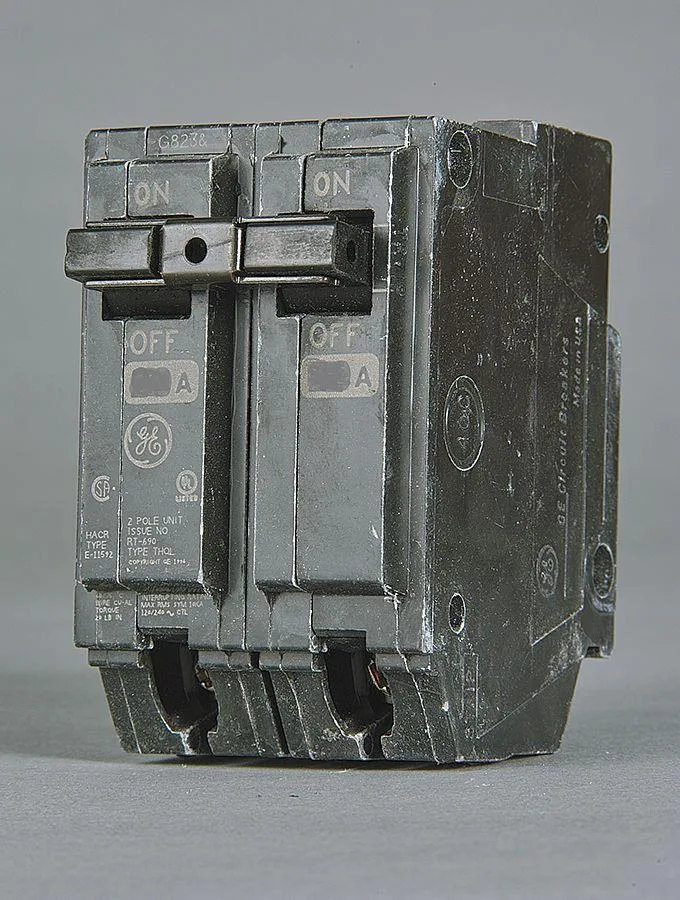

Grey GE THQL2180 two-pole breaker with toggle actuator

GE

GE THQL2180 Circuit Breaker 80A 2 Pole 120/240V AC

SKU CH-QXX9-KMT14

An 80 A two-pole miniature circuit breaker rated for 120/240 V AC with a 10 kA interrupting rating and plug-in mounting for Power Mark Gold load centers

  • 80 A continuous rating protects heavy 120/240 V circuits
  • 10 kA interrupting capacity clears faults on compatible panels
  • Two-pole design serves single-phase loads in Power Mark Gold centres
  • Plug-in mounting fits AQ lighting panels without tools
  • Compact 3.3 × 2 × 2.4 in frame suits 100 A frame spaces

Circuit Breaker for AQ Panels

The GE THQL2180 is a standard miniature circuit breaker rated at 80 amps and 120/240 volts AC. It fits single-phase Power Mark Gold load centers and AQ lighting panels using a plug-in mounting style. The two-pole design protects a pair of hot conductors in residential or light commercial distribution boards.

Interrupting Capacity and Voltage Limits

This breaker carries a maximum AIR rating of 10 kiloamperes at 120/240 volts AC. It has no DC voltage rating, so it must not be used on direct-current circuits. The 100-amp frame size sets the upper bound for the enclosure, and the 80-amp trip rating defines the continuous load limit.

Toggle Actuator and Lug Terminals

A front-mounted toggle provides manual on, off and trip-reset operation. The plug-in base snaps onto the panel bus without bolts, while the lug terminals accept standard copper or aluminium conductors. The moulded case measures 3.3 inches long, 2 inches wide and 2.4 inches deep for compatibility with AQ-series enclosures.

Highlights

  • 80 A continuous rating protects heavy 120/240 V circuits
  • 10 kA interrupting capacity clears faults on compatible panels
  • Two-pole design serves single-phase loads in Power Mark Gold centres
  • Plug-in mounting fits AQ lighting panels without tools
  • Compact 3.3 × 2 × 2.4 in frame suits 100 A frame spaces

Specifications

BrandGE

Questions about this item

Should I choose this 80 A two-pole breaker or a different amperage for my panel?

Select the 80 A version when your circuit is designed for 80 A; the frame size is 100 A so only the 80 A rating matches this specific THQL2180 model.

What does the 10 kA rating mean when the breaker is installed in a real panel?

It means the breaker can safely interrupt up to 10 kA of fault current at 120/240 V AC in a compatible Power Mark Gold or AQ load centre.

Does the plug-in mount work with any standard panel or only specific series?

The plug-in mount fits GE Power Mark Gold load centres and AQ lighting panels; it is not a universal fit for other brands' panelboards.
