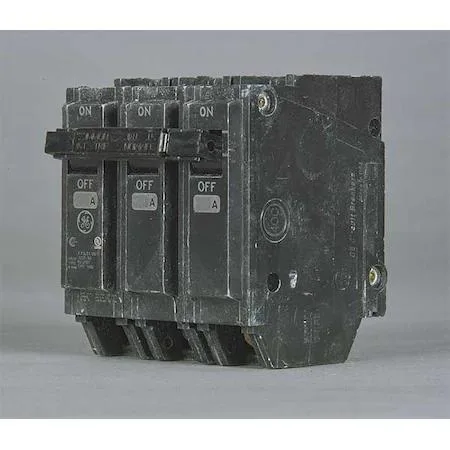

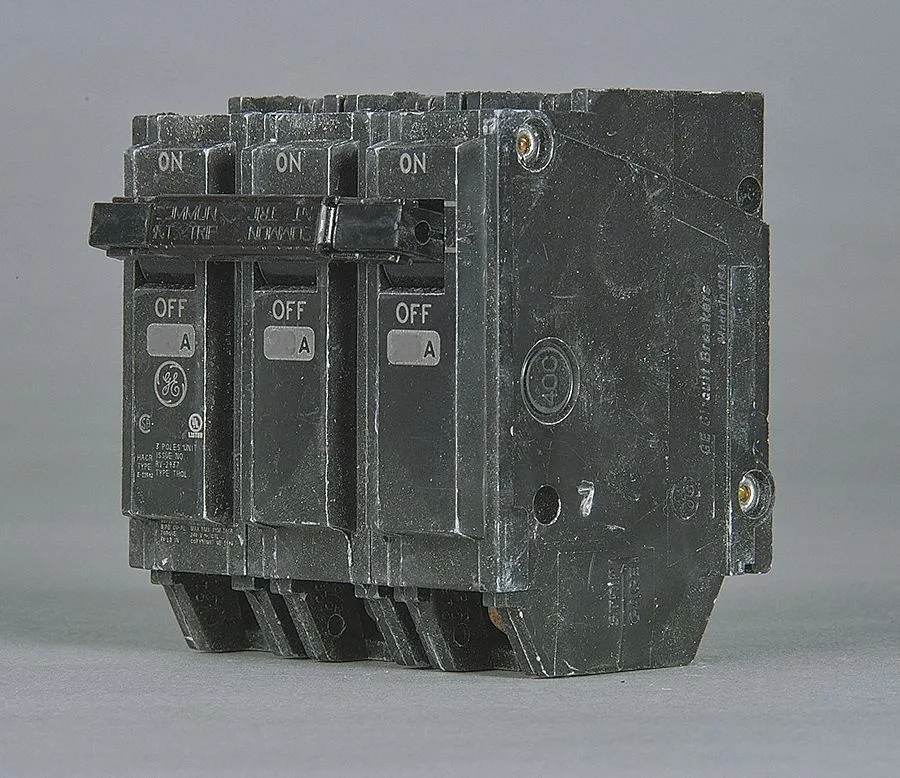

GE THHQL32060 three-pole plug-in breaker, grey toggle, compact frame

GE

GE THHQL32060 60A 3 Pole 240V AC Circuit Breaker

SKU CH-EDDB-G2YYQ

Three-pole miniature breaker rated 60 A at 240 V AC with 22 kA interrupting capacity for Power Mark Gold load centres

  • High interrupting capacity protects circuits up to 22 kA
  • 60 A three-pole design handles 120/240 V AC loads
  • Plug-in mounting fits Power Mark Gold and AQ panels
  • Compact 3.3 in frame saves panel space
  • Lug terminals provide secure cable connections

Miniature Circuit Breaker 60A 3 Pole

The GE THHQL32060 is a miniature circuit breaker rated at 60 amps with three poles for 120/240V AC systems. It belongs to the THHQL series and features a high interrupting capacity design. The plug-in mounting style fits compatible panelboards and load centers. A toggle actuator provides manual control for the circuit.

Max AIR Rating 22kA at 120/240V AC

The breaker delivers a maximum AIR rating of 22kA at 120/240V AC, which determines its ability to safely interrupt fault current. This interrupting capacity is the critical specification for matching the breaker to the available short-circuit current at the installation point. The unit uses lug terminals for wire connections and has a frame size designated as THQ.

For Power Mark Gold and AQ Panels

This breaker suits electricians and facility managers installing or replacing protection in GE Power Mark Gold load centers or AQ lighting panels. It is not for use in panels that require a different mounting style or series compatibility. Buyers needing DC voltage ratings or a different pole count should look elsewhere.

Highlights

  • High interrupting capacity protects circuits up to 22 kA
  • 60 A three-pole design handles 120/240 V AC loads
  • Plug-in mounting fits Power Mark Gold and AQ panels
  • Compact 3.3 in frame saves panel space
  • Lug terminals provide secure cable connections

Specifications

BrandGE

Questions about this item

What does the 22 kA interrupting rating mean when the breaker is installed in a panel?

It means the breaker can safely stop fault currents up to 22 000 amps at 120/240 V AC without damage.

What voltage and phase does the 3-pole design support in practice?

The three poles protect a 120/240 V AC three-phase circuit, with each pole switching one phase conductor.

Will the 3.3 in by 1 in by 2.4 in frame fit a Power Mark Gold load centre?

Yes, the THQ frame size and plug-in mounting are made for Power Mark Gold and AQ lighting panels.
