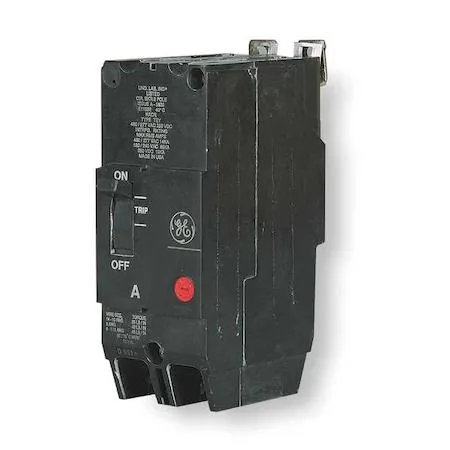

GE Bolt-On Circuit Breaker TEY2100 100A 2-Pole 277/480V AC

Purpose & fit

This GE TEY2100 is a bolt-on molded case circuit breaker rated at 100 A for 277/480 V AC systems. It installs directly into compatible GE AE lighting panels and provides two-pole protection for single-phase loads. The fixed thermal-magnetic trip unit operates at a 14 kA interrupting rating, making it suitable for standard commercial and light-industrial distribution. Buyers needing a higher frame rating or a different mounting style will require another product.

Sustained-load behaviour

Under continuous operation the breaker carries its 100 A rating within a 125 A frame and trips thermally on prolonged overloads. The magnetic instantaneous trip is fixed at 200 A, so short-circuit currents above that level open the contacts quickly without nuisance tripping during motor inrush. The 14 kA AIR at 277/480 V AC ensures safe interruption of available fault current in typical panelboard applications. DC circuits up to 250 V are also covered by the same trip mechanism.

Thermals, noise & power
