Garystat G721 Non-Programmable Heat Pump Thermostat 2 Heat/1 Cool with Humidity Monitor
Non-programmable heat-pump thermostat with 2 heat/1 cool stages, large green-backlit LCD and real-time humidity monitor
- TypeTemperature Sensor, Heating and Cooling, Push Button
- Size/Dimensions4.92 in x 0.98 in x 3.74 in
- ColorGreen
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactModern, 24 volts_of_alternating_current
- Large green LCD for clear reading in any light
- Non-programmable 2 heat/1 cool for simple heat pump control
- Built-in humidity and temperature monitor tracks indoor conditions
- Dual 24 VAC or 2 AAA battery power with low-battery alert
- Wall-mount design fits standard installations with separate B & O terminals
Home Heat Pump Thermostat

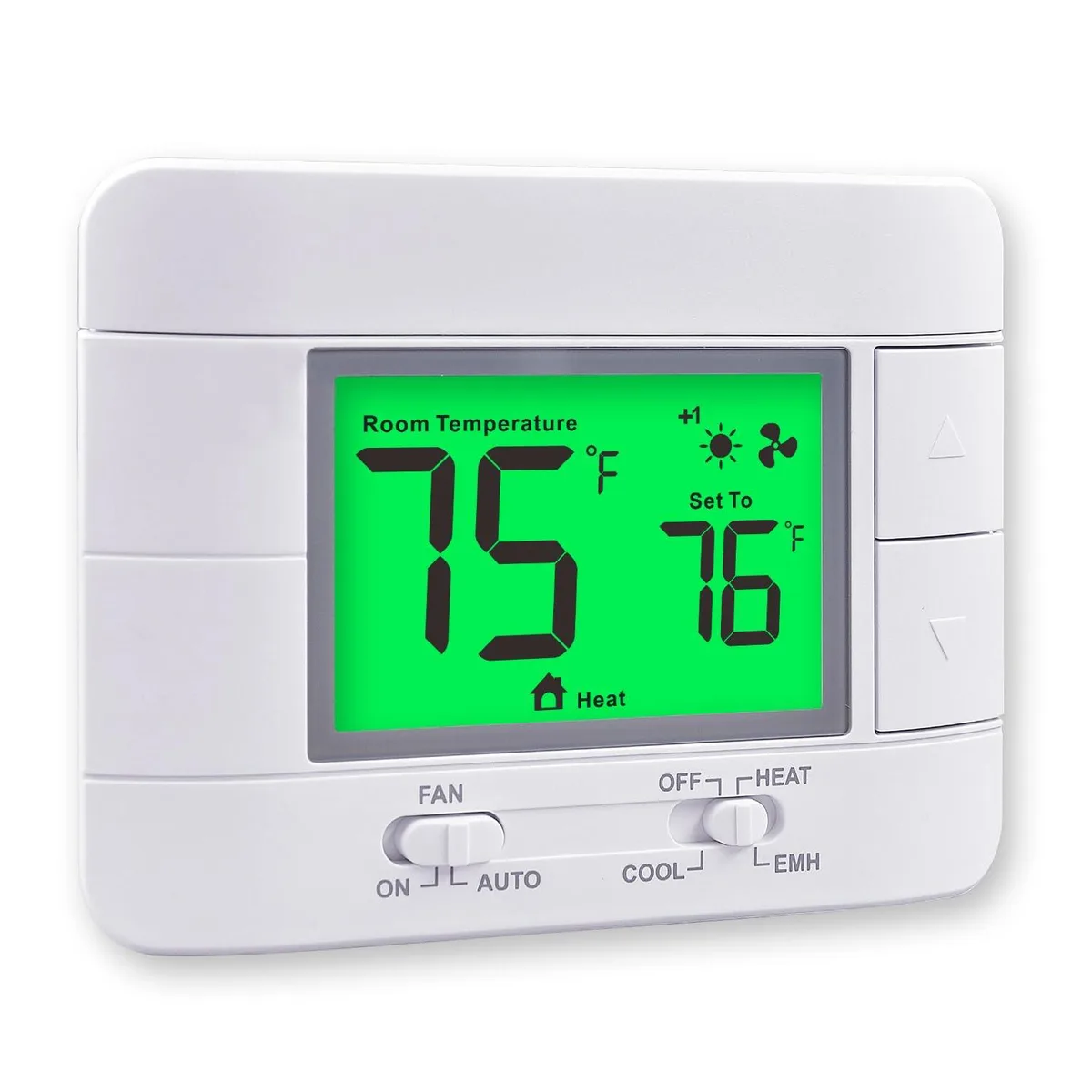

The Garystat G721 is a non-programmable wall-mounted thermostat designed for residential heat pump systems with two heating stages and one cooling stage. It also supports conventional forced-air gas, oil or electric furnaces when the heat pump mode is turned off. A large green backlit LCD shows both temperature and humidity readings for quick reference.
Replaces Basic Two-Stage Controls
This unit upgrades older thermostats that lack separate B and O terminals or independent heating and cooling swing adjustments. The jump is worth it when you need electric or gas configuration flexibility, room temperature calibration and a three-minute compressor delay without running a C-wire. It does not suit 110-240 V line-voltage systems such as electric baseboard heat or RV installations.
Steady Operation Over Time
Dual power from 24 VAC or two AAA batteries keeps the display and relays active during power interruptions, while the low-battery indicator warns before performance drops. Separate heating and cooling cycle-rate settings prevent short-cycling during long heating or cooling calls, and the built-in compressor delay protects the outdoor unit on every restart.
Highlights
- Large green LCD for clear reading in any light
- Non-programmable 2 heat/1 cool for simple heat pump control
- Built-in humidity and temperature monitor tracks indoor conditions
- Dual 24 VAC or 2 AAA battery power with low-battery alert
- Wall-mount design fits standard installations with separate B & O terminals
Specifications
| Type | Temperature Sensor, Heating and Cooling, Push Button |
|---|---|
| Brand | Garystat |
| Model | G721 |

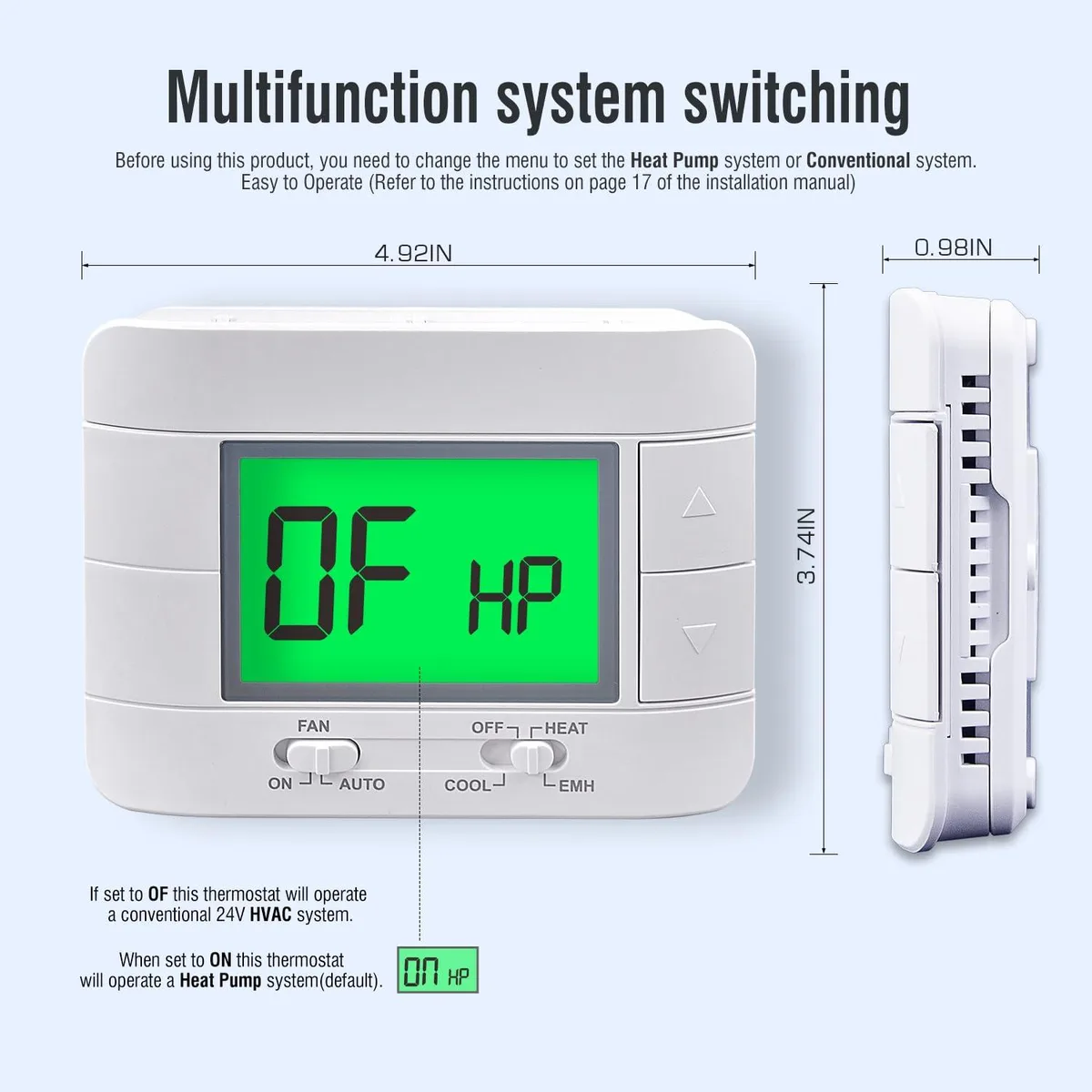

| Size/Dimensions | 4.92 in x 0.98 in x 3.74 in |
| Color | Green |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Modern, 24 volts_of_alternating_current |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Item Count | 12 pack |
| Selling Unit | 1, Temperature Sensor |
| Features | Heat Pump, Heat Pump Thermostat, Garystat |
| Part Number | G721 |
Questions about this item
What wall space is needed for the 4.92 in x 3.74 in thermostat?
The unit measures 4.92 in wide by 3.74 in high and 0.98 in deep, so a flat wall area at least that size with clearance for wiring behind it is required.
How is the thermostat wired and where do installers often go wrong?
Connect 24 VAC wires to the labelled terminals — separate B and O terminals are provided — and insert 2 AAA batteries for backup; the common mistake is applying 110-240 V line voltage, which the thermostat does not support.
What ongoing maintenance does the thermostat need?
Replace the 2 AAA batteries when the low-battery indicator appears; the front-access compartment allows a quick swap without removing the thermostat from the wall.
