White rectangular wall-mounted garage door opener keypad with illuminated square button, lock and light controls

Garage Door Opener Wall Mount Compatible with Liftmaster 41A5273-1 78LM

SKU CH-QSXR-ANMWT

Wired replacement keypad controls LiftMaster, Chamberlain and Craftsman openers made after 1995 with Green, Red or Purple Learn buttons, adding lock and light functions

  • Weight0.20062065842 pounds
  • Powerfalse
  • Controls LiftMaster, Chamberlain and Craftsman openers made after 1995
  • Illuminated main button lets you operate the door safely in darkness
  • Lock button disables portable remotes for extra security
  • Light button toggles opener lighting without a remote
  • Kit includes backboard, panel, instructions and three expansion screws

Replacement Wall Mount Keypad

This wired control panel replaces the original push-button station on LiftMaster, Chamberlain and Craftsman garage door openers built after 1995. It supports Green, Red and Purple Learn Button systems and works with AC screw, belt and chain drive units. The kit includes the backboard, circuit panel, three expansion screws and an instruction sheet.

Wired Installation and Daily Use

Power must be disconnected before the old panel is removed and the two low-voltage wires are passed through the back-cover hole and secured to the terminals. The large illuminated square button opens, closes or stops the door, a separate Light button toggles the opener lamp, and a Lock button disables all portable remotes for added security. Red and white connecting cords are not supplied.

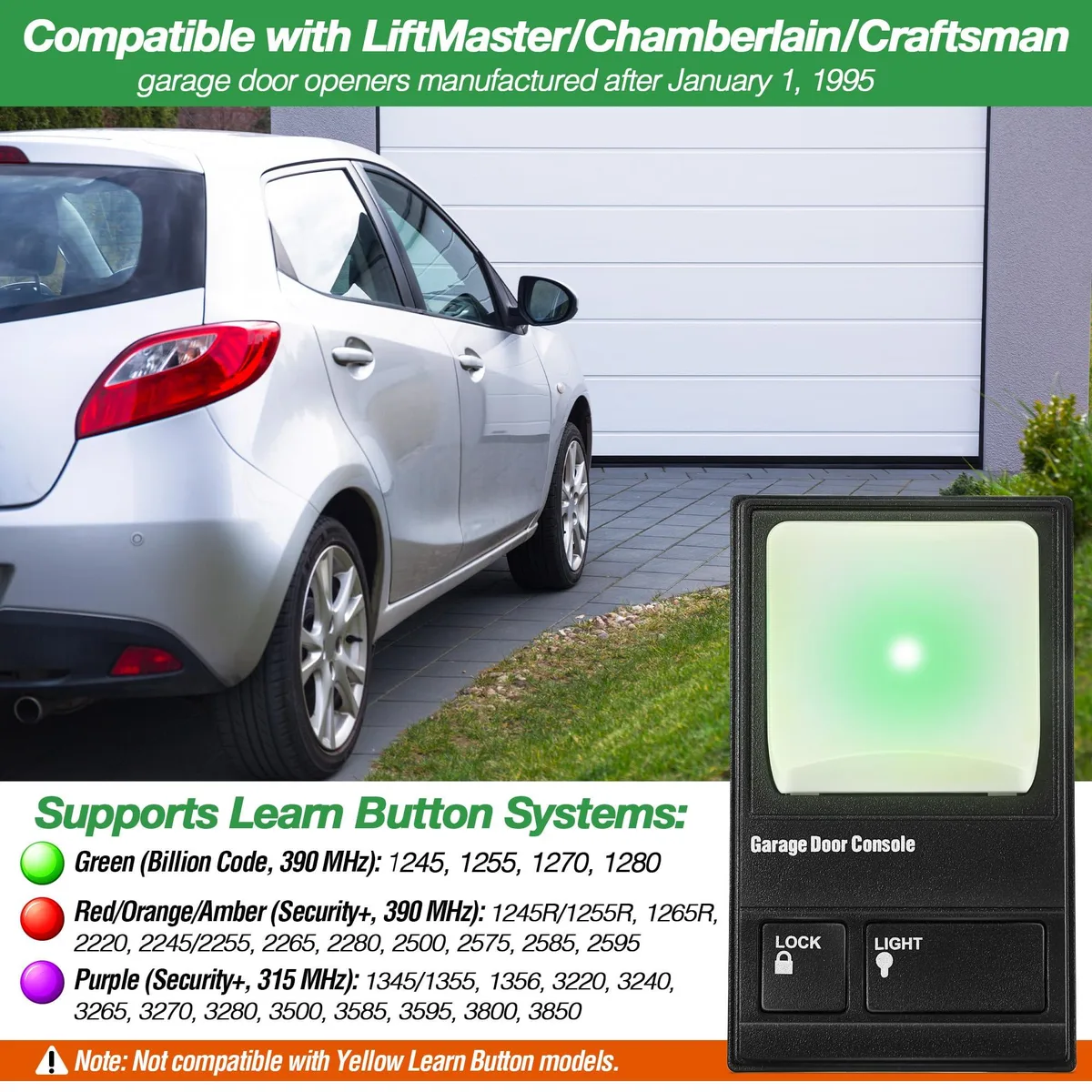

Learn Button Compatibility Limits

The panel will not pair with openers that use a Yellow Learn Button, so owners of those newer models must choose a different control. Only the three specified Learn Button colours are supported, and the device draws its operating power from the opener itself rather than an independent supply.

Highlights

  • Controls LiftMaster, Chamberlain and Craftsman openers made after 1995
  • Illuminated main button lets you operate the door safely in darkness
  • Lock button disables portable remotes for extra security
  • Light button toggles opener lighting without a remote
  • Kit includes backboard, panel, instructions and three expansion screws

Specifications

Weight0.20062065842 pounds
Powerfalse

Questions about this item

Does this wall mount work with a Purple Learn Button opener made after 1995?

Yes, it supports Green, Red, and Purple Learn Button systems on LiftMaster, Chamberlain and Craftsman openers manufactured after January 1, 1995; Yellow Learn Button models are not supported.

What hardware is included for mounting the back cover to the wall?

The kit supplies three expansion screws for the back cover; you must provide the red and white low-voltage wires yourself.

Which step in the install guide is most often missed?

Power must be disconnected before you start, and the old push button or control panel has to be removed before the new back cover is mounted.
