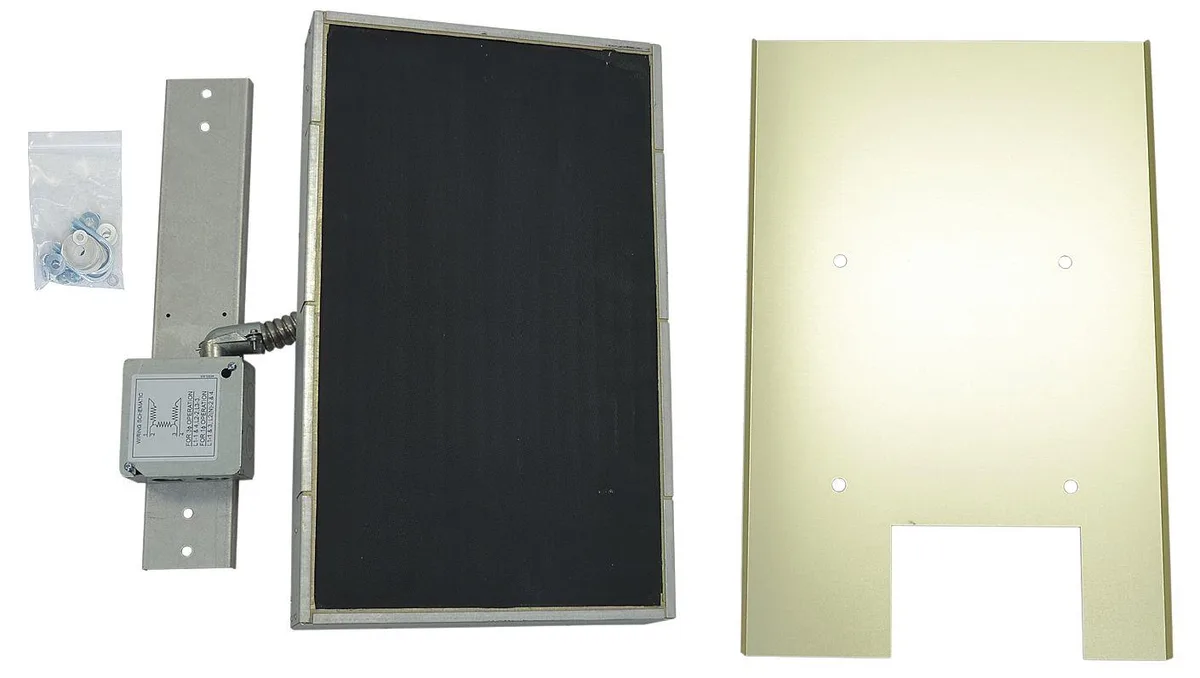

Rectangular steel frame infrared heater element, 27 inches long, black quartz cloth surface, mounting hardware included

Fostoria

Fostoria 64337-051 IR Heater Element 480V 27in

SKU CH-9JD4-S1M59

An infrared heater element delivering 4,300 watts at 480 volts with a 27-inch steel frame for compatible HVAC systems

  • 480 V AC power suits industrial three-phase supply
  • 4 300 W output delivers high-intensity infrared heat
  • 27 in emitter length covers broad work areas
  • Steel frame with refractory board withstands thermal cycling
  • ETL listed for US and Canada safety compliance

Fostoria 480V Infrared Heater Element

The Fostoria 64337-051 is a 480V AC infrared heater element designed for industrial heating applications. It delivers a 4,300W output using a steel frame, black quartz cloth, cement bond, refractory board, and resistance wire construction. The panel measures 27 inches long, 12 inches wide, and 3 inches deep for targeted radiant heat.

Compatibility and Installation Checks

Verify your supply provides 480V AC and can support either 1-phase at 8.9A or 3-phase at 5.2A operation. Confirm the mounting location accommodates the 27 by 12 inch panel footprint and 3 inch depth. This element is specified for use with the FHK-648-3A heater model; ensure your existing unit matches this requirement before ordering.

Thermal Output and Electrical Draw

In normal operation the emitter produces 4,300W of infrared heat at the rated voltage and amperage. The refractory board and cement bond construction contain the high-temperature resistance wire within the steel frame. Power consumption follows the 5.2A three-phase or 8.9A single-phase ratings with no moving parts to generate mechanical noise.

Highlights

  • 480 V AC power suits industrial three-phase supply
  • 4 300 W output delivers high-intensity infrared heat
  • 27 in emitter length covers broad work areas
  • Steel frame with refractory board withstands thermal cycling
  • ETL listed for US and Canada safety compliance

Specifications

BrandFOSTORIA

Questions about this item

Does the Fostoria 64337-051 ship with the mounting hardware included or must I order it separately?

The element panel assembly and mounting hardware are both included in the box, so no separate hardware purchase is required.

The specs list both 5.2 A and 8.9 A — which figure applies to a single-phase 480 V supply?

On a single-phase 480 V connection the element draws 8.9 A; the 5.2 A rating is for three-phase operation.

What does the 4,300 W rating mean for heat output once the emitter is installed in a 27 in panel?

At 480 V the panel delivers 4,300 W of infrared heat, reaching full output within seconds of power-up.
