Red flat cylinder DZF-63-250-P-A 164090 in box

Festo

Festo DZF-63-250-P-A 164090 flat cylinder

SKU CH-9YD5-Q02CC MPN DZF-63-250-P-A

Flat cylinder with 63 mm bore and 250 mm stroke for pneumatic automation tasks

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact flat cylinder design saves installation space
  • 63 mm bore delivers strong linear force
  • 250 mm stroke covers long travel needs
  • Festo engineering ensures reliable pneumatic performance
  • Part 164090 simplifies ordering and maintenance

Flat Cylinder for Pneumatic Testing

The Festo DZF-63-250-P-A is a flat cylinder designed for use as test equipment in pneumatic systems. It carries the manufacturer part number 164090 and is supplied new in a single pack. The unit features a red finish and is sold by the box. This component suits maintenance and assembly tasks that require a compact linear actuator.

Suits Pneumatic Test Rigs Not General Electrical

Technicians building or servicing pneumatic test rigs will find this cylinder matches the specified bore and stroke requirements. Electricians focusing on wiring, conduit or cable installation will not use this part because it is a pneumatic actuator rather than an electrical tool. Buyers who need a different bore size or stroke length should look at other models in the range.

63 mm Bore and 250 mm Stroke Define Fit

The critical specification is the 63 mm bore combined with a 250 mm stroke, which determines whether the cylinder fits the existing mounting pattern and delivers the required travel. Verify these two dimensions against your system drawings before ordering. The red colour and boxed packaging are secondary details that do not affect compatibility.

Highlights

  • Compact flat cylinder design saves installation space
  • 63 mm bore delivers strong linear force
  • 250 mm stroke covers long travel needs
  • Festo engineering ensures reliable pneumatic performance
  • Part 164090 simplifies ordering and maintenance

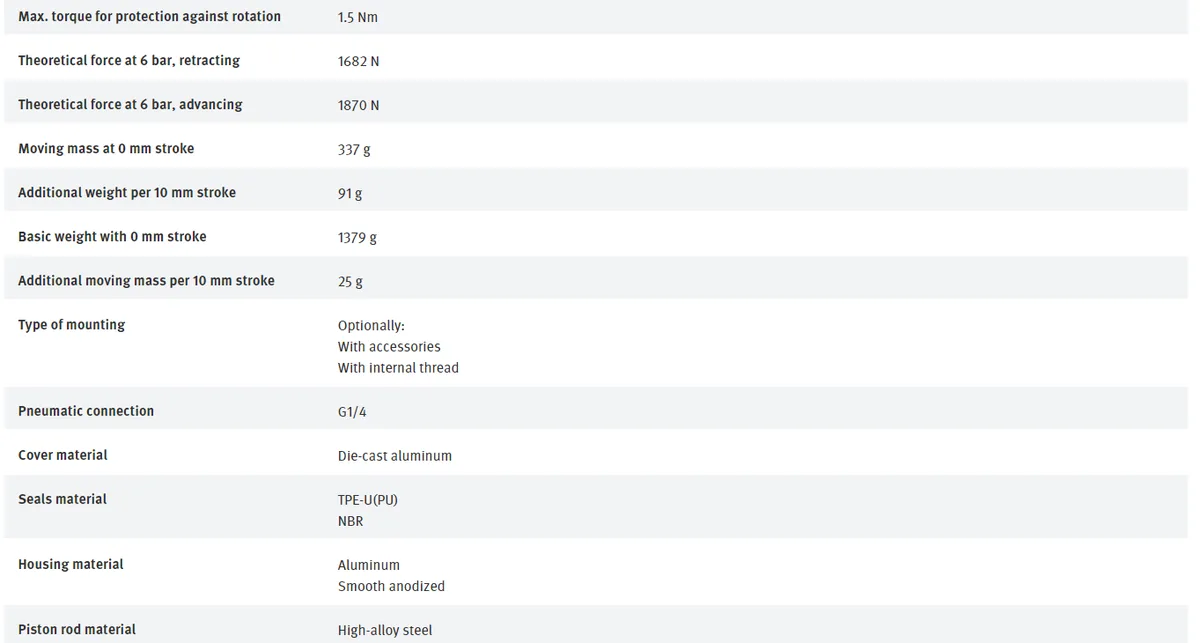

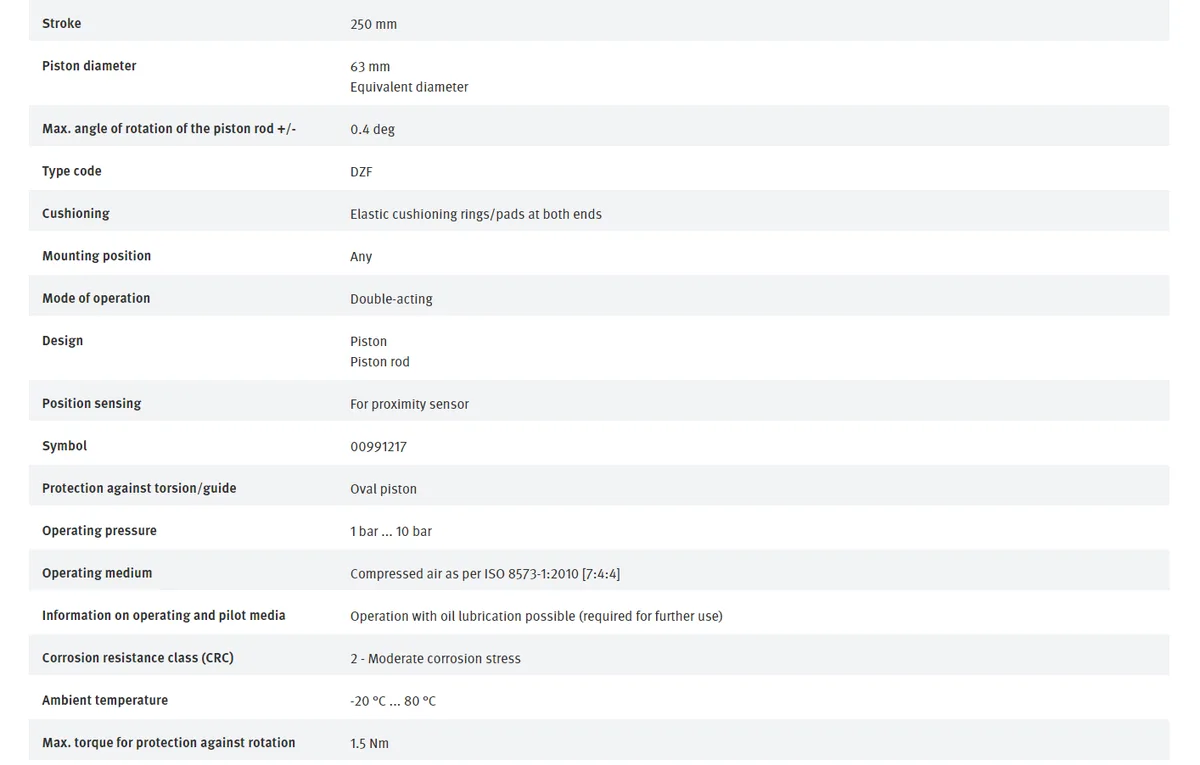

Specifications

BrandFESTO
ModelDZF-63-250-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What is the bore size of the DZF-63-250-P-A flat cylinder?

The bore size is 63 mm, as indicated by the model designation DZF-63-250-P-A.

Does the cylinder generate noticeable heat or noise during continuous operation?

As a pneumatic flat cylinder, it produces minimal heat and low noise during sustained use.

What pneumatic fittings or tubing are required to connect this cylinder?

Standard pneumatic fittings and tubing compatible with the cylinder's port size are needed for installation.
