Red flat cylinder DZF-50-250-P-A in box

Festo

Festo DZF-50-250-P-A 164076 Flat Cylinder electrician tool

SKU CH-ES6Q-ABQFR MPN DZF-50-250-P-A

A flat cylinder for pneumatic test equipment, supplied in a single red box

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 50 mm bore for compact pneumatic force
  • 250 mm stroke delivers extended linear travel
  • Flat cylinder profile fits tight machine spaces
  • Festo precision engineering ensures reliable actuation
  • Part 164076 simplifies ordering and maintenance

Compact Flat Cylinder for Pneumatic Automation

The Festo DZF-50-250-P-A is a flat-profile pneumatic cylinder designed for linear motion tasks in automation and assembly systems. Its compact form suits machine builders and maintenance engineers who need reliable actuation in restricted spaces. The unit arrives new and ready for integration into existing pneumatic circuits.

Integration Requirements and Space Savings

This cylinder mounts directly onto machine frames using standard Festo mounting patterns, requiring compressed air supply and suitable fittings. The flat body profile frees up valuable installation depth compared to round-body alternatives, allowing tighter stacking of actuators in multi-axis modules. No additional electrical wiring is needed for the pneumatic version.

Operating Characteristics

In normal cycling the cylinder runs on clean, lubricated or unlubricated compressed air within the manufacturer's specified pressure range. The sealed design keeps internal friction low, resulting in quiet operation and minimal heat buildup during repeated strokes. Air consumption scales with cycle frequency and load, keeping energy use predictable for system sizing.

Highlights

  • 50 mm bore for compact pneumatic force
  • 250 mm stroke delivers extended linear travel
  • Flat cylinder profile fits tight machine spaces
  • Festo precision engineering ensures reliable actuation
  • Part 164076 simplifies ordering and maintenance

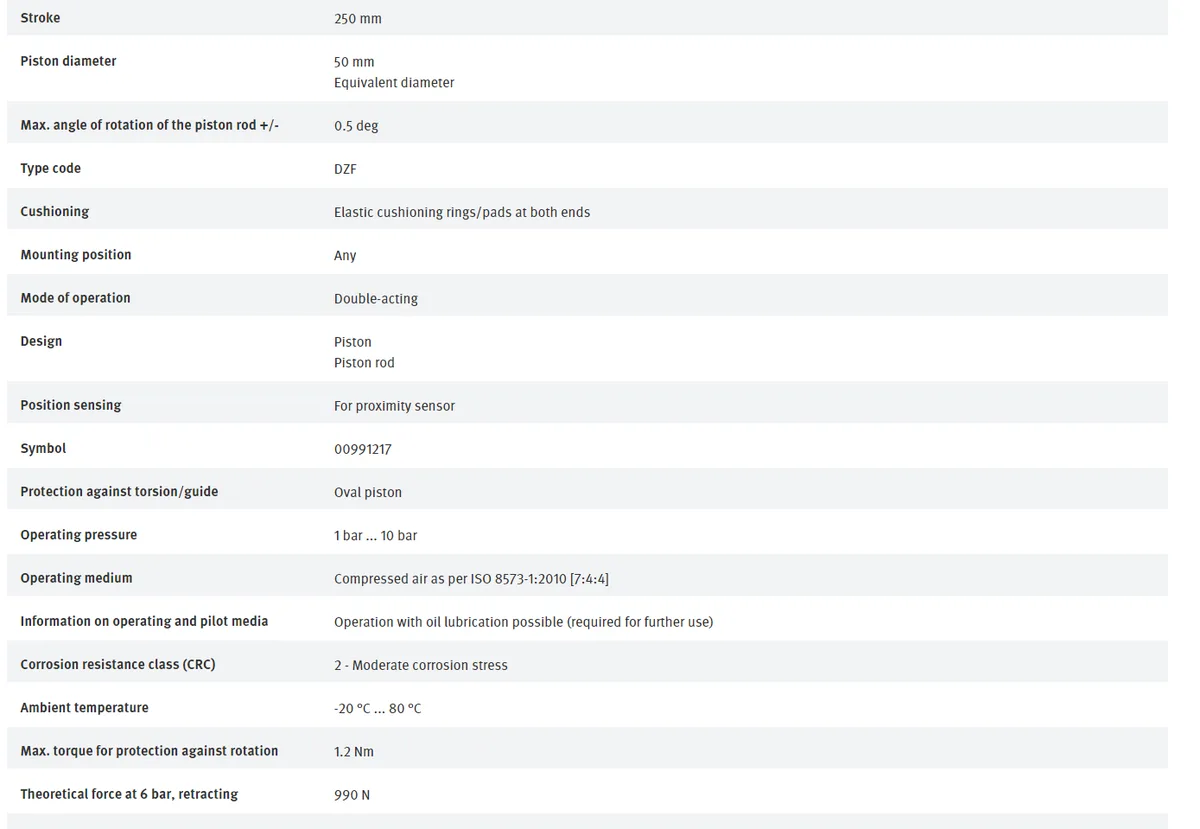

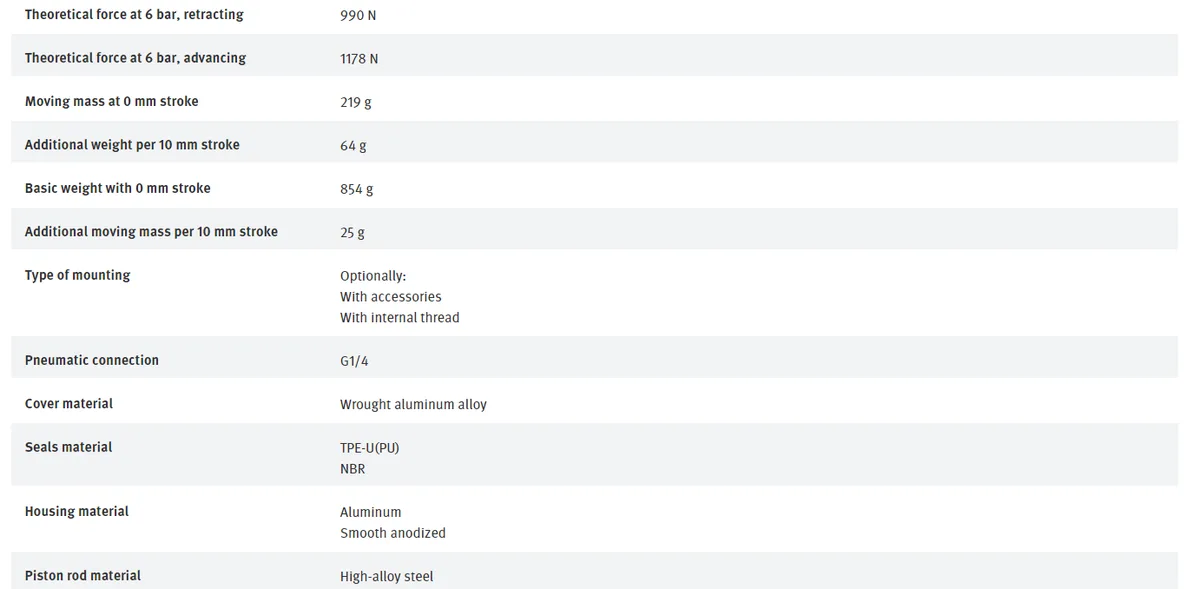

Specifications

BrandFESTO
ModelDZF-50-250-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What stroke length limits the travel of the DZF-50-250-P-A cylinder?

The cylinder has a 250 mm stroke, which defines the maximum linear travel available during sustained operation

How much compressed air does the flat cylinder consume when cycling continuously?

Air consumption depends on operating pressure and cycle rate; the unit itself has no integrated compressor or motor, so heat and noise come from the external supply system

Which mounting accessories must be on hand before installing the 164076 flat cylinder?

The cylinder uses the standard DZF series mounting pattern; you will need compatible flange or foot brackets, piping and fittings matched to the port thread, and a filtered, regulated air supply
