Red Festo flat cylinder model DZF-40-40-P-A 164055

Festo

Festo DZF-40-40-P-A 164055 Flat Cylinder electrician tool

SKU CH-3PDN-1GK0B MPN DZF-40-40-P-A

A compact flat cylinder for pneumatic positioning tasks, supplied new in a single box

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Flat cylinder design fits tight electrical enclosures
  • Model DZF-40-40-P-A identifies the exact replacement part
  • Festo brand delivers industrial-grade pneumatic reliability
  • Red colour coding enables quick visual identification on site
  • Supplied as a single unit in a protective box

Flat cylinder for pneumatic systems

The Festo DZF-40-40-P-A is a flat-profile pneumatic cylinder designed for automation tasks where space is restricted. Its compact form allows installation in tight machine frames without sacrificing stroke length. The unit is supplied new and ready for integration into existing compressed-air circuits.

Suited for compact linear motion.

Engineers building pick-and-place units, clamping fixtures or short-stroke actuators will value the low-profile design. Applications that require heavy thrust, long travel or rotary movement should consider alternative cylinder types better matched to those demands.

40 mm bore defines force and mounting

The 40 mm bore diameter determines the theoretical force output at a given pressure and fixes the standard mounting pattern for accessories. Verify that the available supply pressure and required load match this bore size before specifying the cylinder.

Highlights

  • Flat cylinder design fits tight electrical enclosures
  • Model DZF-40-40-P-A identifies the exact replacement part
  • Festo brand delivers industrial-grade pneumatic reliability
  • Red colour coding enables quick visual identification on site
  • Supplied as a single unit in a protective box

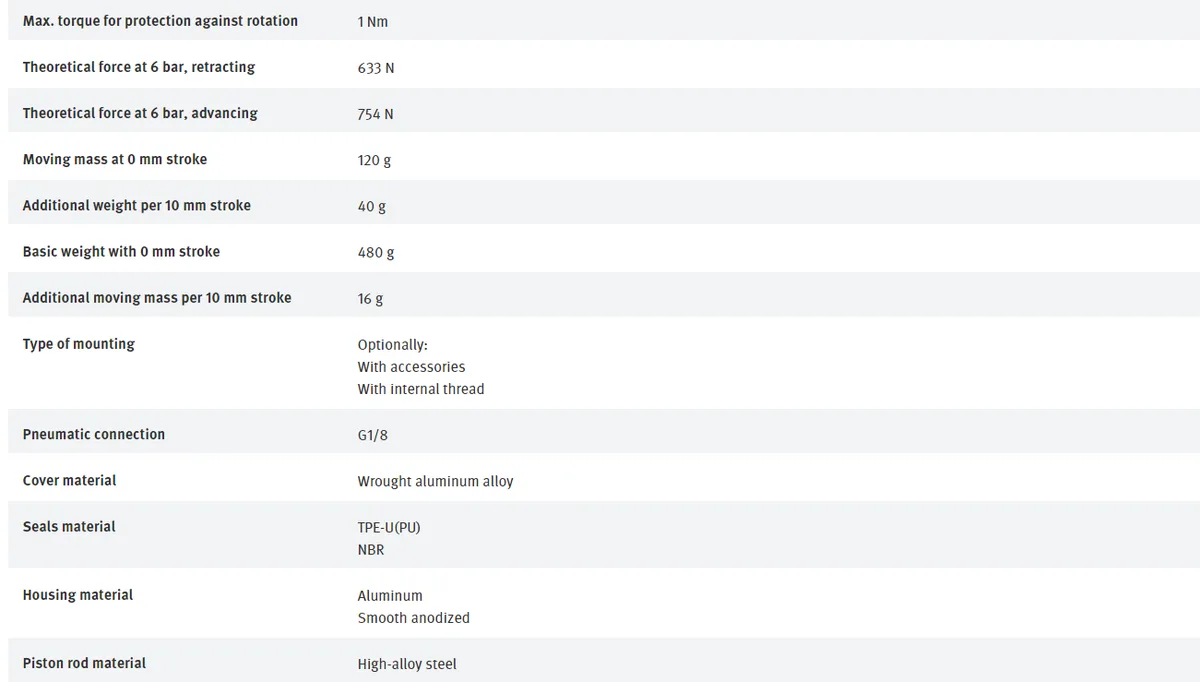

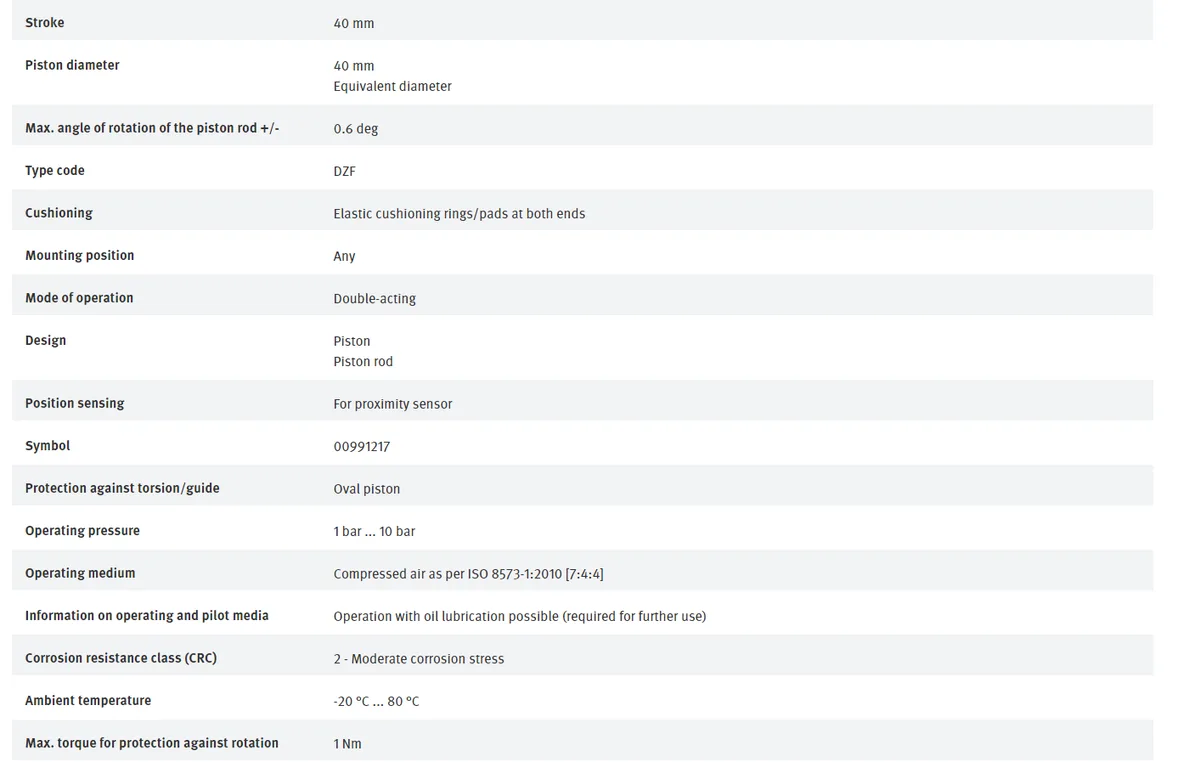

Specifications

BrandFESTO
ModelDZF-40-40-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What pneumatic pressure supply is required for the DZF-40-40-P-A flat cylinder to operate?

The cylinder needs a compressed-air source regulated to the working pressure range specified for Festo 40 mm bore flat cylinders, typically 2 to 8 bar, with clean, dry air.

Can the 164055 flat cylinder share existing Festo mounting brackets and tubing from older 40 mm bore cylinders?

Yes, the DZF-40-40-P-A uses the standard 40 mm bore mounting pattern and G1/8 ports, so it fits legacy brackets and push-in fittings without adapters.

How can I verify the cylinder is cycling correctly after installation?

Pressurise the system, then confirm smooth full-stroke extension and retraction at the set speed, listen for air leaks at the ports, and check that the piston rod moves without binding or excessive side play.
