Red Festo flat cylinder model DZF-32-50-A-P-A in box

Festo

Festo DZF-32-50-A-P-A 161266 flat cylinder electrician tool

SKU CH-9CP1-R427B MPN DZF-32-50-A-P-A

A flat cylinder with 32 mm bore and 50 mm stroke for pneumatic automation systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Flat cylinder design enables compact installation in tight spaces
  • 32 mm bore diameter provides precise pneumatic force control
  • 50 mm stroke length delivers consistent linear motion
  • Festo engineering ensures reliable performance for electrical applications
  • Manufacturer part number 161266 confirms exact component specification

Flat cylinder for pneumatic systems

The Festo DZF-32-50-A-P-A is a flat-profile pneumatic cylinder built for linear motion in automation setups. Its compact 32 mm bore and 50 mm stroke suit confined installations where a standard round cylinder will not fit. The unit arrives new in a single pack under part number 161266.

Suited for space-limited automation

Engineers specifying motion in tight machine frames will match the flat form factor to narrow clearances. Teams needing longer travel, higher force or a different mounting pattern should review alternative cylinder series. The three-year parts and one-year labour coverage supports planned maintenance cycles.

32 mm bore and 50 mm stroke define fit

These two dimensions determine whether the cylinder clears the available envelope and delivers the required displacement. Verify both figures against your design drawings before ordering; no other specification in the data overrides this mechanical constraint.

Highlights

  • Flat cylinder design enables compact installation in tight spaces
  • 32 mm bore diameter provides precise pneumatic force control
  • 50 mm stroke length delivers consistent linear motion
  • Festo engineering ensures reliable performance for electrical applications
  • Manufacturer part number 161266 confirms exact component specification

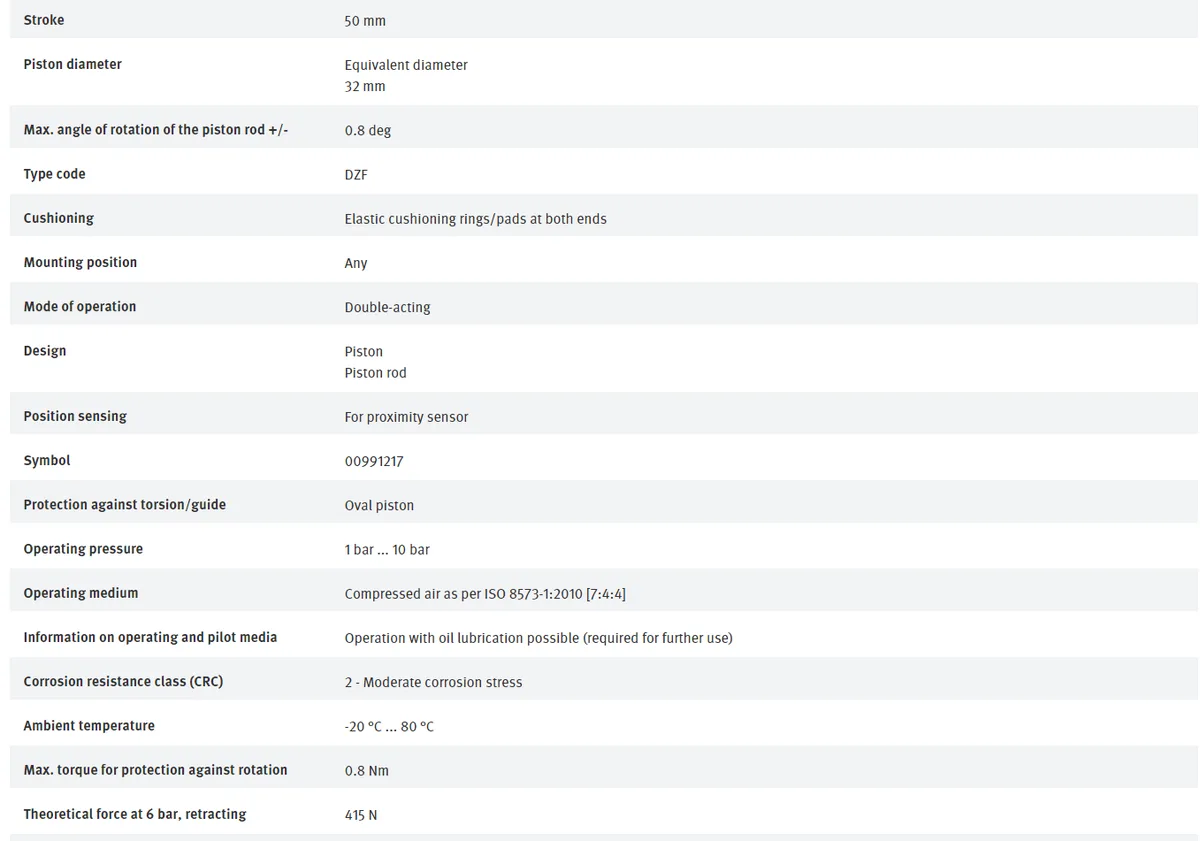

Specifications

BrandFESTO
ModelDZF-32-50-A-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How can I confirm the DZF-32-50-A-P-A flat cylinder is operating correctly after installation?

Verify smooth extension and retraction at the rated stroke, listen for abnormal air leakage, and check that the piston rod moves without binding or excessive side load.

What components are included with the 161266 flat cylinder and what must be sourced separately?

The box contains one complete cylinder unit; mounting brackets, fittings, tubing and position sensors are not included and must be purchased separately.

Which bore and stroke combination should I select for the DZF series flat cylinder?

Choose the 32 mm bore with 50 mm stroke when your application requires that specific force and travel; other bore or stroke sizes are different part numbers.
