Red Festo round cylinder DSNU-63-100-P-A 196014

Festo

Festo DSNU-63-100-P-A 196014 Round Cylinder

SKU CH-FMJA-MT2TM MPN DSNU-63-100-P-A

DSNU-63-100-P-A 196014 round cylinder with 63 mm bore and 100 mm stroke for pneumatic automation

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Round cylinder with 100 mm stroke for precise linear motion
  • 63 mm bore diameter delivers strong force output
  • Festo manufacturing ensures reliable pneumatic performance
  • Red finish provides clear visibility in workshop environments
  • New condition guarantees full factory specification compliance

Pneumatic round cylinder

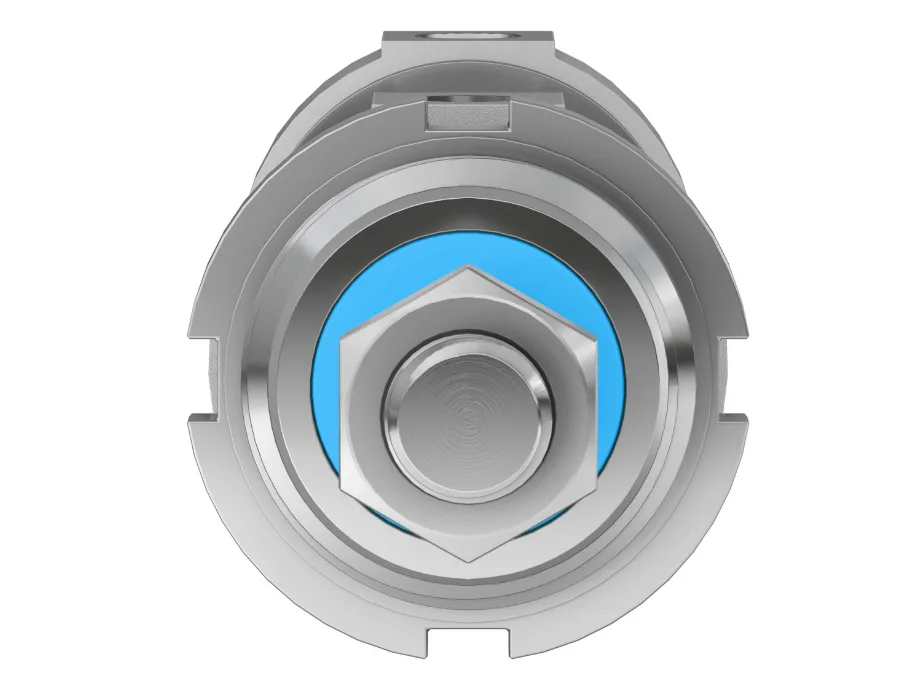

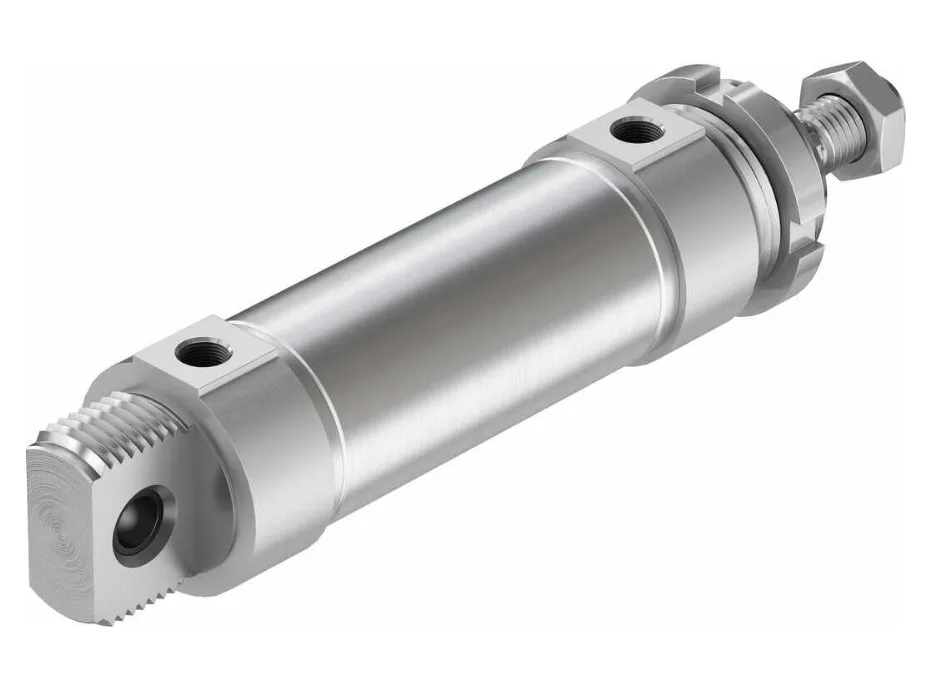

The Festo DSNU-63-100-P-A is a double-acting round cylinder designed for linear motion in automated systems. It has a 63 mm bore and a 100 mm stroke, supplied new in a single pack under part number 196014.

Suited for linear automation

This cylinder fits machines that need a 63 mm bore and 100 mm stroke with standard pneumatic ports. It is not for applications requiring a different bore diameter, a longer or shorter stroke, or a non-pneumatic actuation method.

Bore and stroke define fit

The 63 mm bore and 100 mm stroke are the critical dimensions that determine whether this cylinder matches the mechanical design. Verify these two figures against your assembly drawings before ordering.

Highlights

  • Round cylinder with 100 mm stroke for precise linear motion
  • 63 mm bore diameter delivers strong force output
  • Festo manufacturing ensures reliable pneumatic performance
  • Red finish provides clear visibility in workshop environments
  • New condition guarantees full factory specification compliance

Specifications

BrandFESTO
ModelDSNU-63-100-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the Festo DSNU-63-100-P-A cylinder arrive with mounting hardware or must brackets be ordered separately?

The unit is supplied as a single cylinder in its box; mounting brackets, sensors and tubing fittings are not included and must be purchased separately.

How do the bore and stroke values 63 and 100 guide the choice between available DSNU variants?

The 63 mm bore determines the force at a given pressure, while the 100 mm stroke sets the maximum linear travel; select a different bore for more or less force and a different stroke for longer or shorter travel.

What does the 100 mm stroke mean for actual movement once the cylinder is installed in a machine?

The piston rod can extend and retract up to 100 mm, so the cylinder provides exactly 100 mm of usable linear travel in the application.
