Red Festo round cylinder DSNU-32-80-PPV-A 196023

Festo

Festo DSNU-32-80-PPV-A 196023 round cylinder electrician tool

SKU CH-DVM3-SDED4 MPN DSNU-32-80-PPV-A

A 32 mm bore, 80 mm stroke round cylinder for pneumatic test applications, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Round cylinder delivers precise linear motion with 32 mm bore and 80 mm stroke
  • Durable red finish resists wear in demanding electrical environments
  • Festo engineering ensures reliable pneumatic performance for testing applications
  • Compact single-unit pack simplifies inventory and on-site handling
  • Three-year parts coverage and one-year labour support protect long-term uptime

Compact pneumatic cylinder for electrician tooling

The Festo DSNU-32-80-PPV-A is a round pneumatic cylinder built for integration into electrician tool assemblies. It ships new in a single-unit box and carries a three-year parts guarantee with one year of labour coverage. Maintenance teams and OEM integrators use it where reliable linear actuation is required in compact equipment.

80 mm stroke defines travel and force envelope

The 80 mm stroke length is the primary specification that determines whether this cylinder fits the application. It fixes the maximum linear travel and directly influences the force profile across the working cycle. Engineers must match this stroke to the mechanism’s required displacement before selecting the unit.

32 mm bore provides moderate force headroom

The 32 mm bore diameter delivers sufficient force for clamping, positioning and light pressing tasks common in electrical assembly fixtures. It handles typical actuation cycles without exceeding the cylinder’s rated limits. Applications demanding higher thrust or longer continuous duty will exceed the available capacity and require a larger bore size.

Highlights

  • Round cylinder delivers precise linear motion with 32 mm bore and 80 mm stroke
  • Durable red finish resists wear in demanding electrical environments
  • Festo engineering ensures reliable pneumatic performance for testing applications
  • Compact single-unit pack simplifies inventory and on-site handling
  • Three-year parts coverage and one-year labour support protect long-term uptime

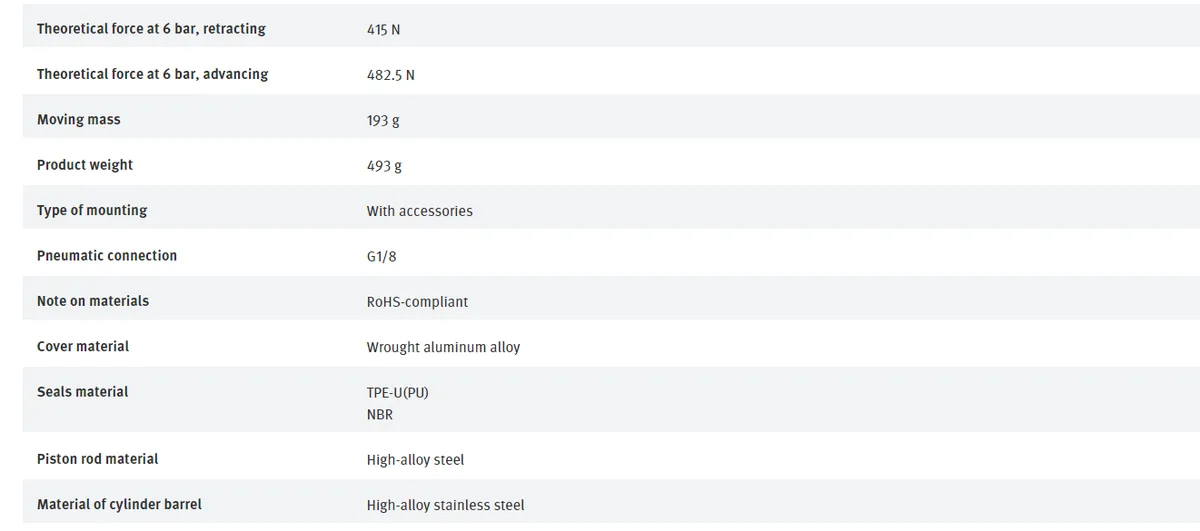

Specifications

BrandFESTO
ModelDSNU-32-80-PPV-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What does the 80 mm stroke mean for actual travel in my setup?

The piston rod extends 80 mm from its fully retracted position, giving you that exact linear travel distance for clamping or positioning tasks.

Which pneumatic ports does this cylinder use and what does that limit?

It has G 1/8 ports, so maximum airflow and operating pressure are constrained by that port size and the fittings you install.

What mounting options does the 32 mm bore cylinder provide?

The 32 mm bore body includes a front nose thread and a rear pivot eye, letting you bolt it directly or use a clevis bracket for angle mounting.
