Red Festo rotary actuator DSM-10-90-P in box

Festo

Festo DSM-10-90-P 173192 rotary actuator

SKU CH-854D-96FM8 MPN DSM-10-90-P

Rotary actuator with 10 mm bore and 90° swivel angle, supplied new in a single box

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 10 mm bore enables tight-space installation
  • 90° rotation angle suits precise quarter-turn tasks
  • Red finish allows quick visual identification in busy panels
  • New condition guarantees full factory performance from day one
  • Single-unit box packaging simplifies inventory handling

Rotary actuator for automation

The Festo DSM-10-90-P 173192 is a rotary actuator designed for pneumatic automation systems. It delivers precise rotary motion for positioning and handling tasks in industrial environments. The unit is supplied new in a single pack with a red finish.

Suited for pneumatic positioning tasks

This actuator suits engineers building or maintaining automated machinery that requires controlled rotation. It is not for applications needing linear stroke motion or hydraulic power transmission. Buyers without compressed-air infrastructure should look elsewhere.

90-degree rotation angle

The defining specification is the 90-degree rotation angle that fixes the angular travel available in your circuit. The model number also encodes a size-10 housing that must match your mounting pattern. Verify both values against your design before ordering.

Highlights

  • Compact 10 mm bore enables tight-space installation
  • 90° rotation angle suits precise quarter-turn tasks
  • Red finish allows quick visual identification in busy panels
  • New condition guarantees full factory performance from day one
  • Single-unit box packaging simplifies inventory handling

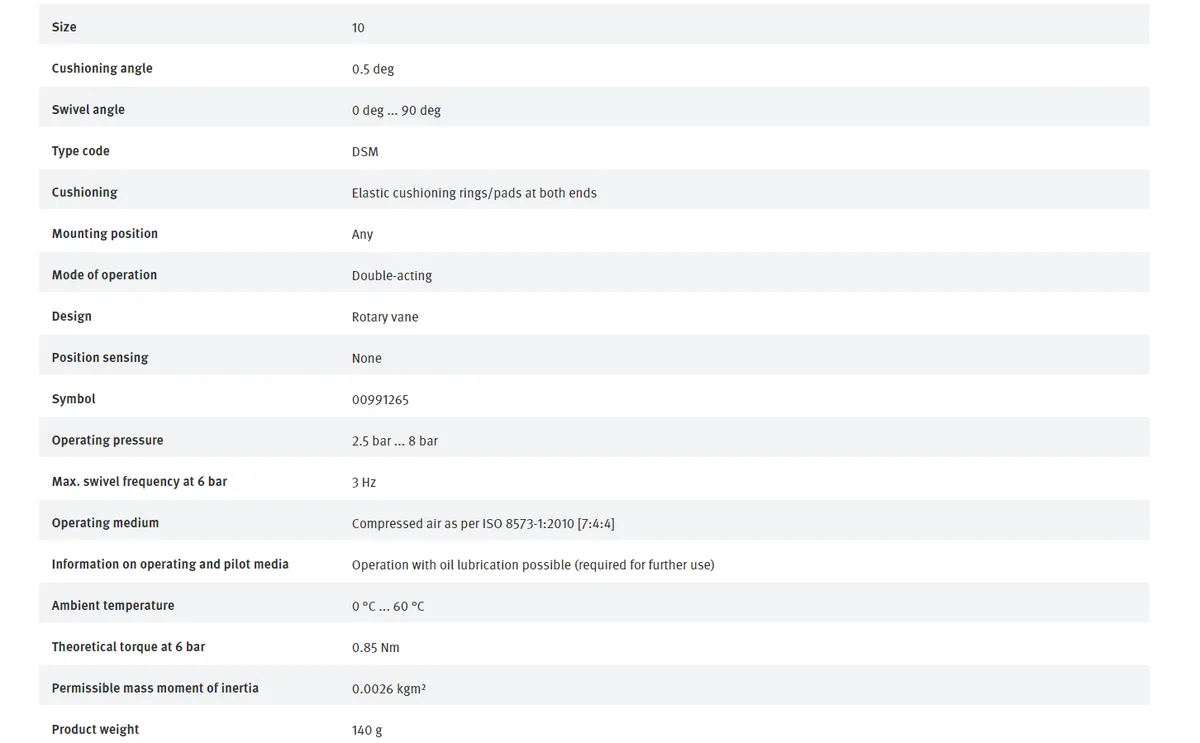

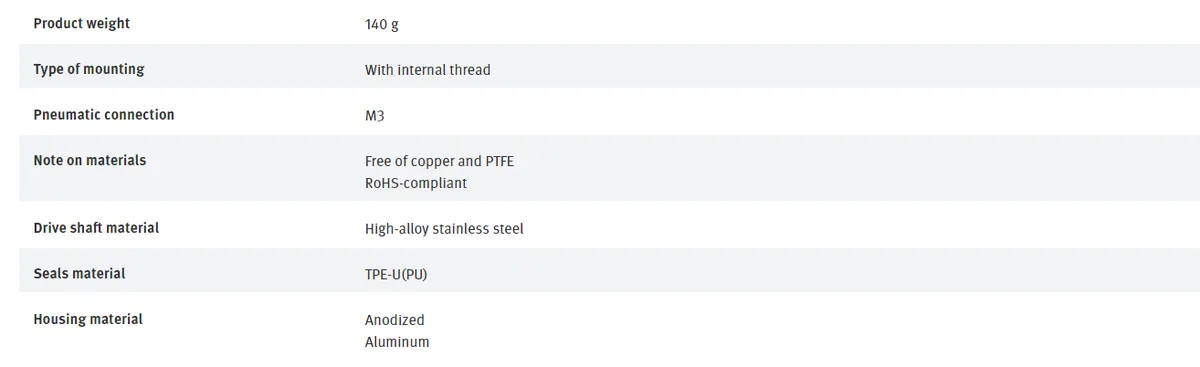

Specifications

BrandFESTO
ModelDSM-10-90-P
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the DSM-10-90-P rotary actuator and what alignment step is often missed?

Secure the DSM-10-90-P using its standard mounting pattern, then align the output shaft precisely with the driven load before tightening; a slight angular offset causes premature bearing wear.

Which wear items on the DSM-10-90-P will need replacement after extended cycles?

The internal rotary vane seals and output-shaft bearings are the primary wear parts; plan to inspect them at the interval Festo specifies for 10-size actuators.

What thermal or pressure limit stops the DSM-10-90-P first during continuous operation?

Under sustained duty the vane-seal temperature rise reaches its rated limit before the 90-degree rotation torque drops, so cycle time must allow cooling between strokes.
