Red ISO cylinder DSBG-40-80-PPSA-N3 1646562

Festo

Festo DSBG-40-80-PPSA-N3 ISO cylinder 1646562

SKU CH-5ABG-Z5VMA MPN DSBG-40-80-PPSA-N3

ISO pneumatic cylinder with 40 mm bore and 80 mm stroke, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • ISO cylinder design ensures standardised mounting
  • 40 mm bore diameter provides consistent pneumatic force
  • 80 mm stroke length enables precise linear motion
  • New condition guarantees full factory performance
  • Manufacturer part number 1646562 simplifies reordering and identification

ISO Cylinder for Precision Actuation

The Festo DSBG-40-80-PPSA-N3 is an ISO-standard pneumatic cylinder built for linear motion tasks in automation and test equipment. Its 40 mm bore and 80 mm stroke suit applications that require repeatable force and controlled speed. Engineers and maintenance teams specify this model for new machine builds or direct replacements where ISO mounting compatibility is mandatory.

Verify Mounting and Pressure Requirements

Confirm that your existing fixture uses the ISO mounting pattern matching this cylinder’s bore size before ordering. Check that the available supply pressure falls within the operating range required for the intended load and cycle rate. Ensure the rod-end thread and accessories align with the mechanical interface on your equipment.

Integrates with Standard ISO Accessories

The cylinder accepts standard ISO foot, flange or trunnion mounts, allowing it to fit existing brackets without custom machining. Its compact 80 mm stroke frees space in tight machine envelopes while delivering the needed travel. Supplied as a single unit in a box, it simplifies inventory control for spare-parts stock.

Highlights

  • ISO cylinder design ensures standardised mounting
  • 40 mm bore diameter provides consistent pneumatic force
  • 80 mm stroke length enables precise linear motion
  • New condition guarantees full factory performance
  • Manufacturer part number 1646562 simplifies reordering and identification

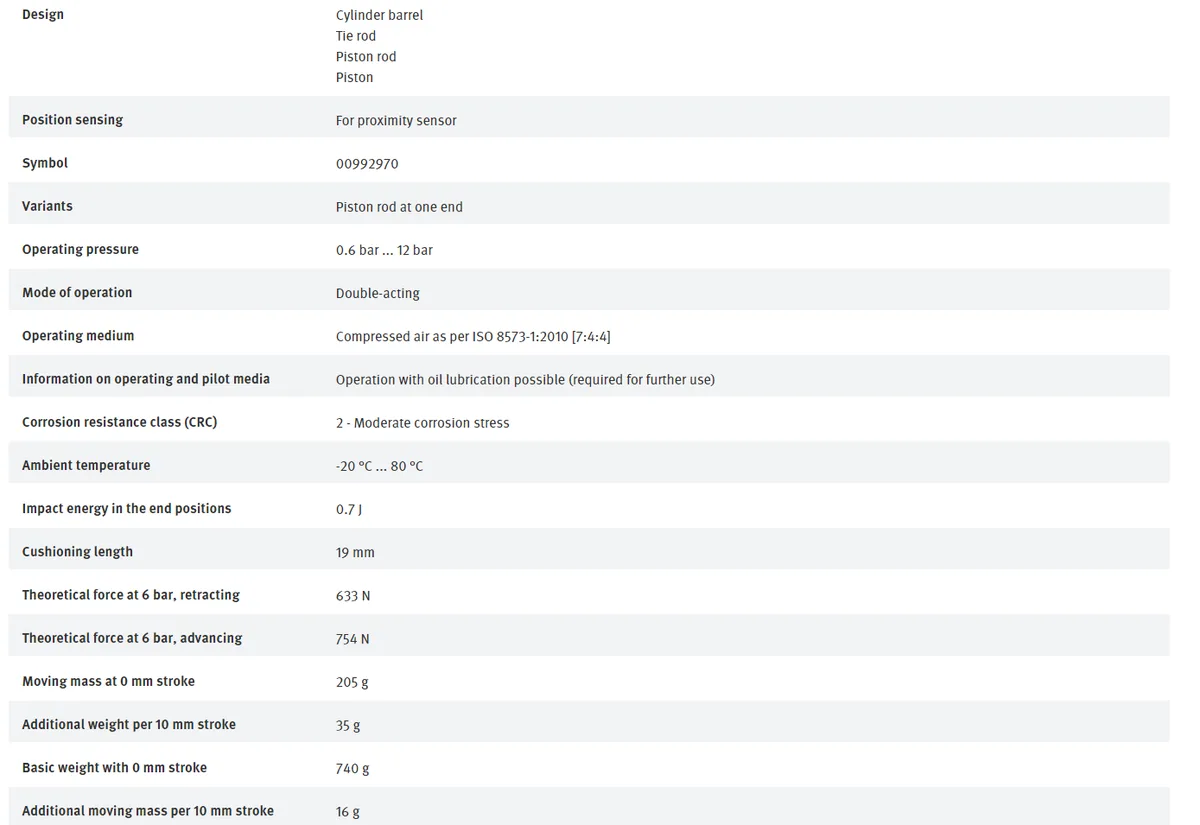

Specifications

BrandFESTO
ModelDSBG-40-80-PPSA-N3
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the DSBG-40-80-PPSA-N3 arrive as a single unit in the box, or do I need to order mountings and sensors separately?

The product is sold as one pack containing the ISO cylinder itself; mounting brackets, sensors and tubing fittings are not included and must be purchased separately.

The model code shows 40 and 80 — which figure tells me the bore size and which tells me the stroke length?

In the Festo DSBG designation the first number is the bore diameter in millimetres, so 40 means a 40 mm bore; the second number is the stroke in millimetres, so 80 gives an 80 mm stroke.

With a 40 mm bore and 80 mm stroke, what force can I expect at typical shop air pressure?

At 6 bar the theoretical extend force is the bore area times pressure, while the retract force is reduced by the rod area; actual force depends on your exact supply pressure and system losses.
