Red Festo guided actuator model DFM-80-100-P-A-KF in box

Festo

Festo DFM-80-100-P-A-KF guided actuator

SKU CH-33E3-EB6YC MPN DFM-80-100-P-A-KF

Guided actuator with 80 mm bore and 100 mm stroke, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Guided actuator ensures precise linear motion
  • 80 mm bore diameter delivers strong force output
  • 100 mm stroke length suits medium-range tasks
  • Red finish provides clear visibility in workshops
  • Manufacturer part 170963 simplifies ordering and identification

Guided Actuator for Precision Motion

The Festo DFM-80-100-P-A-KF is a guided actuator built for linear motion tasks that require accurate positioning and side-load resistance. It suits machine builders and automation engineers integrating pick-and-place, clamping or assembly modules. The unit ships new in a single pack under part number 170963.

100 mm Stroke Defines Travel Range

The 100 mm stroke is the single dimension that decides fit: the carriage travels exactly this distance between end positions. If the application demands a longer or shorter working envelope, a different stroke variant must be selected. The 80 mm bore size sets the force class but does not alter the travel length.

Consistent Force Across Full Stroke

Under sustained load the actuator maintains uniform thrust because the guided rods prevent piston tilt and uneven seal wear. This stability preserves repeatability during continuous cycling where an unguided cylinder would drift. The red finish identifies the unit visually in a crowded machine layout.

Highlights

  • Guided actuator ensures precise linear motion
  • 80 mm bore diameter delivers strong force output
  • 100 mm stroke length suits medium-range tasks
  • Red finish provides clear visibility in workshops
  • Manufacturer part 170963 simplifies ordering and identification

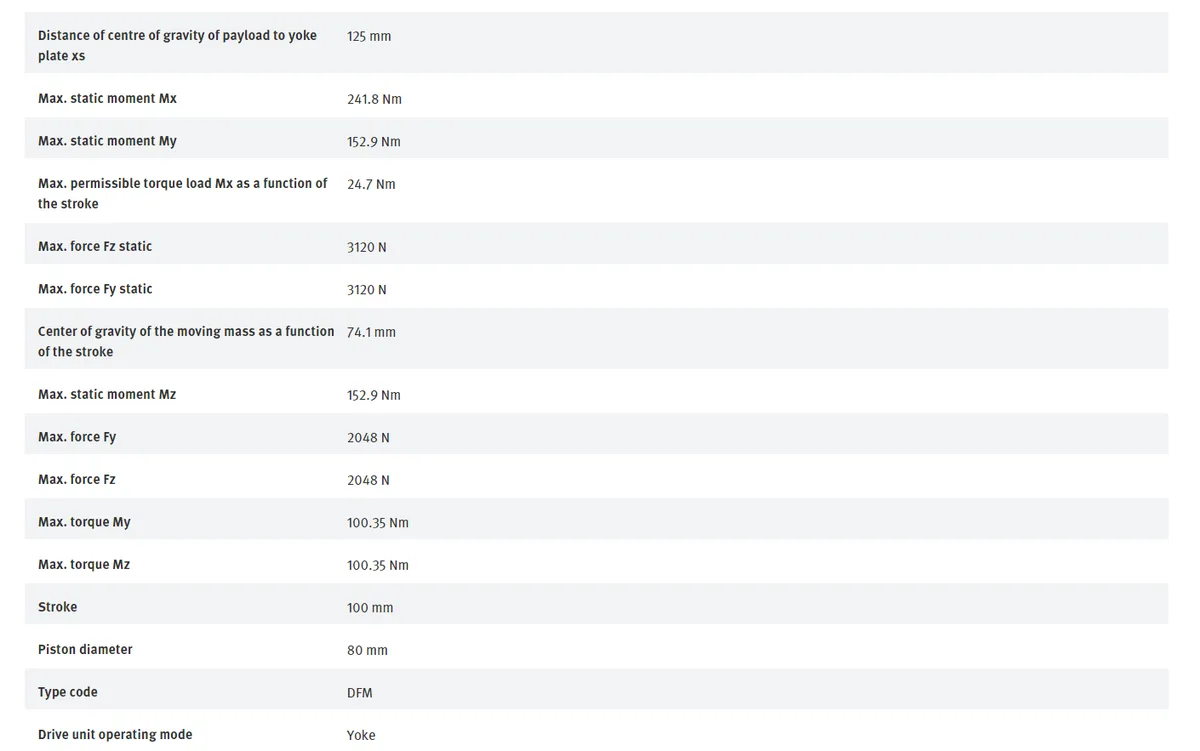

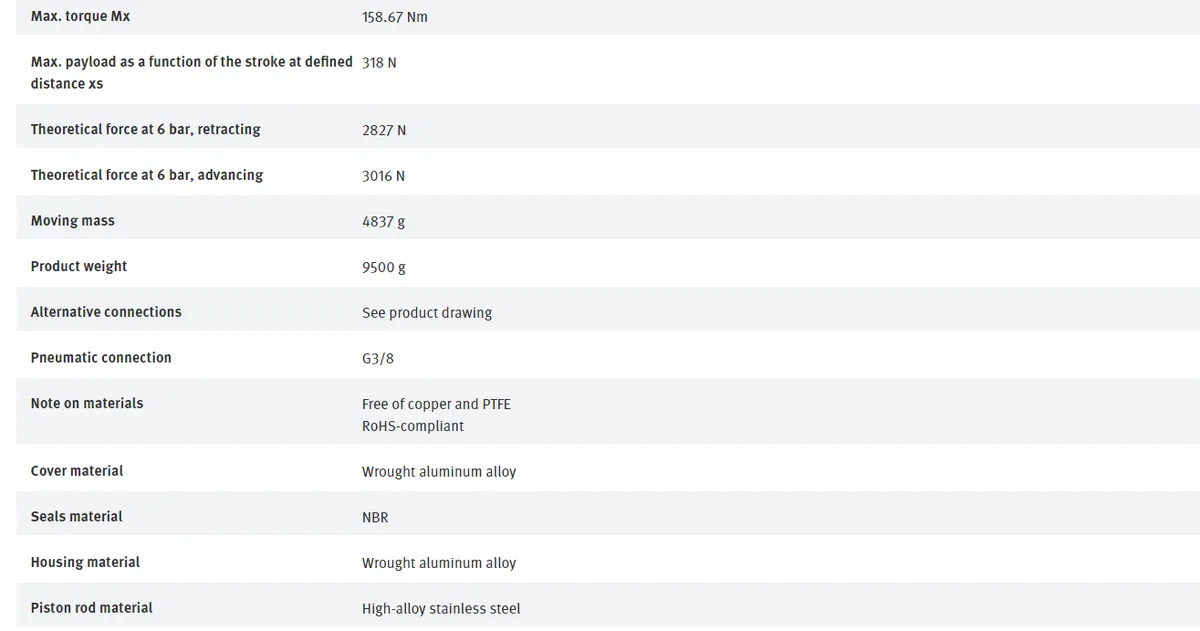

Specifications

BrandFESTO
ModelDFM-80-100-P-A-KF
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What does the 100 mm stroke mean when the actuator is installed?

The 100 mm stroke is the maximum linear travel the guided carriage can move from end to end inside the machine.

Which pneumatic interface does the DFM-80-100-P-A-KF use and what pressure does it limit?

It uses standard G 1/4 pneumatic ports and is rated for up to 10 bar operating pressure.

What mounting pattern and hole size are needed to bolt this unit in place?

The body has four M8 threaded holes on a 100 mm square pattern for direct frame mounting.
