Red Festo guided actuator, compact cylinder form, model DFM-40-125-P-A-GF

Festo

Festo DFM-40-125-P-A-GF 170868 guided actuator electrician tool

SKU CH-W786-5WEA3 MPN DFM-40-125-P-A-GF

Guided actuator with 40 mm bore and 125 mm stroke for precise linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Guided actuator with 125 mm stroke for precise positioning
  • Plain-bearing guide GF handles side loads reliably
  • Pneumatic cushioning at both ends absorbs impact energy
  • Double-acting 40 mm bore delivers balanced force
  • Supplied new as part number 170868

Guided actuator for linear motion

The Festo DFM-40-125-P-A-GF is a guided actuator designed for precise linear movement in automation systems. It carries the manufacturer part number 170868 and is supplied new in a single box. The unit features a red finish and is classified as test equipment by the supplier.

Suited for guided stroke applications

This actuator suits engineers who need a guided drive unit for controlled positioning tasks. It is not intended for users who require an unguided cylinder or a rotary motion device. Buyers needing a different bore size or stroke length should look at other models.

Bore 40 mm and stroke 125 mm

The defining specification is the combination of a 40 mm bore and a 125 mm stroke. These two figures determine whether the actuator fits the mechanical envelope and force requirements of the application. Verify both numbers against your design drawings before ordering.

Highlights

  • Guided actuator with 125 mm stroke for precise positioning
  • Plain-bearing guide GF handles side loads reliably
  • Pneumatic cushioning at both ends absorbs impact energy
  • Double-acting 40 mm bore delivers balanced force
  • Supplied new as part number 170868

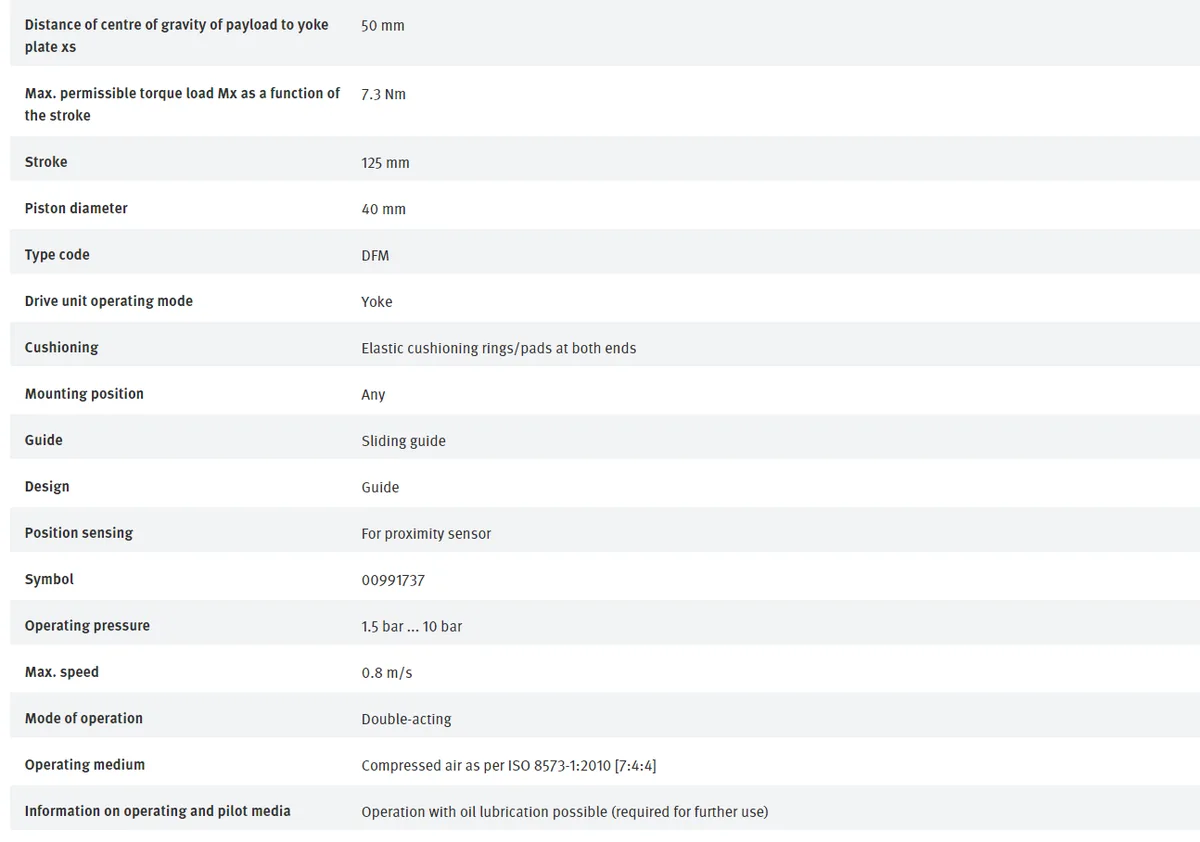

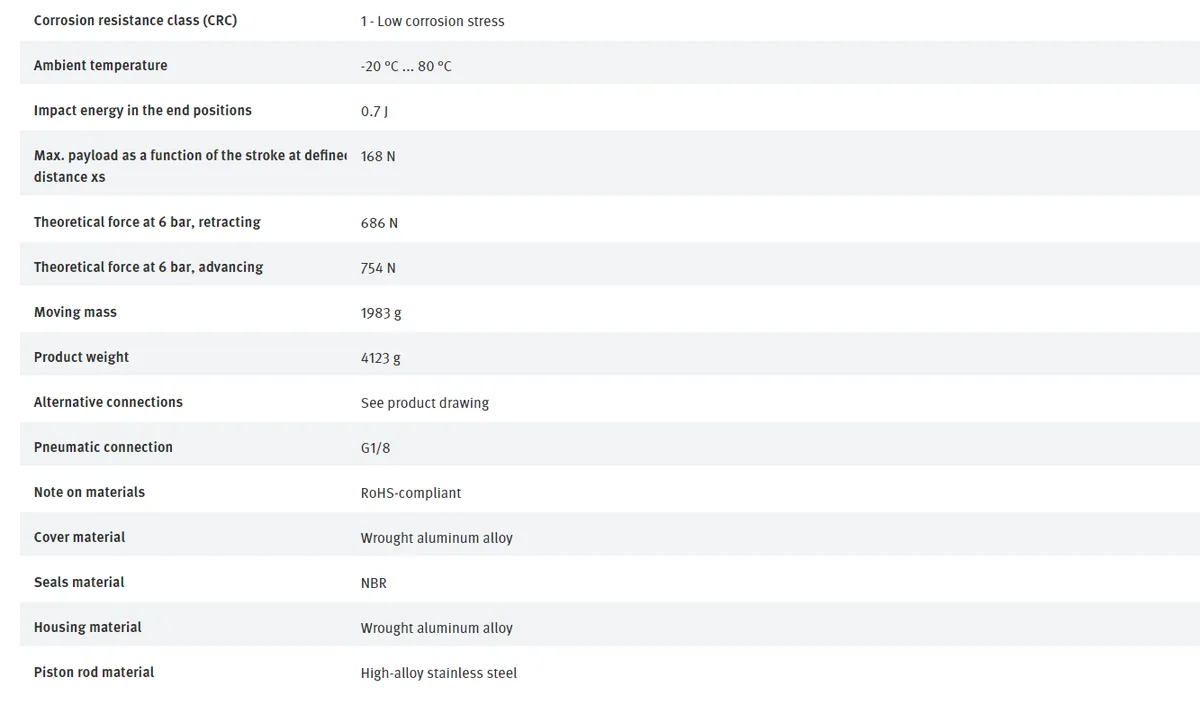

Specifications

BrandFESTO
ModelDFM-40-125-P-A-GF
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Will the DFM-40-125-P-A-GF guided actuator fit existing 40 mm and 125 mm mounting patterns on my rig?

The model code indicates a 40 mm bore and 125 mm stroke, so it matches those standard mounting dimensions used on many Festo guided-drive installations.

How can I verify the actuator is operating correctly once installed?

Apply compressed air and confirm smooth, repeatable travel across the full 125 mm stroke without binding or excessive side-play on the guide rods.

What ships in the box and what must I source separately?

The box contains one new DFM-40-125-P-A-GF guided actuator (part 170868); fittings, tubing, sensors and mounting hardware are not included.
