Red Festo guided actuator DFM-20-100-P-A-GF in box

Festo

Festo DFM-20-100-P-A-GF 170846 Guided Actuator electrician tool

SKU CH-3632-W7H3Q MPN DFM-20-100-P-A-GF

Guided actuator with 20 mm bore and 100 mm stroke for precise linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Guided actuator ensures precise linear motion
  • 20 mm bore suits compact installations
  • 100 mm stroke covers standard travel needs
  • Red finish aids quick visual identification
  • Supplied as a single unit in protective box

Guided actuator for linear motion

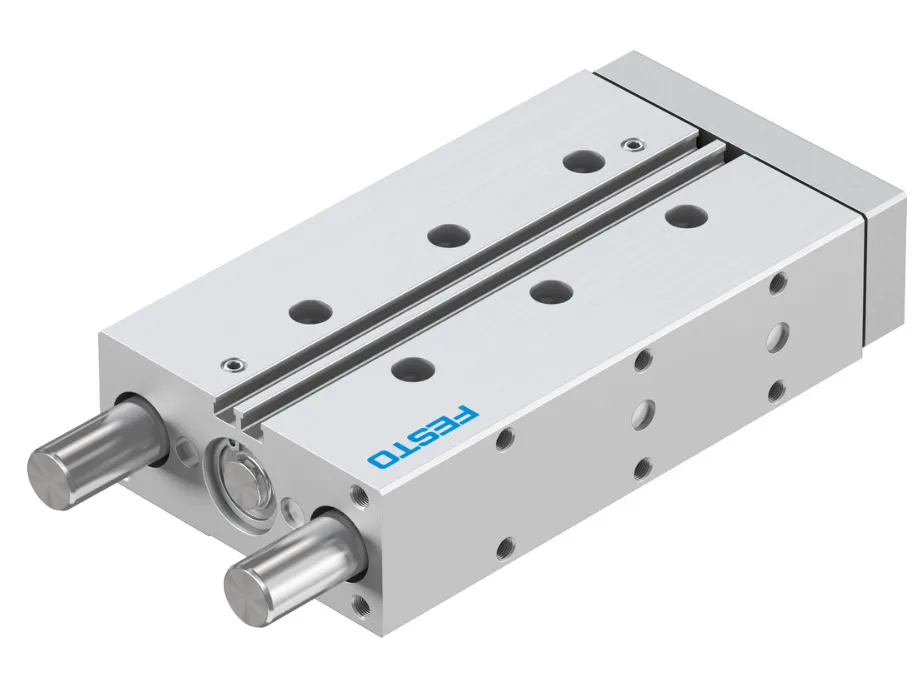

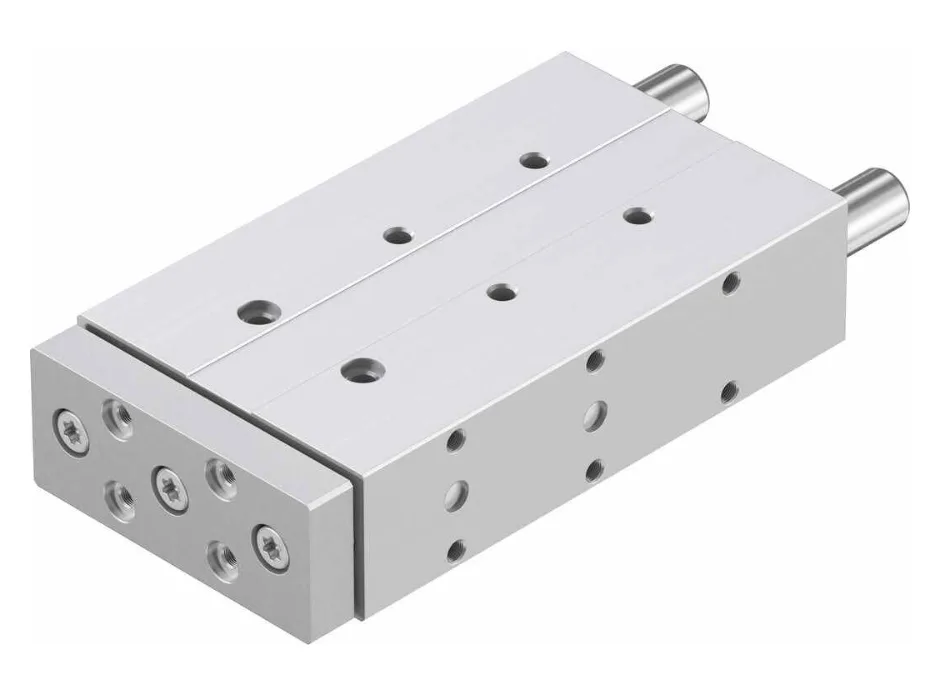

The Festo DFM-20-100-P-A-GF is a guided actuator designed for precise linear movement in automation tasks. It integrates a piston diameter of 20 and a stroke length of 100 to deliver controlled motion. The unit arrives new in a single box under part number 170846.

Suited for guided stroke applications

This actuator fits engineers building pick-and-place units, clamping fixtures or assembly stations that require anti-rotation guidance. It is not for buyers who need a compact cylinder without guide rods, nor for systems that demand a longer stroke than 100.

Piston diameter 20 and stroke 100 define fit

The 20 bore and 100 travel determine whether the actuator matches the mechanical envelope and force requirements of the application. Verify these two values against the machine design before ordering.

Highlights

  • Guided actuator ensures precise linear motion
  • 20 mm bore suits compact installations
  • 100 mm stroke covers standard travel needs
  • Red finish aids quick visual identification
  • Supplied as a single unit in protective box

Specifications

BrandFESTO
ModelDFM-20-100-P-A-GF
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What interface or standard does the DFM-20-100-P-A-GF guided actuator use, and what does that limit in practice?

The DFM-20-100-P-A-GF is a pneumatic guided actuator; its compressed-air interface caps force and speed to the supply pressure and flow available in your system.

What physical space and mounting pattern does the DFM-20-100-P-A-GF need to fit?

The unit has a 20 mm bore and 100 mm stroke, so allow at least that stroke length plus the body length, and mount it using the standard Festo DFM series flange or foot brackets.

How is the DFM-20-100-P-A-GF installed, and which step do people often get wrong?

Connect clean, dry compressed air to the correct ports, align the guide rods to avoid side loads, and torque the mounting bolts to spec — the step most often missed is installing a filter-regulator-lubricator unit upstream.
