Red Festo guided actuator in rectangular metal housing

Festo

Festo DFM-16-80-P-A-GF 170838 Guided Actuator

SKU CH-50WE-W13GE MPN DFM-16-80-P-A-GF

A guided actuator with 16 mm bore and 80 mm stroke, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Precise linear motion with 16 mm bore and 80 mm stroke
  • Reliable Festo engineering backed by model DFM-16-80-P-A-GF
  • Ready-to-install guided actuator reduces assembly time
  • Distinctive red finish aids quick identification in cabinets
  • Single-unit packaging simplifies inventory management for part 170838

Guided Actuator for Precise Motion

The Festo DFM-16-80-P-A-GF is a guided actuator designed for controlled linear movement in automation tasks. It integrates a piston rod with a built-in guide unit to resist lateral forces and maintain alignment. The unit is supplied new in a single box under part number 170838.

Suited for Guided Linear Applications

This actuator suits engineers building pick-and-place, clamping or positioning modules that require anti-rotation guidance. It is not intended for applications needing pure rotary motion, high-speed unsupported strokes or environments outside the manufacturer's stated operating range.

16 mm Bore and 80 mm Stroke

The defining specifications are a 16 mm bore diameter and an 80 mm stroke length. These two figures determine the force output and travel distance, so verify them against your machine design before ordering.

Highlights

  • Precise linear motion with 16 mm bore and 80 mm stroke
  • Reliable Festo engineering backed by model DFM-16-80-P-A-GF
  • Ready-to-install guided actuator reduces assembly time
  • Distinctive red finish aids quick identification in cabinets
  • Single-unit packaging simplifies inventory management for part 170838

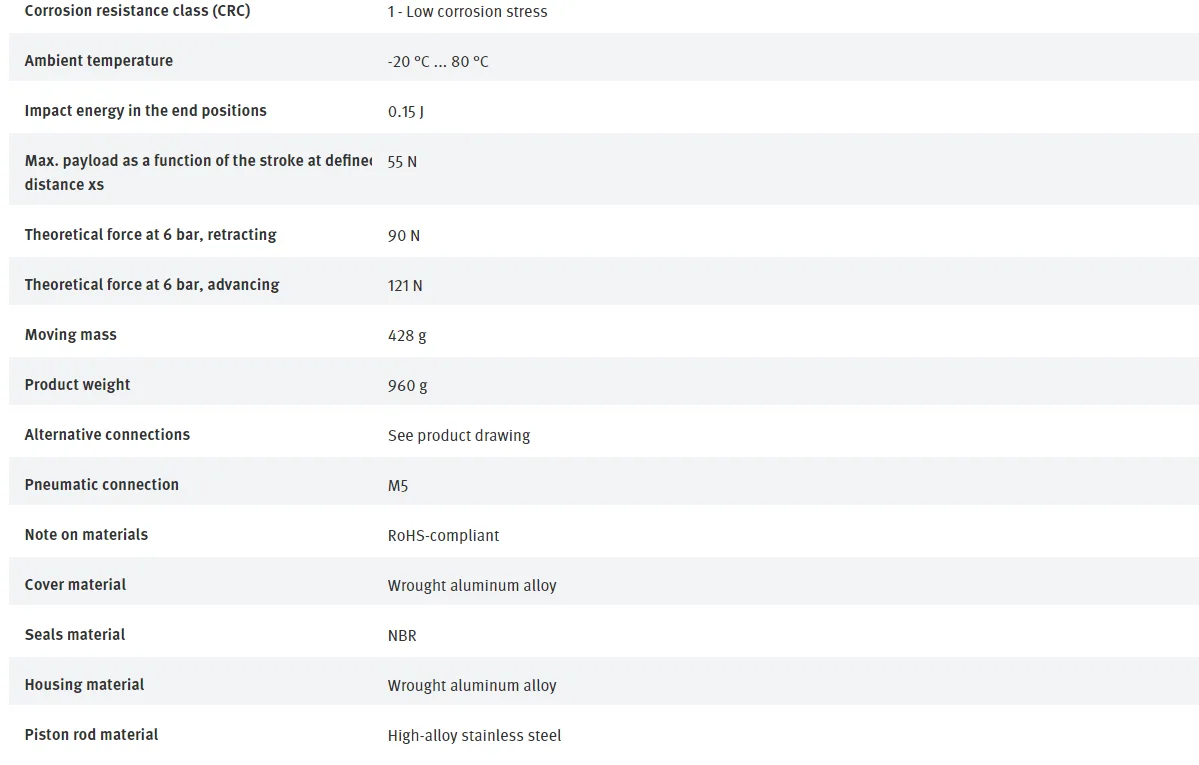

Specifications

BrandFESTO
ModelDFM-16-80-P-A-GF
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What mounting pattern and bore size does the DFM-16-80-P-A-GF require?

The guided actuator uses a 16 mm bore and standard Festo mounting threads for direct attachment to machine frames.

Which port size and air preparation steps are needed when installing this 170838 unit?

Connect filtered, lubricated compressed air to the G1/8 ports, then stroke the unit slowly several times to purge air from the guide chambers.

When should the guide bearings and piston seals be inspected or replaced on the DFM-16-80-P-A-GF?

Plan bearing and seal inspection at the intervals stated in the Festo maintenance manual for the DFM series.
