Red Festo guided actuator in box packaging

Festo

Festo DFM-100-80-P-A-GF 170894 Guided Actuator

SKU CH-3R59-PSZJ3 MPN DFM-100-80-P-A-GF

Guided actuator with 100 mm bore and 80 mm stroke for precise linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Guided actuator ensures precise linear motion
  • 80 mm stroke length supports controlled positioning
  • 100 mm bore diameter delivers strong force output
  • Red finish provides clear visual identification
  • New condition guarantees factory-fresh reliability

Guided actuator for automation

The Festo DFM-100-80-P-A-GF is a guided actuator designed for precise linear motion in automated systems. It integrates guiding elements to handle lateral forces and maintain alignment during operation. The unit is supplied new in a single box under part number 170894.

Suited for guided linear tasks

This actuator suits engineers building pick-and-place, clamping or assembly stations that require anti-rotation performance. It is not intended for applications needing pure rotary motion or unstamped rod-style cylinders without side-load resistance.

80 mm stroke length

The defining specification is the 80 mm stroke combined with a 100 mm bore, which sets the travel distance and force envelope for the machine cycle. Verify that the required stroke matches this figure before ordering.

Highlights

  • Guided actuator ensures precise linear motion
  • 80 mm stroke length supports controlled positioning
  • 100 mm bore diameter delivers strong force output
  • Red finish provides clear visual identification
  • New condition guarantees factory-fresh reliability

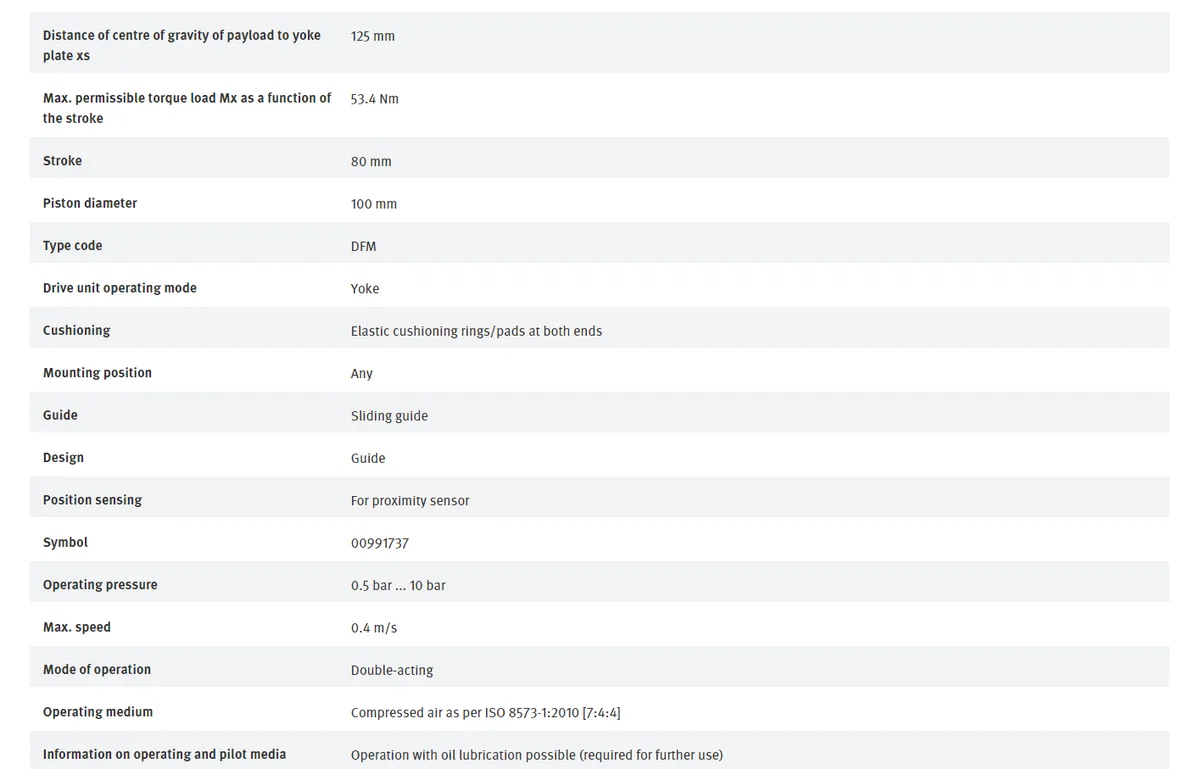

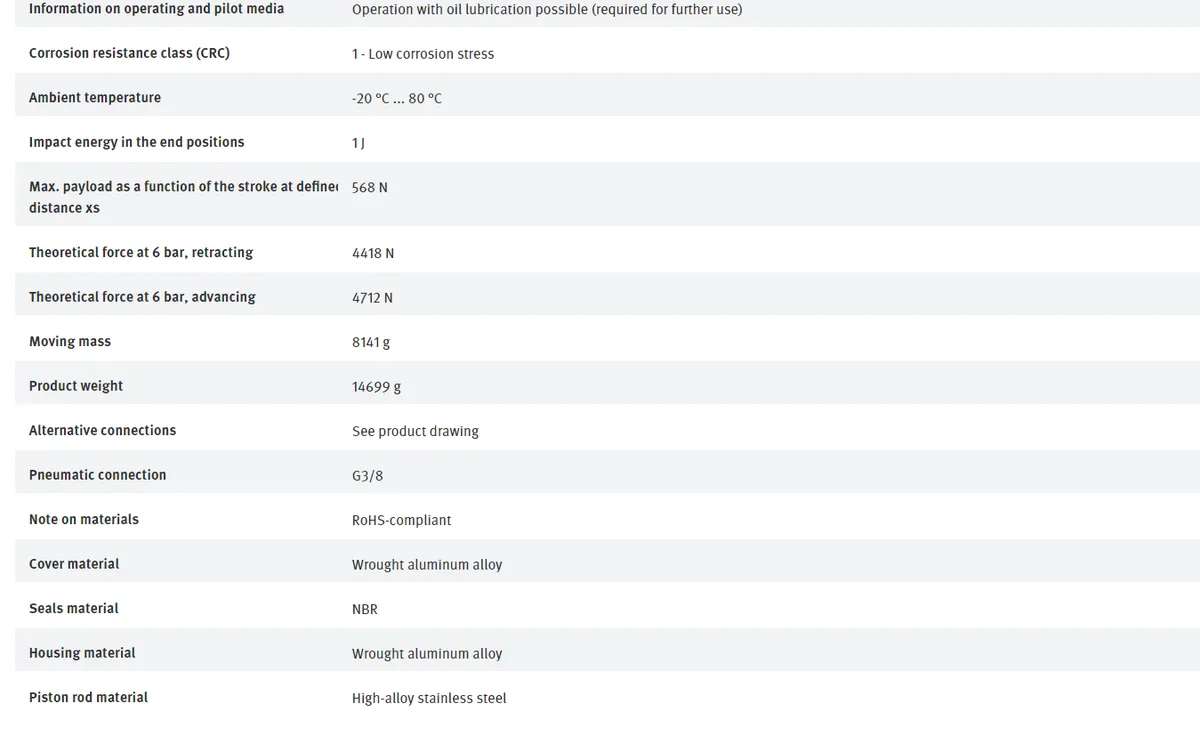

Specifications

BrandFESTO
ModelDFM-100-80-P-A-GF
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I confirm the DFM-100-80-P-A-GF guided actuator is operating correctly after installation?

Apply the rated pressure and verify smooth linear motion through the full 80 mm stroke without binding or excessive play on the guide rods.

What comes in the box with the DFM-100-80-P-A-GF and what must I source separately?

The box contains one DFM-100-80-P-A-GF guided actuator unit; mounting hardware, fittings and pneumatic tubing are not included.

Which variant should I choose if I need the 100 mm bore size with an 80 mm stroke?

Select the DFM-100-80-P-A-GF (part number 170894) — it matches the 100 mm bore and 80 mm stroke specification.
