Red quarter-turn actuator in rectangular housing with mounting flange

Festo

Festo DAPS-0180-090-RS1-F0710 Quarter Turn Actuator

SKU CH-BWDQ-M0QM5 MPN DAPS-0180-090-RS1-F0710

Quarter-turn actuator with 90-degree rotation and F0710 mounting pattern

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Quarter-turn motion with 90° rotation
  • 180 Nm torque delivers strong valve control
  • F07/F10 mounting fits standard valve patterns
  • Spring-return failsafe ensures safe position on power loss
  • Red finish provides clear visual identification

Quarter Turn Actuator for Valve Automation

The Festo DAPS-0180-090-RS1-F0710 is a quarter turn actuator built for precise valve control in industrial systems. It delivers a 90 degree rotation with a size 180 torque rating and carries the manufacturer part number 533447. The unit ships new in a single box with a red finish.

Suited for Engineers Specifying F0710 Mounting

This actuator matches the F0710 mounting pattern, making it suitable for technicians who need that exact flange interface. Buyers whose valves use a different bolt circle or shaft dimension should look elsewhere because this model will not bolt on directly. The three-year parts coverage and one-year labour term apply to the unit as supplied.

90 Degree Rotation Defines the Travel

The single specification that decides fit is the 90 degree quarter turn travel. If the application demands a different rotation angle or a multi-turn output, this actuator cannot meet the requirement. Verify the needed travel before ordering.

Highlights

  • Quarter-turn motion with 90° rotation
  • 180 Nm torque delivers strong valve control
  • F07/F10 mounting fits standard valve patterns
  • Spring-return failsafe ensures safe position on power loss
  • Red finish provides clear visual identification

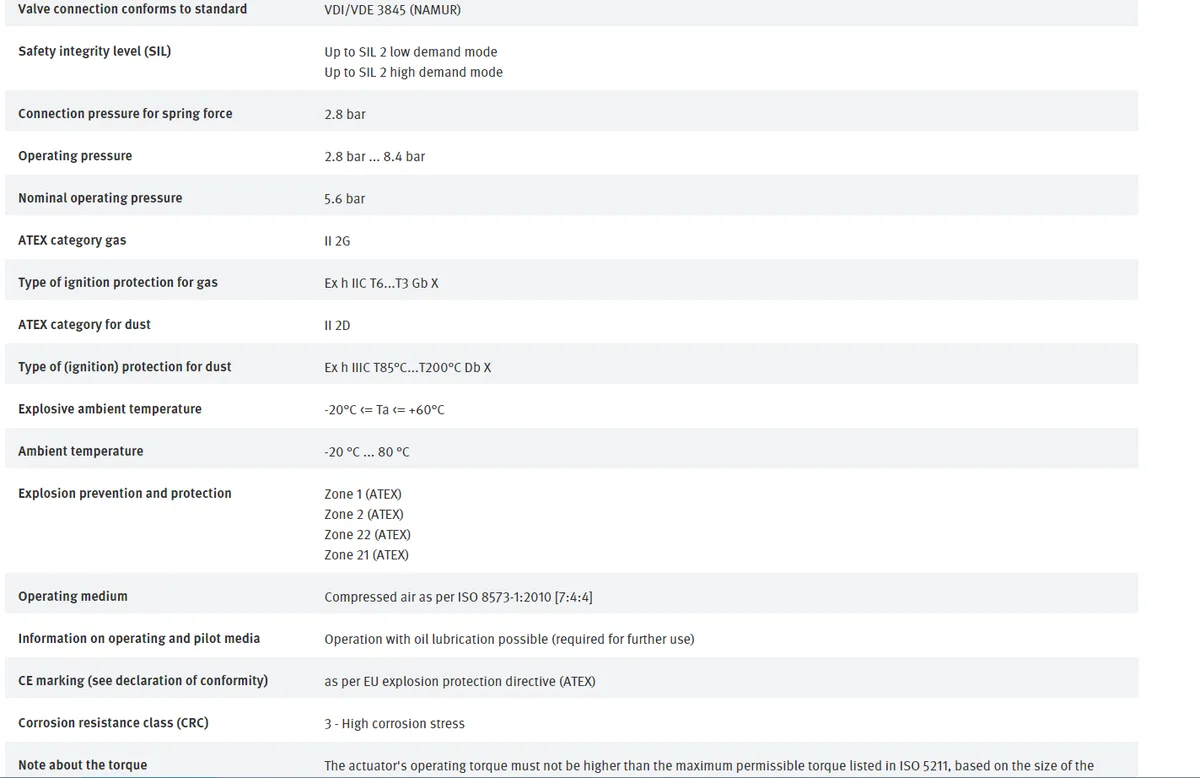

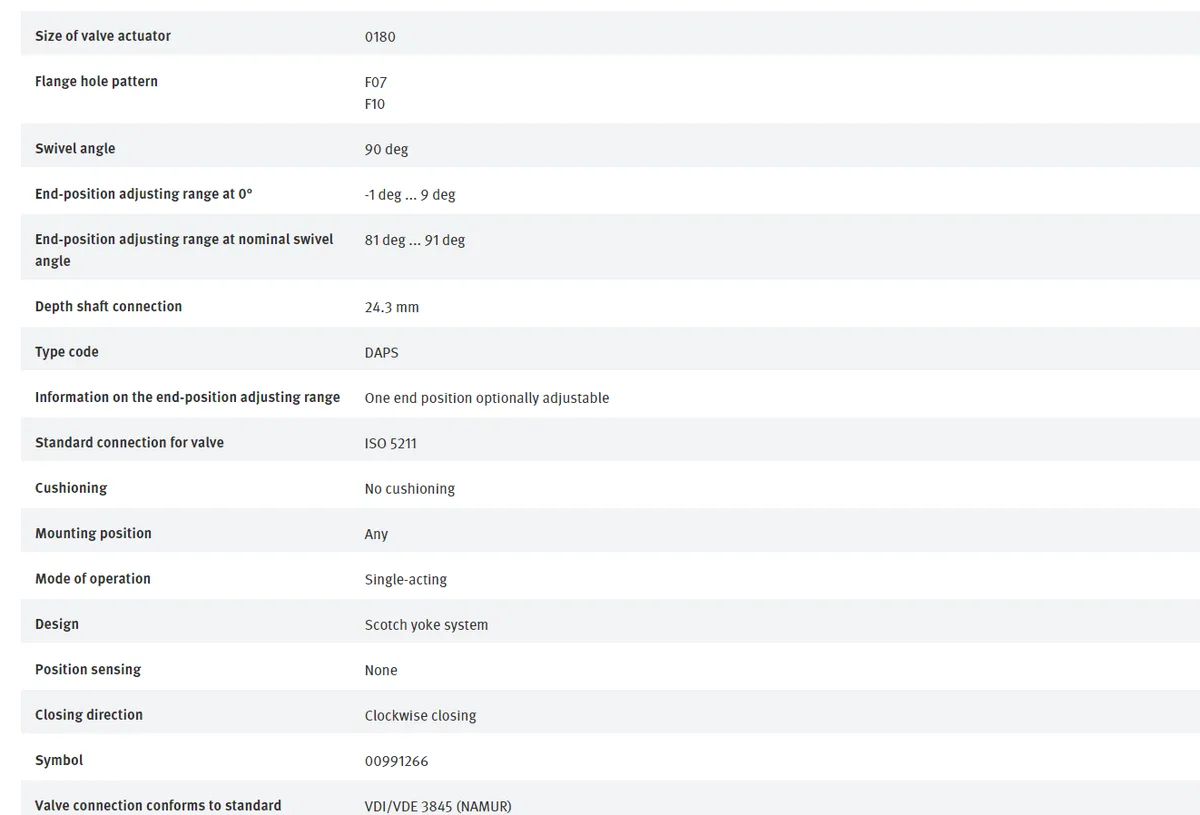

Specifications

BrandFESTO
ModelDAPS-0180-090-RS1-F0710
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Should I pick the 90 degree or 180 degree rotation version?

This model provides a 90 degree quarter turn stroke; the 180 figure in the part number refers to the actuator size, not the rotation angle.

What does the 180 size rating tell me about torque output?

The 180 size indicates the actuator frame class; actual torque depends on supply pressure, so consult the Festo torque chart for your operating pressure.

How does the F0710 mounting pattern limit valve choices?

The F0710 pattern fixes the bolt circle and spigot dimensions, so only valves with a matching F07 or F10 interface will bolt directly to this actuator.
