Red quarter-turn actuator in box, new condition

Festo

Festo DAPS-0015-090-RS3-F04 Quarter Turn Actuator

SKU CH-014M-9MNAV MPN DAPS-0015-090-RS3-F04

Quarter-turn actuator with 90° rotation and 15 Nm torque, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Quarter-turn operation with 90° rotation angle
  • Compact size suits tight installation spaces
  • Red finish enables quick visual identification
  • F04 mounting pattern fits standard valve interfaces
  • New condition ensures full factory performance

Quarter Turn Actuator for Valve Automation

The Festo DAPS-0015-090-RS3-F04 is a quarter turn actuator designed for precise valve positioning in automated process systems. It suits engineers and maintenance teams who need reliable rotary motion control for quarter-turn valves in industrial environments.

Replaces Manual or Worn Pneumatic Operators

This unit upgrades installations where manual levers or ageing pneumatic actuators cause inconsistent valve timing or require frequent seal replacement. The jump is worth it when a process demands repeatable 90-degree rotation with defined torque output and the 533482 part number matches the existing mounting pattern.

Fits F04 Mounting Interface in Compact Stations

The actuator mounts directly to an F04 flange, freeing space around the valve body for tighter skid layouts. It needs a compatible 4-bar supply and a 15 Nm torque class to operate within its rated range, leaving the control cabinet free for signal wiring rather than bulky solenoid banks.

Highlights

  • Quarter-turn operation with 90° rotation angle
  • Compact size suits tight installation spaces
  • Red finish enables quick visual identification
  • F04 mounting pattern fits standard valve interfaces
  • New condition ensures full factory performance

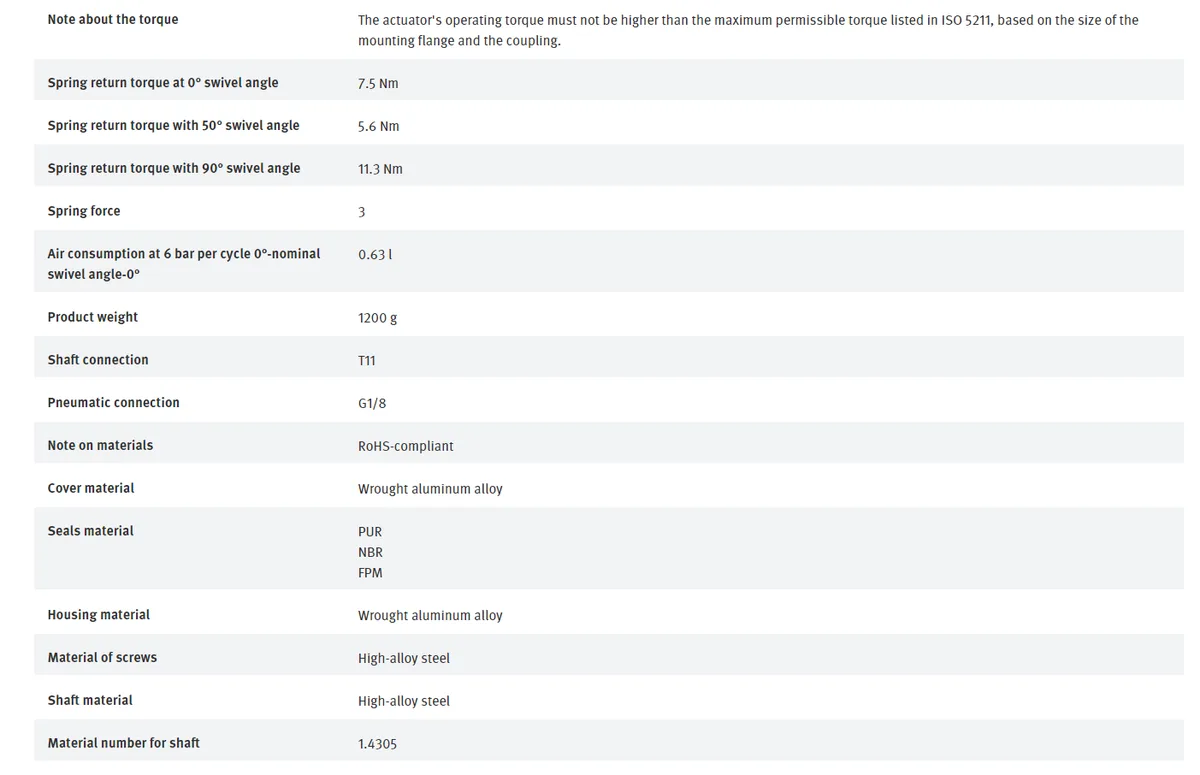

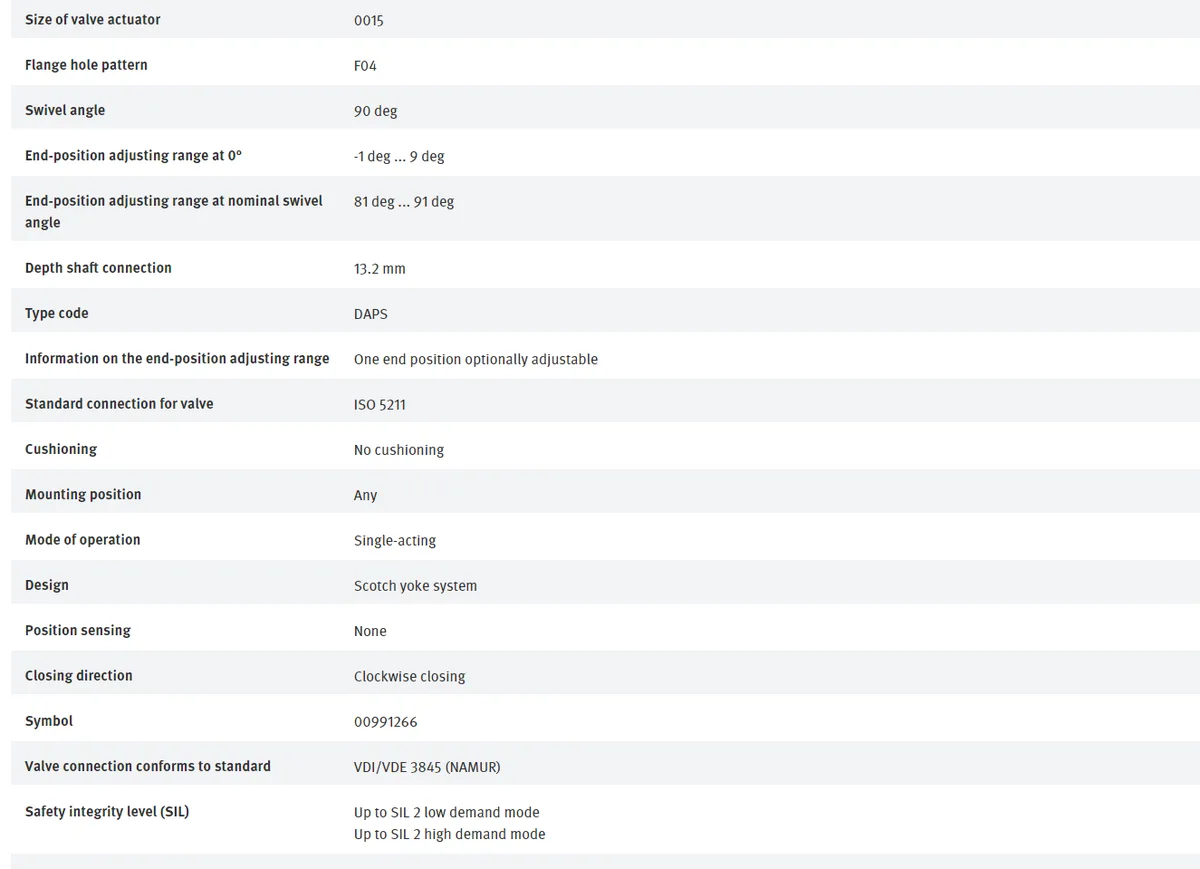

Specifications

BrandFESTO
ModelDAPS-0015-090-RS3-F04
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What mounting pattern does the F04 flange on this DAPS-0015-090-RS3-F04 actuator use?

The F04 flange provides a standard four-bolt pattern for direct mounting to matching valve tops or brackets.

Which supply ports must be connected when installing this quarter-turn actuator?

Connect compressed air to the two G 1/8 ports; the spring-return function only operates when both ports are pressurised correctly.

When should the internal spring cartridge be inspected on this DAPS-0015-090-RS3-F04 unit?

Plan a spring-cartridge check at the 3-year mark, which aligns with the parts coverage period.
