Red quarter-turn actuator in a box, model DAPS-0015-090-R-F04

Festo

Festo DAPS-0015-090-R-F04 Quarter Turn Actuator

SKU CH-76BK-2JDPX MPN DAPS-0015-090-R-F04

Quarter-turn actuator with F04 flange, 90-degree rotation, and part number 533475

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Quarter-turn valve control with 90-degree rotation
  • Compact 15-size actuator fits tight installations
  • F04 mounting pattern simplifies direct valve attachment
  • Festo-engineered reliability backed by three-year parts coverage
  • Ready-to-install unit includes single actuator in protective box

Quarter Turn Actuator for Valve Automation

The Festo DAPS-0015-090-R-F04 is a quarter turn actuator built for automated valve control in industrial process systems. It suits plant engineers and maintenance teams who need reliable 90-degree rotary motion for on-off or modulating duty. The unit arrives new in a single pack under part number 533475.

Thermals Noise and Power in Normal Use

The actuator operates on compressed air rather than electricity, so it produces no electrical heat or motor noise during cycling. Air consumption scales with supply pressure and cycle frequency, keeping the surrounding area cool and quiet. A 3-year parts and 1-year labour cover period backs the mechanical components.

Replaces Pneumatic Rotary Units With F04 Mounting

This model replaces older pneumatic rotary actuators that share the F04 mounting pattern and a 90-degree stroke. The upgrade is worth it when a facility standardises on Festo sizing or when the red colour code simplifies identification across multiple valve stations. It does not suit applications requiring linear travel or electric actuation.

Highlights

  • Quarter-turn valve control with 90-degree rotation
  • Compact 15-size actuator fits tight installations
  • F04 mounting pattern simplifies direct valve attachment
  • Festo-engineered reliability backed by three-year parts coverage
  • Ready-to-install unit includes single actuator in protective box

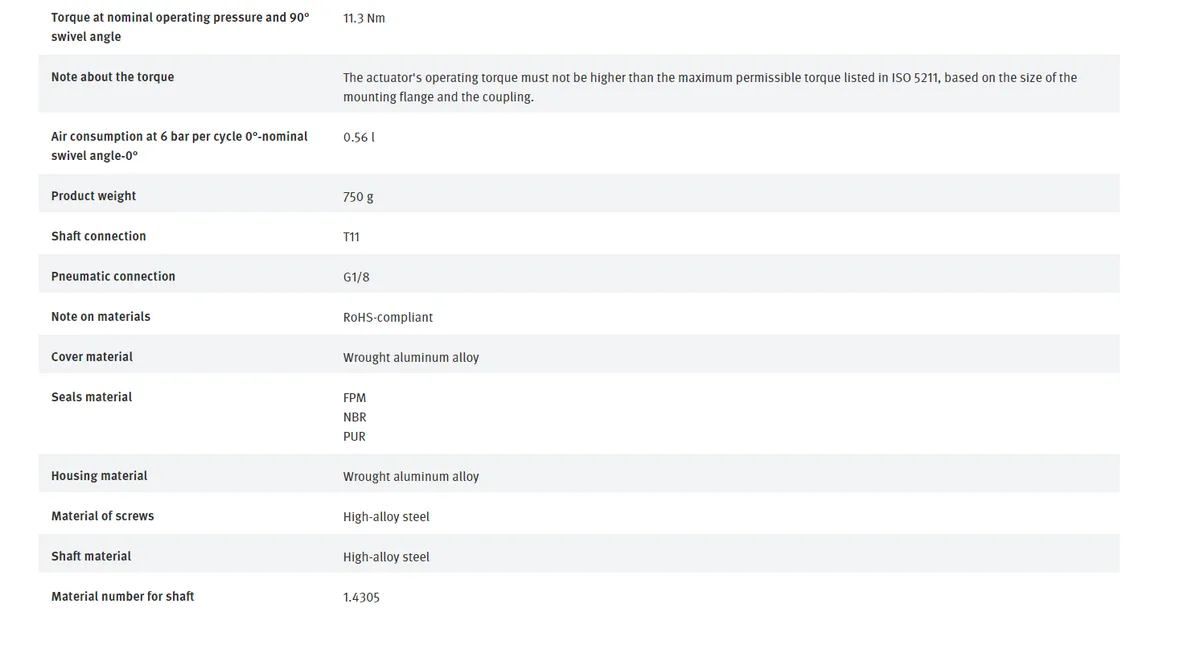

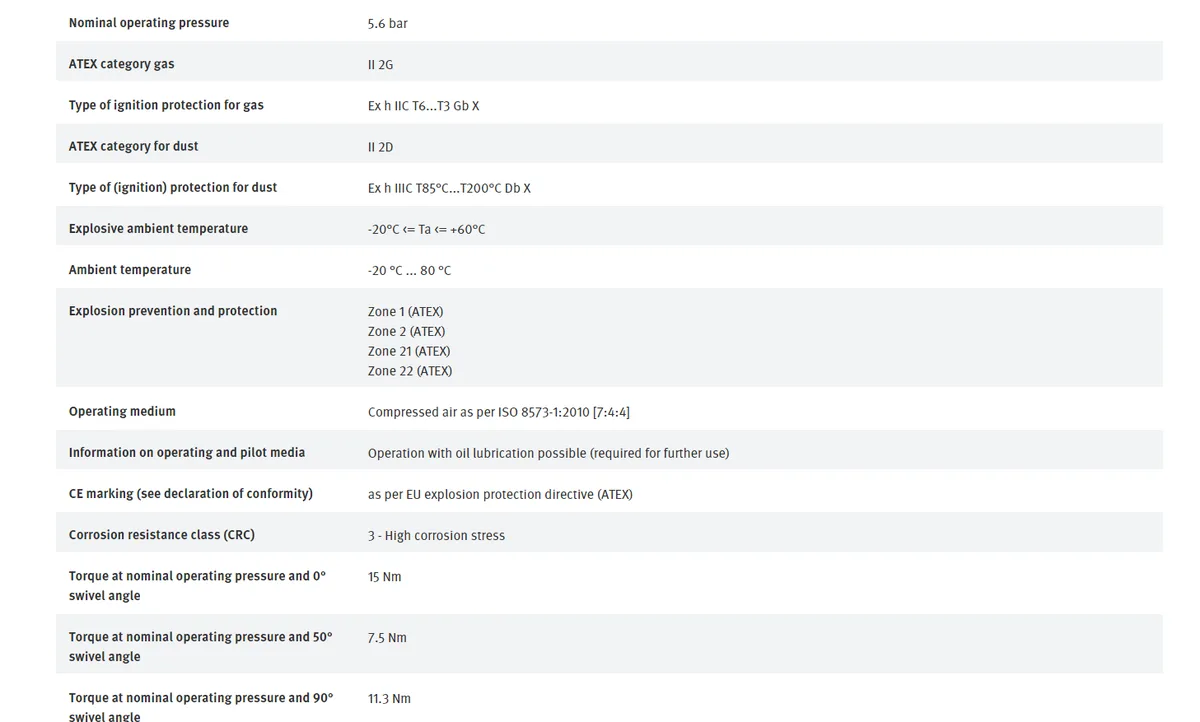

Specifications

BrandFESTO
ModelDAPS-0015-090-R-F04
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the DAPS-0015-090-R-F04 actuator using the F04 pattern, and which bolt size is often missed?

Align the four F04 mounting holes and use M5 bolts; the step most installers miss is torquing them evenly in a cross pattern to prevent binding.

What maintenance does the quarter-turn actuator need after the three-year parts coverage ends?

Inspect seals and lubricate the drive shaft annually; replace worn seals to maintain torque output and prevent air leakage.

At what rotation angle does the 90-degree stop limit the valve travel under continuous cycling?

The internal stop is fixed at 90 degrees, so the valve cannot rotate beyond that point regardless of cycle count or load.
