Red compact air cylinder, model AEVUZ-20-15-A-P-A, part 157264

Festo

Festo AEVUZ-20-15-A-P-A 157264 Compact Air Cylinder

SKU CH-XF30-Y19JK MPN AEVUZ-20-15-A-P-A

Compact air cylinder with 20 mm bore and 15 mm stroke for pneumatic automation tasks

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 20 mm bore fits tight machine spaces
  • 15 mm stroke delivers precise short travel
  • Red finish allows quick visual identification
  • Supplied as single unit in protective box
  • Three-year parts coverage with one-year labour

Compact Air Cylinder for Precision Automation

The Festo AEVUZ-20-15-A-P-A is a compact air cylinder designed for space-constrained pneumatic systems. It suits machine builders and maintenance engineers who need reliable linear motion in automated equipment. The unit arrives new and ready for integration into existing compressed-air circuits. Its compact form factor allows installation where standard cylinders cannot fit.

Upgrading from Bulkier Actuators

This cylinder replaces larger actuators when machine envelopes shrink or cycle rates increase. The jump is worthwhile when stroke length and bore diameter match the 15 and 20 specifications exactly. Teams migrating from repairable tie-rod designs gain a sealed, non-repairable unit that reduces assembly time. It is not for applications requiring user-serviceable seals or adjustable cushioning.

Sustained Operation in Continuous Cycling

Under sustained load the cylinder maintains consistent force output through millions of cycles when supplied with filtered, lubricated air. Heat buildup stays low due to the short stroke and lightweight piston. Performance depends on supply pressure stability rather than internal damping. It is not suited for high-side-load environments or extreme temperature ranges beyond standard pneumatic ratings.

Highlights

  • Compact 20 mm bore fits tight machine spaces
  • 15 mm stroke delivers precise short travel
  • Red finish allows quick visual identification
  • Supplied as single unit in protective box
  • Three-year parts coverage with one-year labour

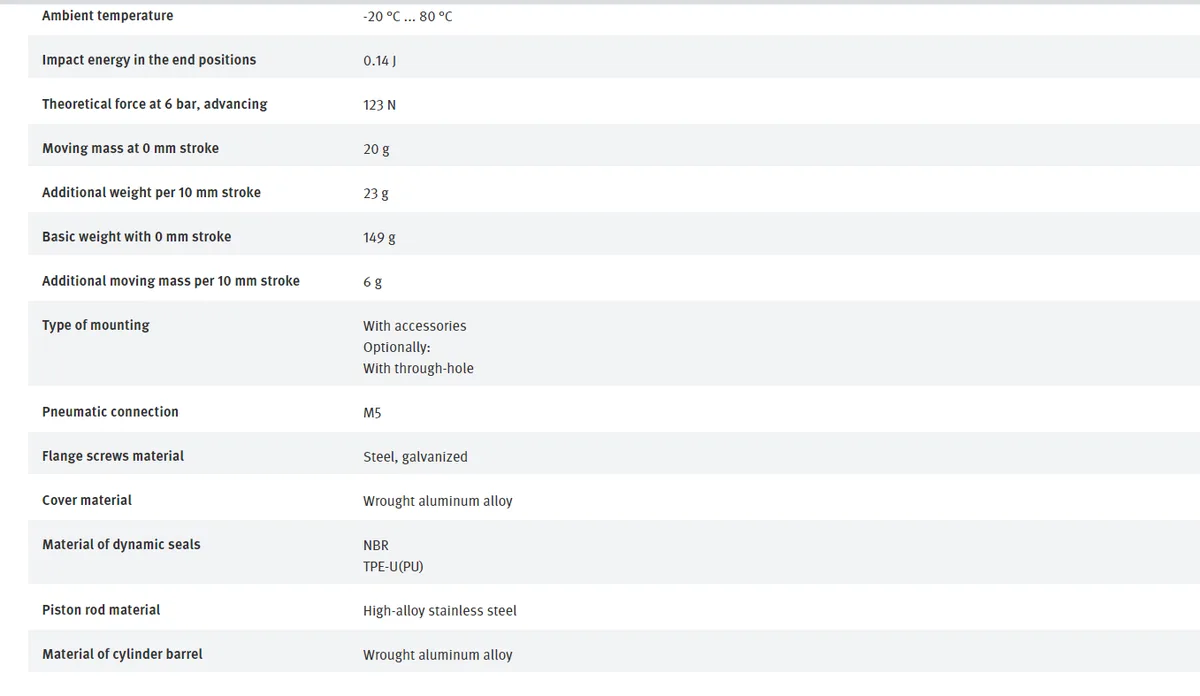

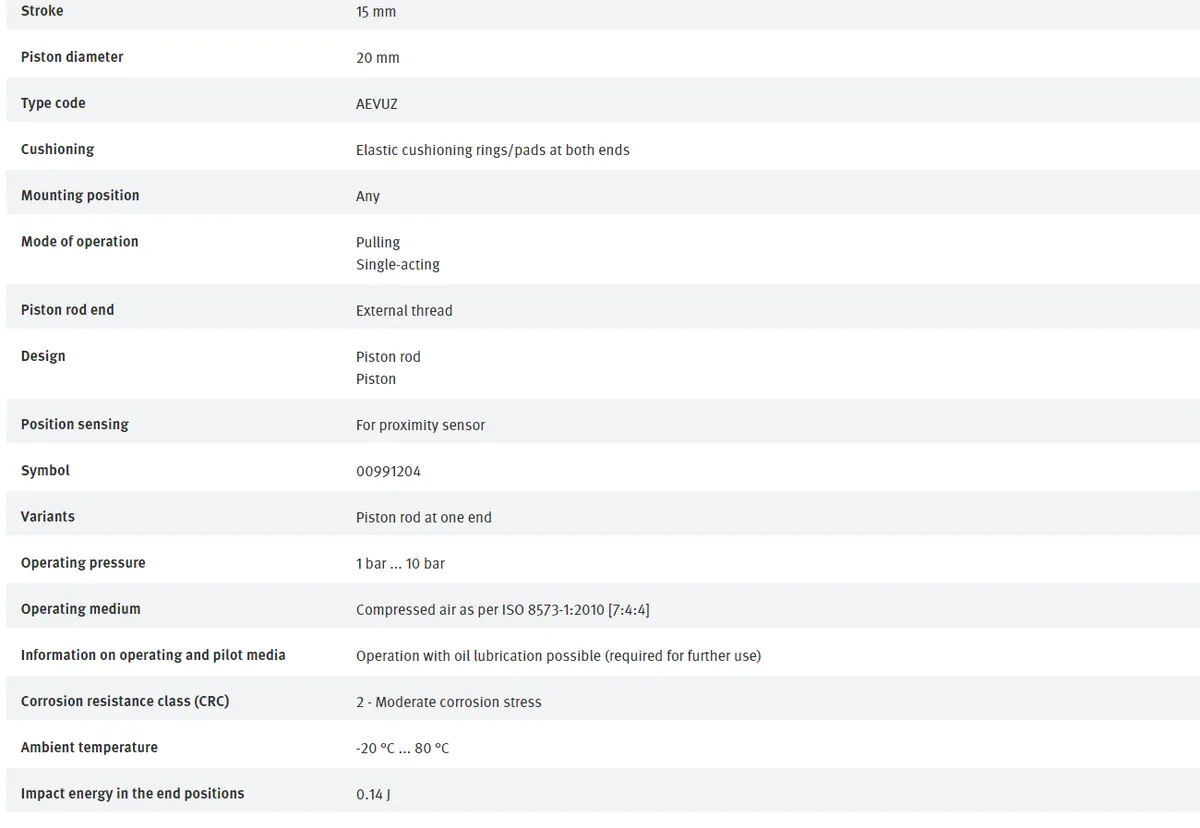

Specifications

BrandFESTO
ModelAEVUZ-20-15-A-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What mounting dimensions does the AEVUZ-20-15-A-P-A cylinder require?

The compact cylinder uses a 20 mm bore and 15 mm stroke, so the mounting pattern must match those dimensions.

Which step is often missed when installing the AEVUZ-20-15-A-P-A air cylinder?

Connecting the air supply before verifying the piston moves freely through the full 15 mm stroke is the step most installers skip.

When should the seals on the AEVUZ-20-15-A-P-A be replaced?

Plan to replace the piston seals after roughly three years of normal operation, which aligns with the parts coverage period.
