Red Festo compact air cylinder AEVUZ-100-20-A-P-A 157296

Festo

Festo AEVUZ-100-20-A-P-A 157296 Compact Air Cylinder

SKU CH-JMMC-JB6QS MPN AEVUZ-100-20-A-P-A

Compact air cylinder identified by part number AEVUZ-100-20-A-P-A 157296 for pneumatic systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 100 mm bore fits tight machine spaces
  • 20 mm stroke delivers precise linear motion
  • Red finish aids quick visual identification in assemblies
  • Supplied as single unit in protective box
  • Festo engineering ensures reliable pneumatic performance

Festo AEVUZ Compact Air Cylinder

The Festo AEVUZ-100-20-A-P-A is a compact air cylinder built for pneumatic automation tasks. It suits engineers and technicians who need reliable linear motion in space-constrained installations. The unit arrives new in a single-box pack bearing part number 157296.

Sustained pneumatic operation

Under continuous cycling the cylinder maintains consistent stroke performance thanks to its robust internal sealing. The 20 mm stroke and 100 mm bore combination delivers repeatable force without pressure drop during extended duty cycles. A three-year parts coverage reflects the manufacturer's confidence in long-term durability.

Pneumatic interface limits

The component connects through standard pneumatic ports compatible with common compressed-air supply lines. System pressure and flow rate determine the maximum actuation speed and force output available at the rod end. Builders who need longer stroke lengths or higher bore diameters must select a different cylinder variant.

Highlights

  • Compact 100 mm bore fits tight machine spaces
  • 20 mm stroke delivers precise linear motion
  • Red finish aids quick visual identification in assemblies
  • Supplied as single unit in protective box
  • Festo engineering ensures reliable pneumatic performance

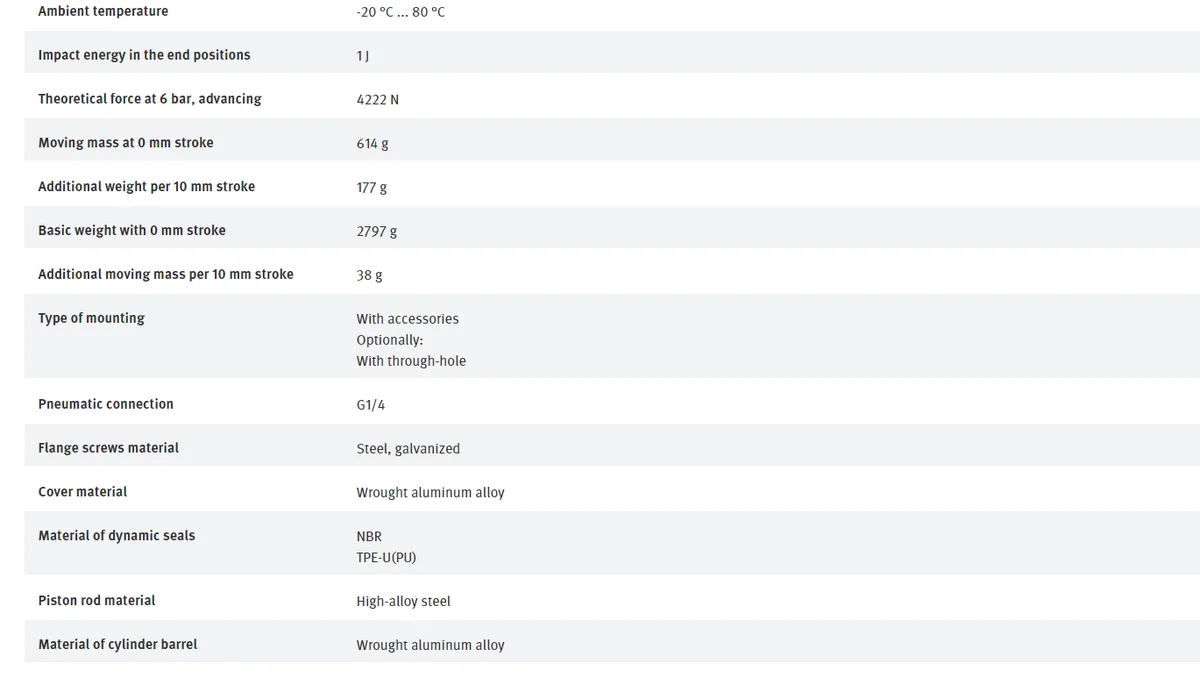

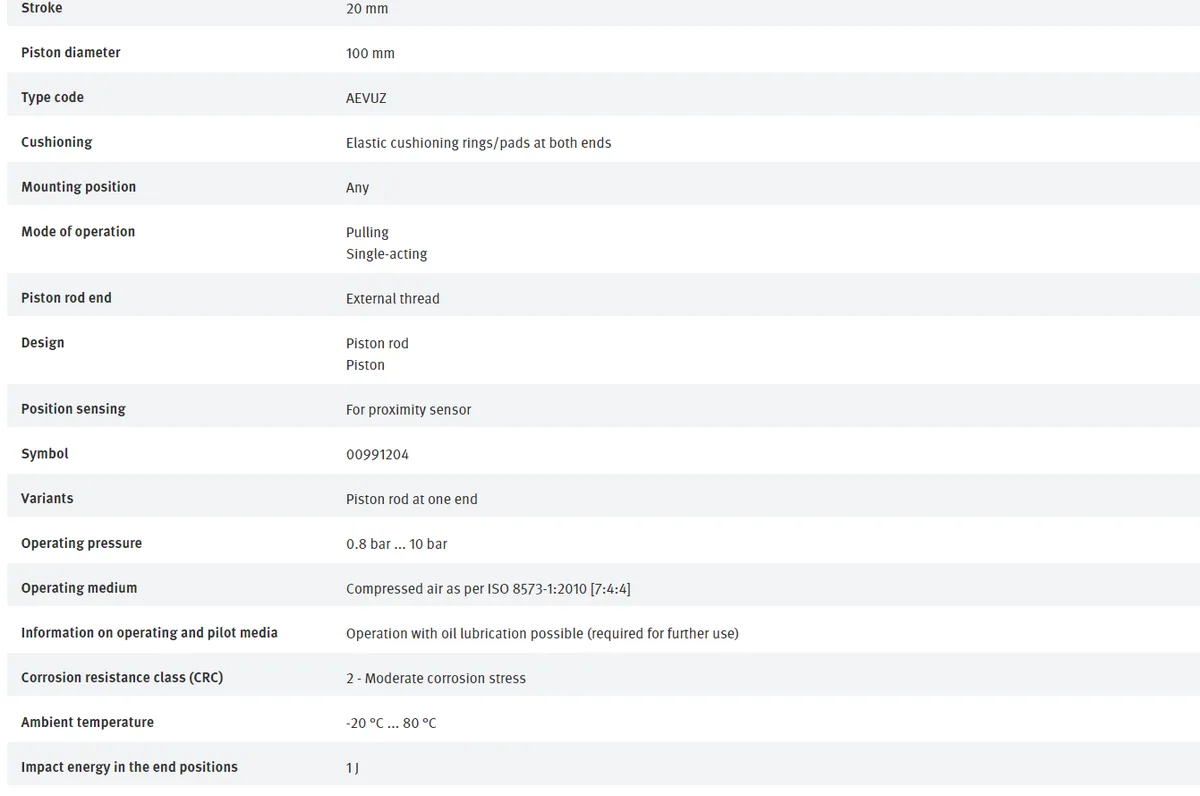

Specifications

BrandFESTO
ModelAEVUZ-100-20-A-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How much compressed air does the 100 mm bore cylinder consume during continuous all-day operation?

Air consumption depends on your supply pressure and cycle rate; the 100 mm bore and 20 mm stroke define the displaced volume per stroke.

Which fittings and mounting accessories must I already have to install the AEVUZ-100-20-A-P-A?

You will need compatible pneumatic ports, tubing, and mounting brackets that match the cylinder’s interface; these are not included in the single pack.

Will the 157296 model align with the mounting pattern on my existing Festo profile cylinders?

The compact design follows Festo’s standard mounting dimensions, so it fits the same footprint as equivalent bore-size profile cylinders.
