Red compact air cylinder with silver rod, boxed new

Festo

Festo AEVUZ-100-10-A-P-A 157294 Compact Air Cylinder

SKU CH-EK77-T7SCN MPN AEVUZ-100-10-A-P-A

Compact air cylinder AEVUZ-100-10-A-P-A 157294 with 100 mm bore and 10 mm stroke for pneumatic automation

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 100 mm bore fits tight machine spaces
  • 10 mm stroke delivers precise short linear motion
  • Festo pneumatic engineering ensures reliable repeatable actuation
  • Red anodised finish resists corrosion in harsh environments
  • New condition guarantees full factory performance from day one

Compact Air Cylinder for Pneumatic Systems

The Festo AEVUZ-100-10-A-P-A is a compact air cylinder built for automated machinery and process equipment. It suits engineers and maintenance teams who need reliable linear actuation in space-constrained installations. The unit arrives new in a single pack identified by part number 157294.

Build Quality and Mounting Implications

A red finish provides visible identification inside cabinets or on machine frames where multiple actuators are fitted. The compact body allows installation in tight envelopes without sacrificing stroke length. Standard mounting interfaces align with common pneumatic circuit layouts for straightforward integration.

Practical Limits of the Pneumatic Interface

Operation depends on a clean, regulated compressed-air supply; pressure or flow outside the cylinder's rated range will reduce force output or cause erratic motion. The 10 mm stroke and 100 mm bore define the maximum travel and thrust available for the application. Sizing the upstream valve and tubing to match these parameters is essential for consistent cycle times.

Highlights

  • Compact 100 mm bore fits tight machine spaces
  • 10 mm stroke delivers precise short linear motion
  • Festo pneumatic engineering ensures reliable repeatable actuation
  • Red anodised finish resists corrosion in harsh environments
  • New condition guarantees full factory performance from day one

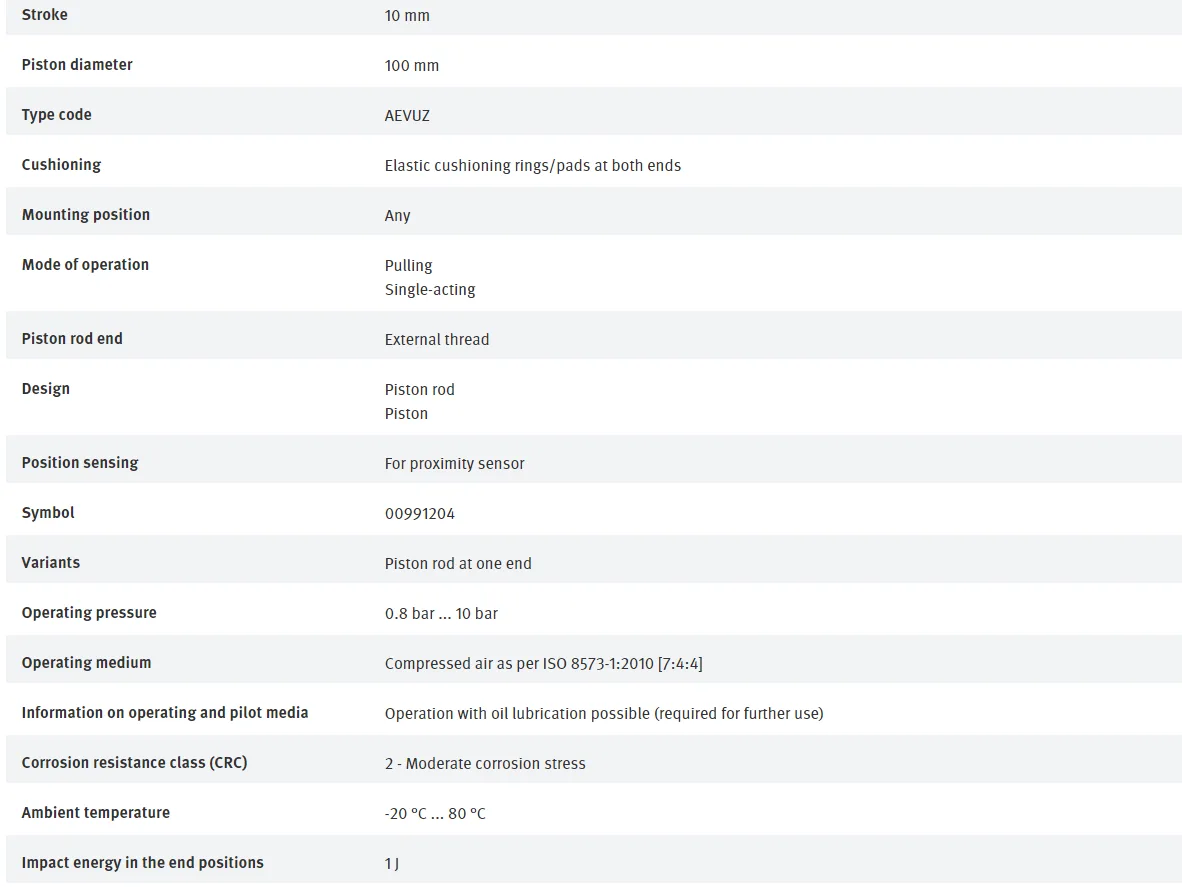

Specifications

BrandFESTO
ModelAEVUZ-100-10-A-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What pneumatic interface does the AEVUZ-100-10-A-P-A use and what pressure does it handle?

The cylinder uses standard pneumatic ports and is rated for 10 bar operating pressure.

What are the bore and stroke of the AEVUZ-100-10-A-P-A for mounting clearance?

The cylinder has a 100 mm bore and a 10 mm stroke, giving a compact overall length for tight machine frames.

How is the AEVUZ-100-10-A-P-A mounted and which step is often missed?

It mounts via threaded holes on the end caps; the step often missed is aligning the load to the piston rod axis to avoid side loading.
