Festo

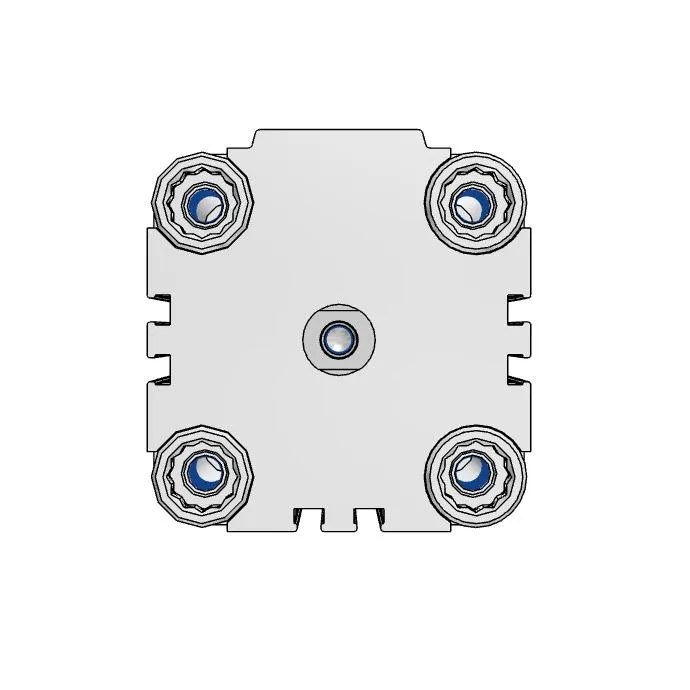

Festo ADVU-63-60-P-A2 Compact Cylinder 60 mm Stroke
Compact pneumatic cylinder with 60 mm stroke and 63 mm bore for linear motion
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Compact cylinder delivers 60 mm stroke for precise linear motion
- 63 mm bore diameter provides strong force in tight spaces
- Festo part 156566 ensures exact replacement compatibility
- Red finish allows quick visual identification on the line
- Boxed as a single pack for immediate installation
Compact cylinder for pneumatic systems
The Festo ADVU-63-60-P-A2 is a compact cylinder built for linear motion tasks in automated machinery. It suits engineers and maintenance teams who need reliable actuation in space-constrained installations. The unit carries part number 156566 and is supplied new in a single pack.
Red finished housing with standard mounting
The cylinder body features a red finish that aids visual identification during inspection rounds. Its compact form factor allows direct integration into existing pneumatic circuits without extensive rework. The boxed unit includes the cylinder only, ready for connection to standard fittings and tubing.
Verify bore and stroke match your circuit
Before ordering, confirm that a 63 mm bore and 60 mm stroke align with the force and travel requirements of your application. Check that available air pressure and flow rates meet the cylinder’s operating envelope. Ensure mounting style and port threads correspond to your current manifold or valve block layout.
Highlights
- Compact cylinder delivers 60 mm stroke for precise linear motion
- 63 mm bore diameter provides strong force in tight spaces
- Festo part 156566 ensures exact replacement compatibility
- Red finish allows quick visual identification on the line
- Boxed as a single pack for immediate installation
Specifications
| Brand | Festo |
|---|---|
| Model | ADVU-63-60-P-A2 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What mounting style does the ADVU-63-60-P-A2 compact cylinder use?
The ADVU-63-60-P-A2 uses a standard compact cylinder mounting pattern with threaded body and end caps for direct machine integration.
What installation step is commonly missed when fitting the ADVU-63-60-P-A2?
Ensure the piston rod is fully retracted and aligned before tightening mounting bolts to prevent side loading and seal damage.
What pneumatic port thread does the ADVU-63-60-P-A2 accept?
The ADVU-63-60-P-A2 features G1/8 pneumatic ports for standard compressed air connections.
