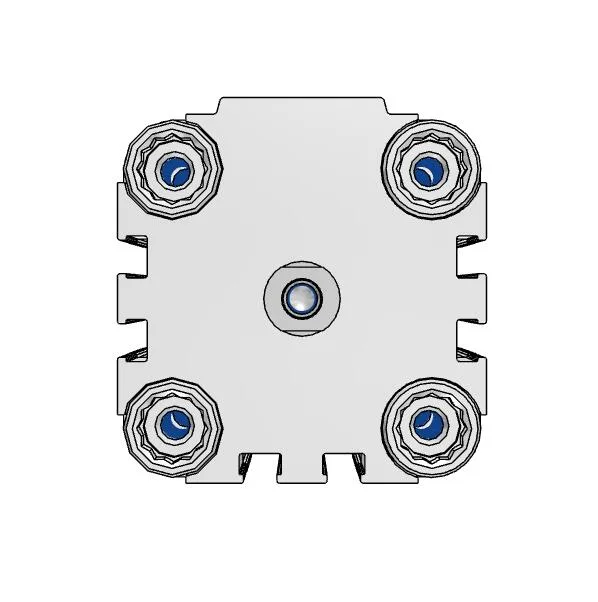

Festo ADVU-40-5-P-A Compact Cylinder 156540 5 mm

Festo ADVU-40 Compact Cylinder

The Festo ADVU-40-5-P-A is a compact pneumatic cylinder designed for linear motion tasks in automation systems. Its short stroke makes it suitable for applications requiring precise, limited movement in confined spaces. Engineers and maintenance technicians select this model for reliable actuation in packaging, assembly, or material handling equipment. The unit arrives new in a single pack, ready for integration into existing pneumatic circuits.

Upgrading from larger bore actuators

This cylinder replaces bulkier actuators where installation space is restricted and force requirements match the 40 mm bore capacity. The jump is worth it when machine designs demand a shorter overall length without sacrificing the mounting pattern compatibility of the ADVU series. It fits applications where a standard profile cylinder would interfere with adjacent components or exceed the available stroke envelope. The 156540 part number ensures correct identification during replacement planning.

Direct mounting simplifies installation

The compact body allows direct mounting onto machine frames using standard ADVU mounting accessories, reducing assembly time compared to cylinders requiring intermediate brackets. Correct alignment of the piston rod with the load path is critical; misalignment causes premature seal wear and bearing damage. Ensure the air supply is filtered and lubricated according to Festo specifications to prevent contamination-related failures. Verify the 5 mm stroke meets the mechanical limit requirements before finalising the circuit design.
