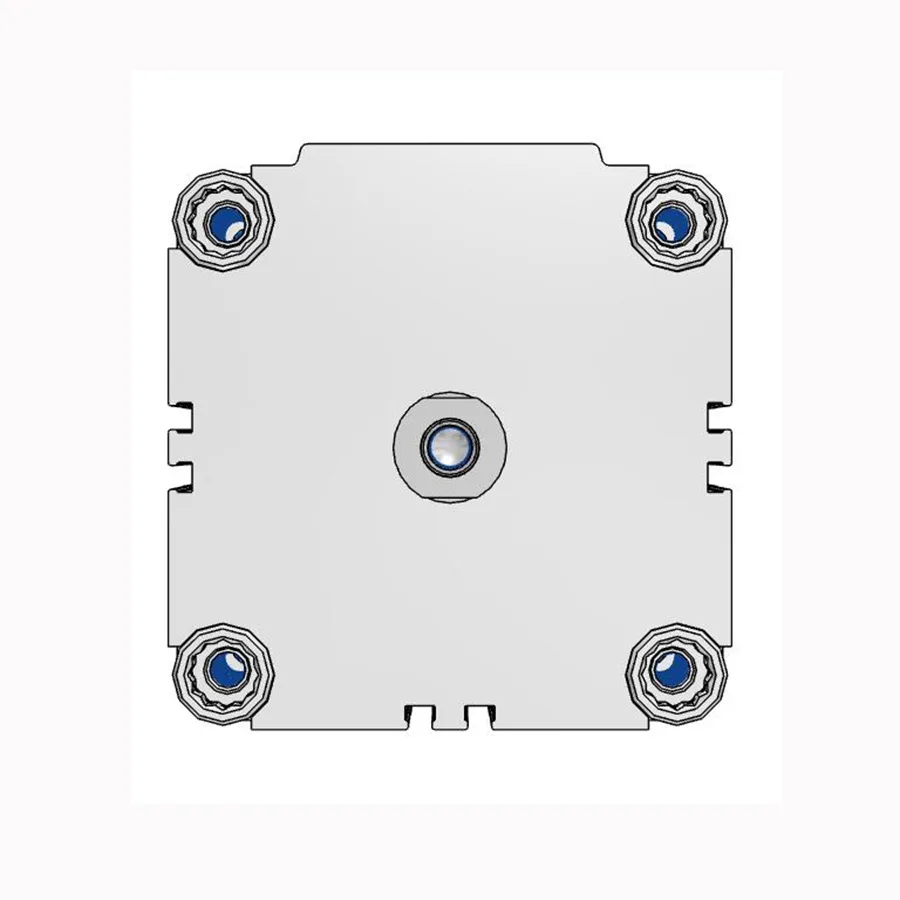

Red Festo ADVU-100-15-P-A compact cylinder 15 mm stroke

Festo

Festo ADVU-100-15-P-A Compact Cylinder 15 mm stroke

SKU CH-78DM-61XJA MPN ADVU-100-15-P-A

Compact pneumatic cylinder with 15 mm stroke and 100 mm bore for precise linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact cylinder delivers short 15 mm stroke for precise positioning
  • 100 mm bore diameter provides strong force in tight spaces
  • Festo engineering ensures reliable pneumatic performance
  • Test equipment classification suits measurement and control tasks
  • Red finish allows quick visual identification in assemblies

Compact Cylinder 100 mm bore

The Festo ADVU-100-15-P-A is a compact pneumatic cylinder built for automation tasks that demand precise linear motion. Its 100 mm bore suits machine builders and maintenance teams fitting actuators into tight machine frames. The unit arrives new in a single pack, ready for installation in production or test rigs.

15 mm stroke capacity

A 15 mm stroke delivers short, repeatable travel for clamping, positioning or ejecting small workpieces. The limited stroke length means it handles rapid cycles in confined spaces but cannot replace longer-stroke cylinders needed for extended push or pull operations. Model number 156578 identifies this specific variant for ordering and spares tracking.

Direct mount integration

The compact body mounts directly to machine structures without bulky brackets, freeing space around the cylinder for sensors, grippers or adjacent actuators. Standard pneumatic ports accept common fittings so the cylinder integrates into existing compressed-air circuits. No electrical wiring is required, simplifying the pneumatic circuit design.

Highlights

  • Compact cylinder delivers short 15 mm stroke for precise positioning
  • 100 mm bore diameter provides strong force in tight spaces
  • Festo engineering ensures reliable pneumatic performance
  • Test equipment classification suits measurement and control tasks
  • Red finish allows quick visual identification in assemblies

Specifications

BrandFesto
ModelADVU-100-15-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Will the ADVU-100-15-P-A compact cylinder fit existing 100 mm bore mounting points on older Festo equipment?

Yes, the 100 mm bore diameter matches standard Festo mounting patterns, so it aligns with legacy 100 mm bore fixtures without adapter plates.

How can I verify the cylinder achieves its full 15 mm stroke after installation?

Apply rated pressure and measure the piston rod travel; it should extend exactly 15 mm from the fully retracted position.

Does the box include mounting brackets or fittings, or must they be ordered separately?

The box contains one ADVU-100-15-P-A compact cylinder only; mounting brackets, fittings and tubing are sold separately.
