Red Festo ADVC-40-15-A-P short-stroke cylinder 188249

Festo

Festo ADVC-40-15-A-P short-stroke cylinder 188249

SKU CH-1WDV-GXW9J MPN ADVC-40-15-A-P

stroke cylinder with 40 mm bore and 15 mm stroke, supplied new in a single pack

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 15 mm stroke for short-range actuation
  • 40 mm bore delivers compact force
  • Part 188249 ensures exact replacement fit
  • Red finish aids quick visual identification
  • Supplied as a single unit in a box

stroke cylinder specification

The Festo ADVC-40-15-A-P is a compact pneumatic actuator designed for short linear travel in automated systems. It delivers a 15 mm stroke within a 40 mm bore size for precise positioning tasks. The unit arrives new and ready for installation in machine-building applications.

Automation engineers and machine builders

This cylinder suits engineers building pick-and-place units, clamping fixtures or feeding mechanisms that need repeatable short strokes. Buyers requiring longer travel distances or rotary motion should look at alternative actuator types.

15 mm stroke length

The 15 mm stroke is the critical dimension that determines whether this cylinder fits the required motion envelope. Verify the needed travel against this figure before ordering part number 188249.

Highlights

  • 15 mm stroke for short-range actuation
  • 40 mm bore delivers compact force
  • Part 188249 ensures exact replacement fit
  • Red finish aids quick visual identification
  • Supplied as a single unit in a box

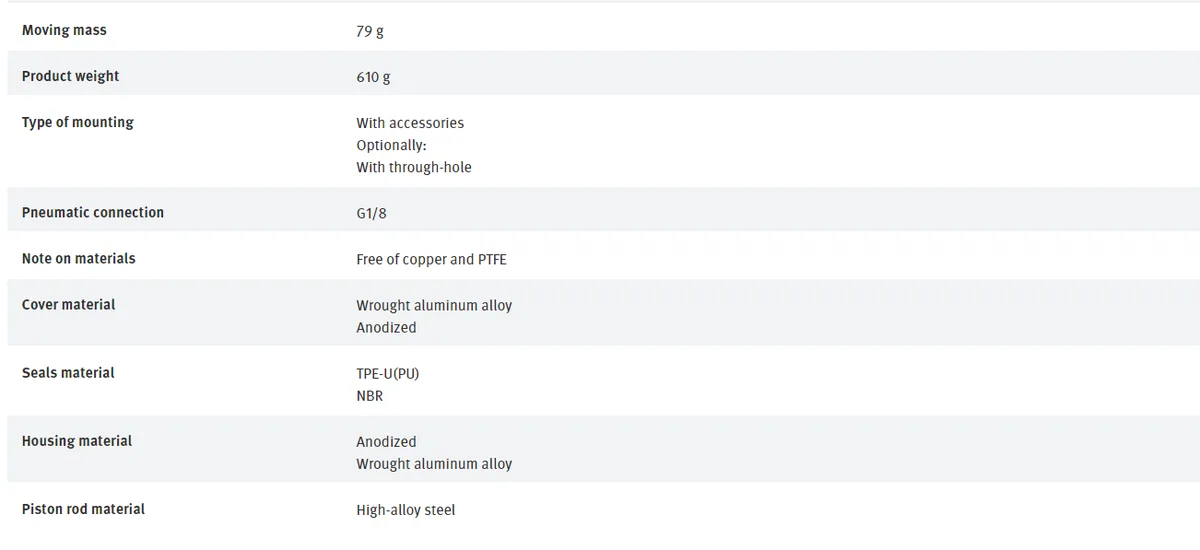

Specifications

BrandFESTO
ModelADVC-40-15-A-P
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the ADVC-40-15-A-P cylinder and what alignment step is often missed?

Use the standard 40 mm mounting pattern; the step often missed is ensuring the piston rod is perfectly parallel to the load guide before tightening, otherwise side loads will wear the bearing prematurely.

Which wear parts on the ADVC-40-15-A-P will need replacement after extended cycling?

The piston seal and rod wiper are the primary wear items; plan to replace them when leakage or reduced cushioning appears, typically after several million cycles.

What performance limit appears first when the ADVC-40-15-A-P runs continuous high-speed cycles?

Heat buildup in the cylinder body limits sustained speed; the 15 mm stroke dissipates heat slowly, so cycle rate must be reduced once the body temperature reaches the seal rating.
