Red compact air cylinder, model ADNGF-40-30-P-A

Festo

Festo ADNGF-40-30-P-A 554253 Compact Air Cylinder

SKU CH-4W4P-YA1WW MPN ADNGF-40-30-P-A

Compact air cylinder with a 40 mm bore and 30 mm stroke for pneumatic automation tasks

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 40 mm bore fits tight machine spaces
  • 30 mm stroke delivers precise linear motion
  • Red finish simplifies visual inspection on site
  • 3-year parts coverage protects long-term uptime
  • 1-year labour support reduces service cost

Compact pneumatic actuator

The Festo ADNGF-40-30-P-A is a double-acting compact cylinder built for short-stroke automation tasks. Its 40 mm bore and 30 mm stroke suit confined machine layouts where space is limited. The unit ships new in a single box under part number 554253. Red finish identifies the model visually on the assembly line.

Engineers specifying short-stroke linear motion

This cylinder suits applications that need a 30 mm stroke at 40 mm bore diameter. It does not suit systems requiring longer travel, larger bore force, or non-pneumatic actuation. Buyers needing different stroke lengths or bore sizes should select another variant. The three-year parts and one-year labour coverage applies only to this specific model.

Stroke length defines fit

The 30 mm stroke is the critical dimension that decides whether this cylinder matches the mechanical design. Verify the required travel against this figure before ordering. Bore diameter of 40 mm sets the force envelope at your supply pressure. Part number 554253 confirms the exact variant for procurement.

Highlights

  • Compact 40 mm bore fits tight machine spaces
  • 30 mm stroke delivers precise linear motion
  • Red finish simplifies visual inspection on site
  • 3-year parts coverage protects long-term uptime
  • 1-year labour support reduces service cost

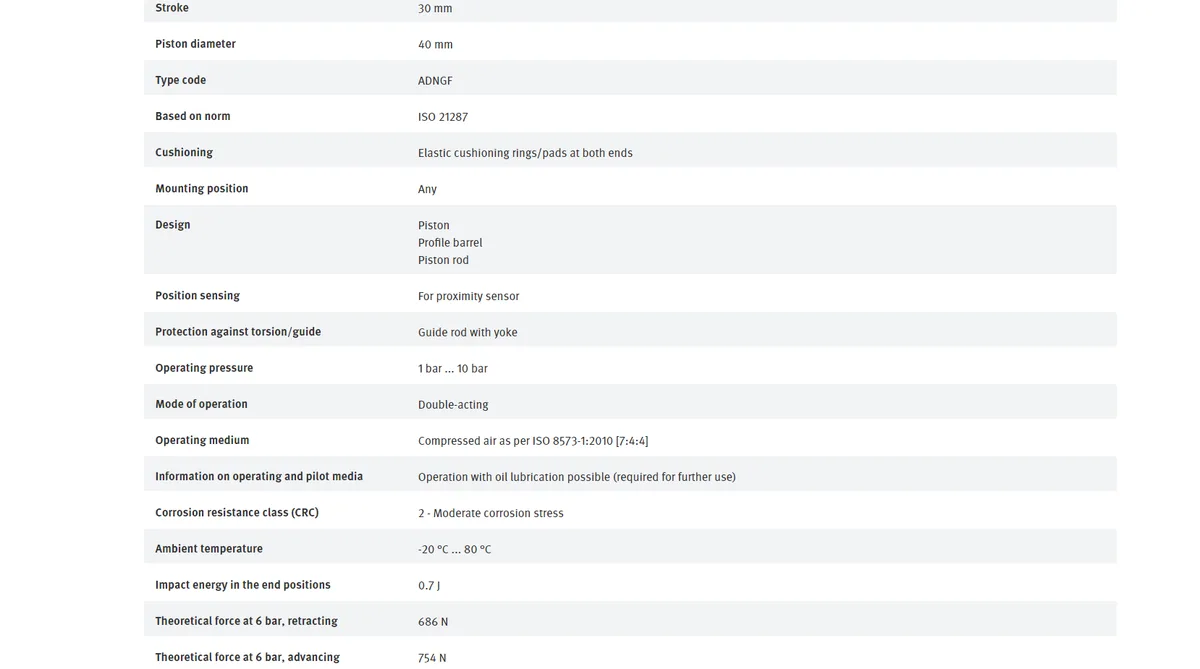

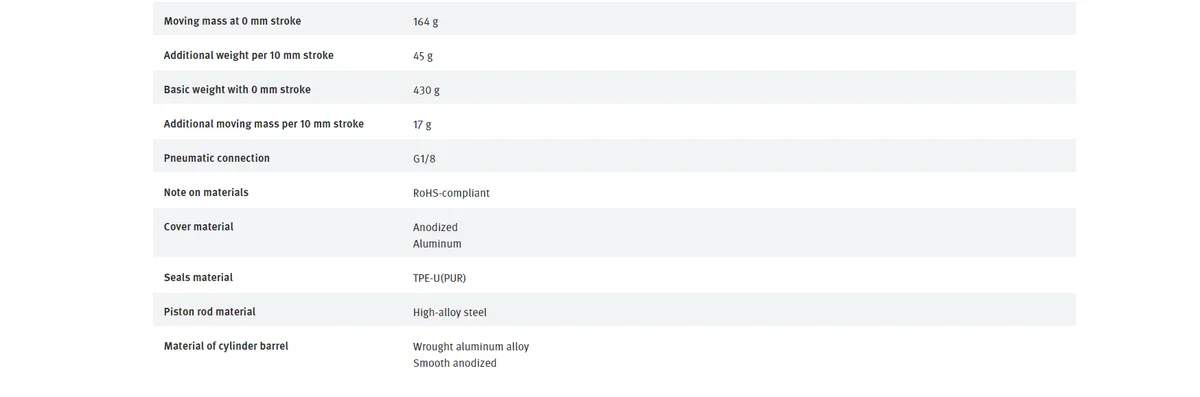

Specifications

BrandFESTO
ModelADNGF-40-30-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Will the 40 mm bore fit the mounting pattern on my existing pneumatic manifold?

The cylinder has a 40 mm bore and 30 mm stroke; compare those dimensions to your manifold’s bolt spacing and port centres before installation.

How can I verify the ADNGF-40-30-P-A is cycling correctly after piping it up?

Apply compressed air and watch the piston rod extend 30 mm smoothly; listen for consistent exhaust noise and check that the rod returns without binding.

Does the 554253 box include fittings or must I order them separately?

The package contains one compact air cylinder only; pneumatic fittings, tubing and mounting brackets are not supplied and must be purchased separately.
