Red compact air cylinder ADN-63-60-A-P-A 536339 in box

Festo

Festo ADN-63-60-A-P-A 536339 Compact Air Cylinder

SKU CH-KCDM-1MXVJ MPN ADN-63-60-A-P-A

Compact air cylinder with 63 mm bore and 60 mm stroke for pneumatic motion control

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 63 mm bore fits tight machine spaces
  • 60 mm stroke delivers precise linear motion
  • Festo 536339 model ensures pneumatic system compatibility
  • Red finish allows quick visual identification on assembly lines
  • Three-year parts coverage supports long-term maintenance planning

Compact air cylinder overview

The Festo ADN-63-60-A-P-A is a compact pneumatic cylinder designed for linear motion tasks in automation and machinery. It delivers a 60 mm stroke within a 63 mm bore size for space-constrained installations. The unit is supplied new in a single pack under part number 536339. Its red finish aids visual identification in complex assemblies.

Suitable applications and limits

This cylinder suits engineers building or maintaining pneumatic systems that require a short-stroke, medium-bore actuator. It is not intended for hydraulic circuits, high-temperature environments beyond standard pneumatic ratings, or applications needing adjustable stroke length. Buyers who need integrated position sensing or corrosion-resistant variants should verify compatibility before ordering.

Decisive specification

The 60 mm stroke combined with a 63 mm bore defines the working envelope and force output of this actuator. Confirm that the required travel distance and cylinder diameter match these figures exactly. The part number 536339 ensures correct identification when ordering replacements or spares.

Highlights

  • Compact 63 mm bore fits tight machine spaces
  • 60 mm stroke delivers precise linear motion
  • Festo 536339 model ensures pneumatic system compatibility
  • Red finish allows quick visual identification on assembly lines
  • Three-year parts coverage supports long-term maintenance planning

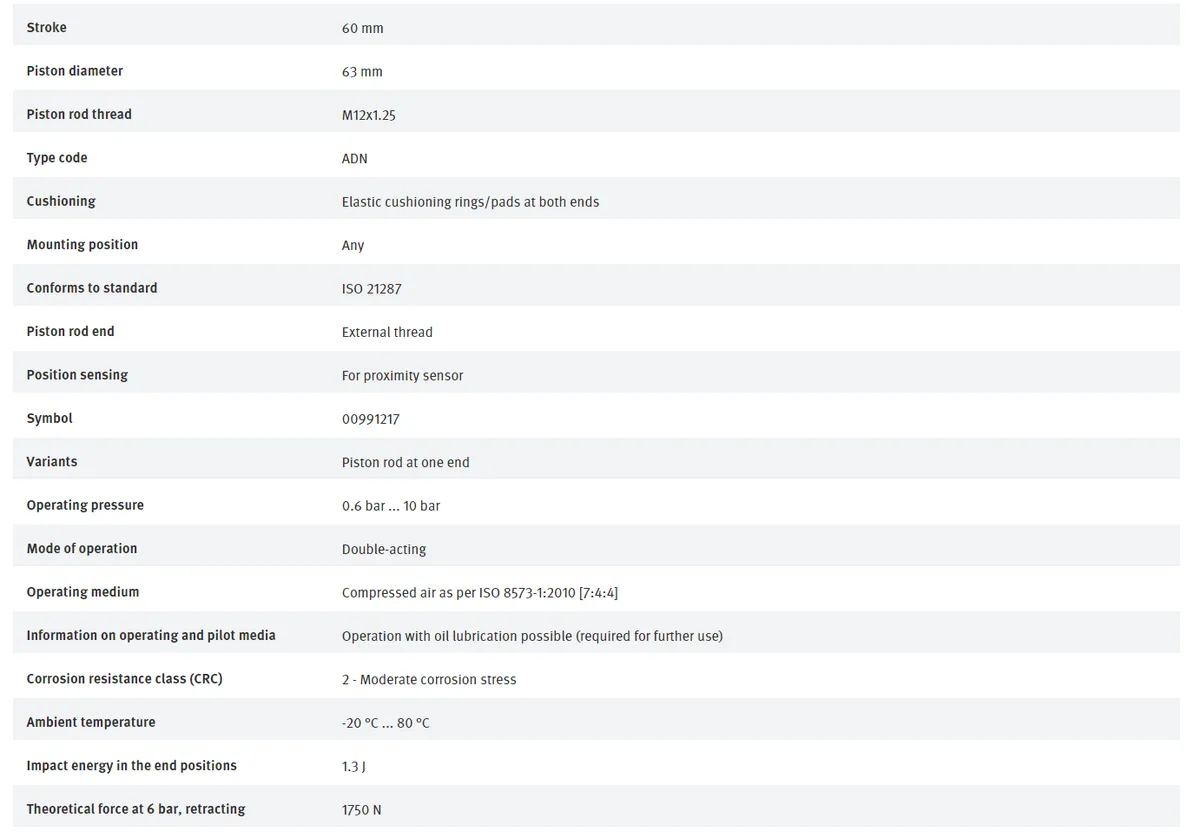

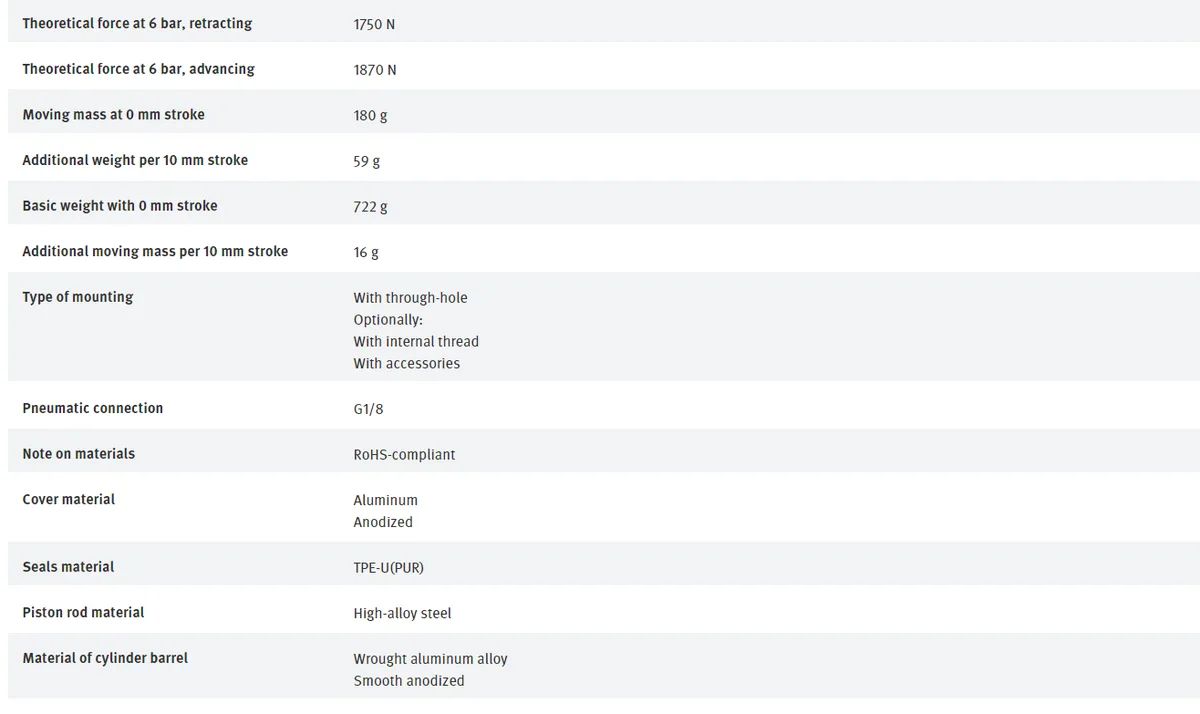

Specifications

BrandFESTO
ModelADN-63-60-A-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I mount the ADN-63-60-A-P-A cylinder with its 63 mm bore, and which alignment step is often missed?

Use the standard ISO mounting pattern for the 63 mm bore; the step most often missed is checking piston-rod concentricity with a dial indicator before tightening the flange bolts.

Which wear parts on the ADN-63-60-A-P-A will need replacement after extended cycling?

The piston seal, rod seal and cushioning seals are the primary wear items; plan to replace them as a kit when leakage or reduced cushioning appears.

What performance limit appears first on the ADN-63-60-A-P-A during continuous high-speed operation?

The cushioning capacity at the 60 mm stroke end is the first limit reached; excessive kinetic energy causes hard end-of-stroke impact before overheating occurs.
