Festo ADN-63-30-I-P-A 63 30 536346 electrician tool

Compact Air Cylinder for Automation

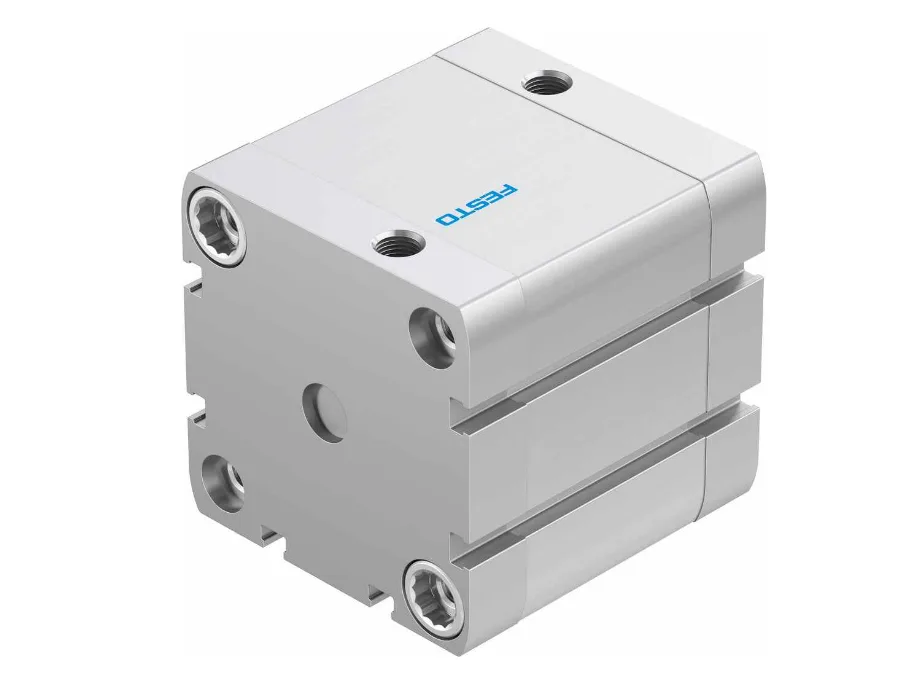

The Festo ADN-63-30-I-P-A is a compact pneumatic cylinder designed for machine builders and maintenance engineers who need reliable linear motion in tight spaces. It suits automated assembly, clamping and positioning tasks where a short stroke and small footprint are required. The unit arrives new in a single pack, ready for integration into existing pneumatic circuits. Its 3-year parts coverage reflects the manufacturer's confidence in long-term operation.

30 mm Stroke and 63 mm Bore Capacity

With a 30 mm stroke and 63 mm bore, this cylinder delivers sufficient force for light to medium loads such as gate actuation, part ejection or fixture clamping. The compact body keeps the overall length short, allowing installation where standard ISO cylinders would not fit. It runs out of travel quickly in applications needing extended reach, so longer-stroke variants are necessary for traversing conveyors or large door mechanisms.

Pneumatic Interface and Mounting Constraints

The cylinder connects via standard pneumatic ports and mounts using the integrated threads or optional accessories not included in this pack. System pressure and flow rate determine the actual speed and force, so the installer must size valves and tubing accordingly. Without position sensing or cushioning features listed, the unit is best suited to applications where hard stops are acceptable or external damping is provided.
