Red compact air cylinder, model ADN-40-30-I-P-A 536304

Festo

Festo ADN-40-30-I-P-A 536304 Compact Air Cylinder

SKU CH-JY8H-ABTNH MPN ADN-40-30-I-P-A

Compact air cylinder with 40 mm bore and 30 mm stroke for pneumatic automation

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 40 mm bore suits tight machine spaces
  • 30 mm stroke delivers precise linear motion
  • Double-acting pneumatic design powers both directions
  • Durable Festo build rated for 3-year parts coverage
  • Red finish aids quick visual identification on assembly lines

Compact air cylinder for automation

The Festo ADN-40-30-I-P-A is a compact air cylinder built for linear motion tasks in pneumatic systems. Its short body fits tight machine layouts while delivering reliable push and pull force. The unit arrives new and ready for installation.

Suited for single-acting stroke needs

This cylinder suits engineers who need a 30 mm stroke in a 40 mm bore package for clamping, feeding or positioning jobs. It is not for applications that require double-acting control, adjustable cushioning or magnetic piston sensing.

Stroke length decides fit

The 30 mm stroke determines whether the cylinder matches the mechanical travel your design demands. Verify the required travel against this figure before ordering part number 536304.

Highlights

  • Compact 40 mm bore suits tight machine spaces
  • 30 mm stroke delivers precise linear motion
  • Double-acting pneumatic design powers both directions
  • Durable Festo build rated for 3-year parts coverage
  • Red finish aids quick visual identification on assembly lines

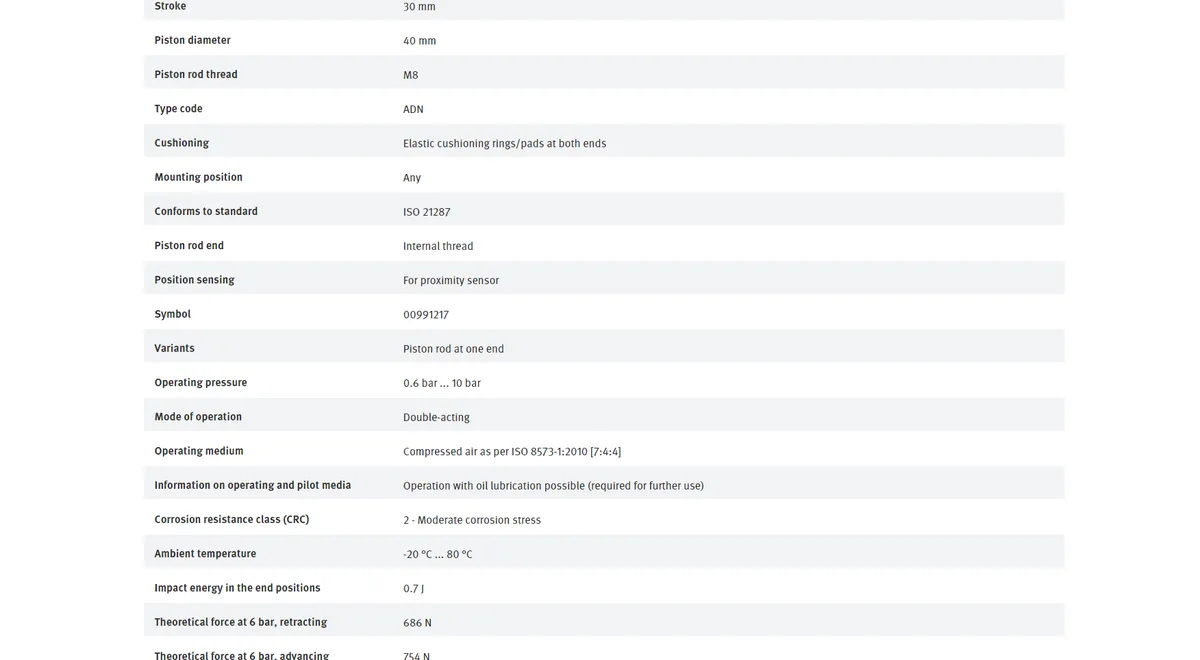

Specifications

BrandFESTO
ModelADN-40-30-I-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What comes in the box with the ADN-40-30-I-P-A compact air cylinder?

The cylinder is supplied as a single unit in a box; mounting hardware and tubing fittings are sold separately.

How do I choose between the 30 mm stroke and 40 mm bore versions of this model?

The 30 mm figure is the stroke length and the 40 mm figure is the bore diameter; both are fixed for this part number.

What does the 30 mm stroke mean when the cylinder is installed in a machine?

It means the piston rod extends 30 mm from the fully retracted position to the fully extended position.
