Red compact air cylinder, model ADN-16-40-I-P-A

Festo

Festo ADN-16-40-I-P-A 536232 Compact Air Cylinder 16 40

SKU CH-S2RH-6T7JV MPN ADN-16-40-I-P-A

Compact pneumatic cylinder with 16 mm bore and 40 mm stroke for automated linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 16 mm bore fits tight machine spaces
  • 40 mm stroke delivers precise linear motion
  • Festo 536232 build quality ensures reliable pneumatic performance
  • New condition guarantees full factory specification
  • Red finish provides clear visibility in industrial settings

Compact Air Cylinder 16 mm bore

The Festo ADN-16-40-I-P-A is a compact pneumatic cylinder with a 16 mm bore and 40 mm stroke. It suits automation tasks where space is limited and reliable linear motion is required. The unit arrives new in a single pack.

Replaces larger tie-rod cylinders

This compact body fits where traditional tie-rod designs cannot, reducing machine footprint without sacrificing force at the rated pressure. The upgrade is worthwhile when cycle speed and mounting flexibility matter more than maximum stroke length.

Direct mount with female thread

Installation uses the integral female thread on the piston rod and the cylinder body mounting holes. Common issues include misaligned loads causing side-load wear and inadequate filtration leading to seal contamination.

Highlights

  • Compact 16 mm bore fits tight machine spaces
  • 40 mm stroke delivers precise linear motion
  • Festo 536232 build quality ensures reliable pneumatic performance
  • New condition guarantees full factory specification
  • Red finish provides clear visibility in industrial settings

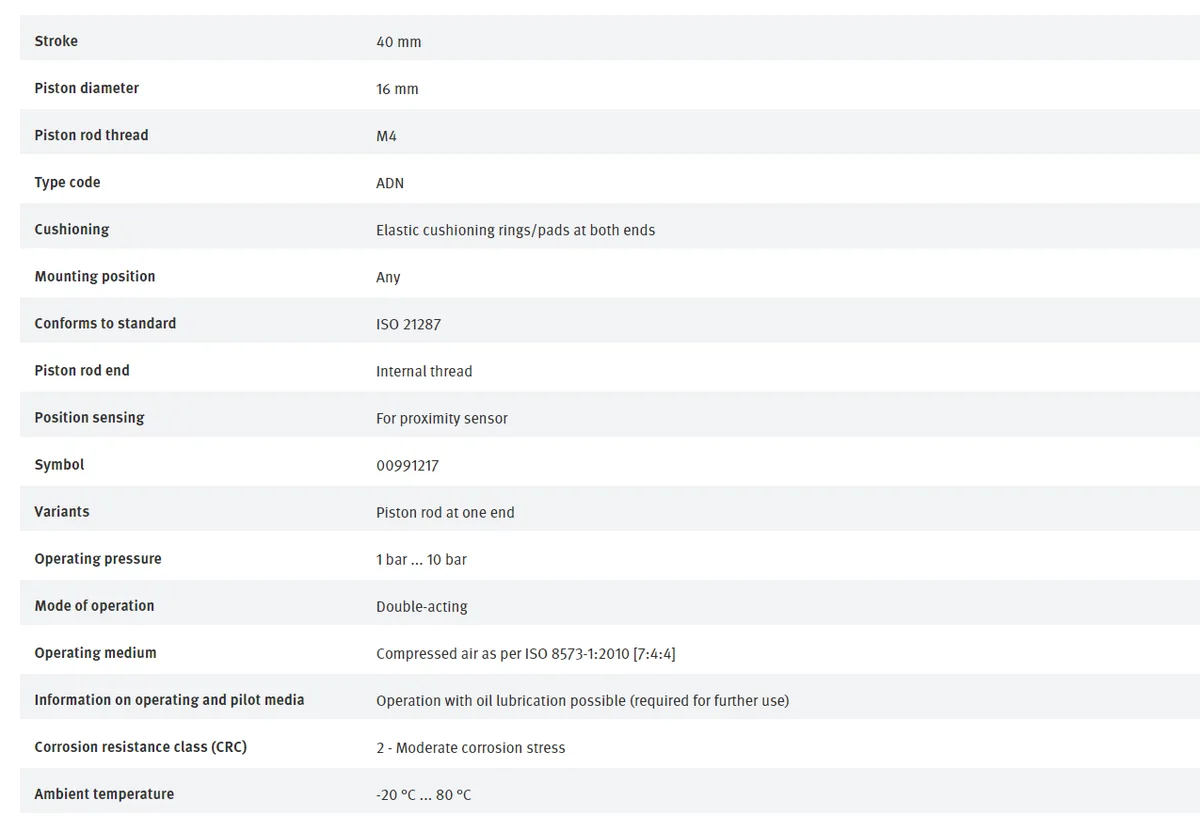

Specifications

BrandFESTO
ModelADN-16-40-I-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What mounting thread size does the ADN-16-40-I-P-A cylinder use for installation?

The cylinder uses a standard M16 mounting thread for secure attachment to machinery frames or brackets.

Which step is commonly missed when installing the ADN-16-40-I-P-A compact air cylinder?

Installers often forget to apply thread sealant to the pneumatic port connections, causing air leaks under pressure.

How often should the piston seals be replaced on the ADN-16-40-I-P-A model 536232?

Piston seals typically require replacement after 3 years of continuous operation or when reduced stroke force is detected.
