Red compact air cylinder in box

Festo

Festo ADN-16-25-I-P-A 536230 Compact Air Cylinder

SKU CH-9QW7-HSC2Z MPN ADN-16-25-I-P-A

Compact air cylinder with 16 mm bore and 25 mm stroke for pneumatic systems

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 16 mm bore for compact installation
  • 25 mm stroke delivers precise linear motion
  • Double-acting design enables push and pull control
  • Red anodised finish resists corrosion in harsh environments
  • Part number 536230 ensures exact replacement matching

Compact Air Cylinder for Pneumatic Automation

The Festo ADN-16-25-I-P-A is a compact air cylinder built for short-stroke linear motion in pneumatic systems. It carries the manufacturer part number 536230 and is supplied new in a single pack. The unit suits machine builders and maintenance teams who need a space-saving actuator with a 25 mm stroke.

Suited for Tight Installations.

This cylinder fits applications where mounting space is limited and a 25 mm stroke meets the motion requirement. It is not intended for setups that demand longer travel distances or larger bore sizes. Buyers who need extended linear movement or higher force output should consider alternative actuator styles.

Boxed Unit with Manufacturer Coverage

The product ships as one unit in a box, ready for installation. Festo provides a three-year parts period and a one-year labour period, so replacement components and service support are available during that time. No additional accessories or software are included in the pack.

Highlights

  • 16 mm bore for compact installation
  • 25 mm stroke delivers precise linear motion
  • Double-acting design enables push and pull control
  • Red anodised finish resists corrosion in harsh environments
  • Part number 536230 ensures exact replacement matching

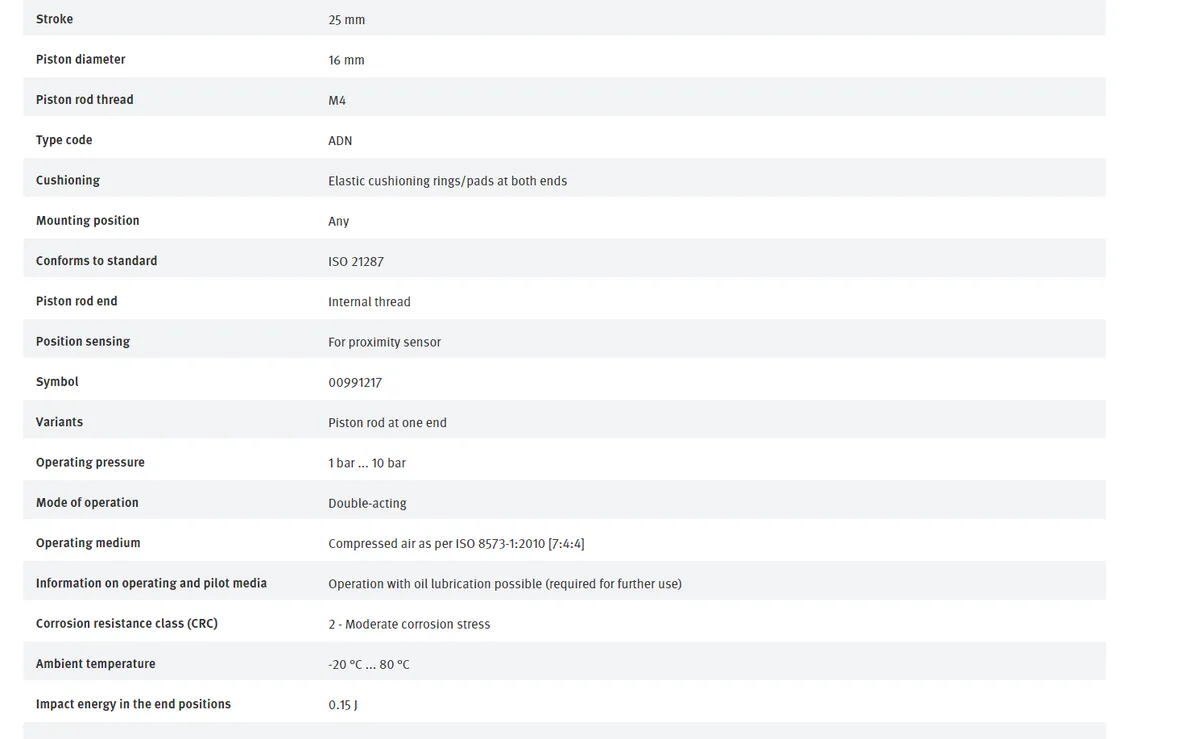

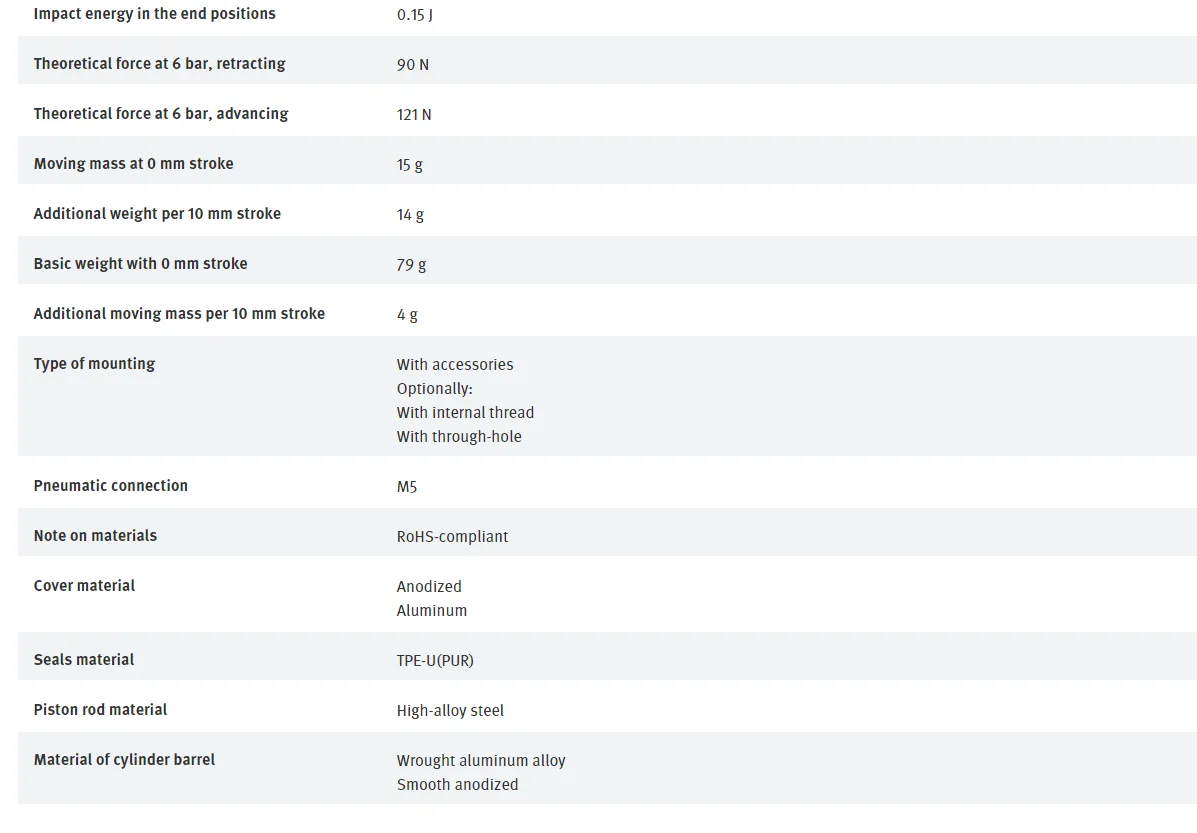

Specifications

BrandFESTO
ModelADN-16-25-I-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What pneumatic fittings and tubing sizes are needed to connect the ADN-16-25-I-P-A cylinder?

The cylinder uses standard ports for 16 mm bore pneumatic components; select push-in fittings and tubing rated for your system pressure that match the port thread size.

Will the 25 mm stroke length fit in the same mounting footprint as my existing shorter-stroke cylinders?

The ADN-16-25-I-P-A shares the 16 mm bore mounting pattern; the longer 25 mm stroke only extends the body length, so existing brackets may still align if clearance allows.

How can I verify the cylinder is actuating correctly after installation?

Pressurise the system and observe smooth extension and retraction over the full 25 mm stroke; listen for air leaks at the ports and confirm consistent speed in both directions.
