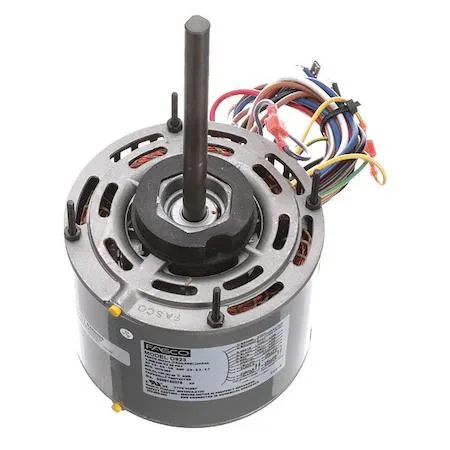

FASCO D923 1/3 HP direct drive blower motor open dripproof enclosure

FASCO

FASCO D923 1/3 HP Direct Drive Blower Motor

SKU CH-QFAB-75RA3

Direct drive blower motor with three speed settings, 1/3 HP output and 208-230V AC operation for continuous HVAC duty

  • MaterialHAWA
  • 1/3 HP PSC motor handles demanding HVAC loads
  • Three selectable speeds match airflow to system needs
  • Dual-voltage 208-230 V operation suits common supplies
  • Auto thermal protection prevents overheating damage
  • 26 in leads simplify wiring in tight cabinets

Direct-Drive Blower Motor for HVAC Systems

The FASCO D923 is a permanent-split-capacitor blower motor rated at 1/3, 1/4 and 1/5 horsepower. It operates on single-phase 208-230 V AC at 60 Hz and fits a standard 48 frame mounting. Three selectable speeds deliver a nameplate RPM of 1,075 for air-handling applications.

Electrical and Environmental Operating Limits

Full-load current ranges from 2.9 amps at 208 V to 1.70 amps at 230 V across the three speed taps. The motor is approved for continuous duty at 208 V but not at 200 V. Automatic thermal protection and Class B insulation support a maximum ambient temperature of 40 degrees Celsius in an open dripproof enclosure.

Installation Compatibility Checklist

Verify that your supply voltage stays within the 208-230 V range and that the 48 frame stud pattern matches the existing mounting points. Confirm the 26-inch lead length reaches your control box without splicing. Ensure the application can accommodate a shaft that rotates in either clockwise or counter-clockwise direction.

Highlights

  • 1/3 HP PSC motor handles demanding HVAC loads
  • Three selectable speeds match airflow to system needs
  • Dual-voltage 208-230 V operation suits common supplies
  • Auto thermal protection prevents overheating damage
  • 26 in leads simplify wiring in tight cabinets

Specifications

BrandFASCO
MaterialHAWA

Questions about this item

Should I wire this motor for 1/3 HP, 1/4 HP or 1/5 HP?

Choose the speed tap that matches the horsepower your application requires; the motor delivers 1/3 HP on high, 1/4 HP on medium and 1/5 HP on low speed.

What does the 1,075 RPM nameplate speed mean once the motor is installed?

The motor runs at approximately 1,075 RPM under full load on the selected speed tap, providing the rated airflow for your blower assembly.

How does the 208-230 V single-phase supply limit the motor in practice?

It operates on 208 V or 230 V, 60 Hz single-phase power; it is not usable at 200 V and draws 2.9 A at 208 V or 2.2 A at 230 V on the highest tap.
