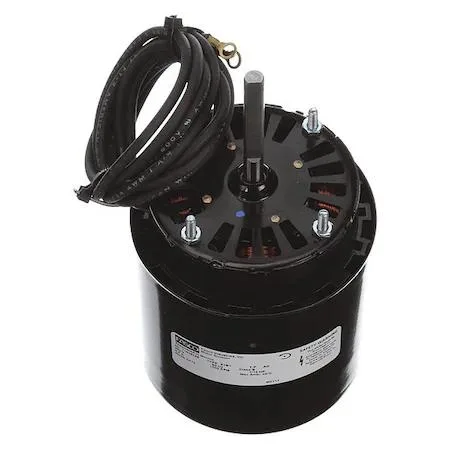

FASCO D475 condenser fan motor stud mount steel frame

FASCO

FASCO D475 Condenser Fan Motor 1/15 HP 460V Stud Mount

SKU CH-KHA5-3EPFZ

A 1/15 HP shaded-pole condenser fan motor running at 550 RPM on 460 V AC with a 3.3 in frame and stud mounting for direct OEM replacement

  • 1/15 HP motor delivers reliable condenser airflow
  • 460 V single-phase operation suits commercial HVAC systems
  • 1,550 RPM shaded-pole design provides single-speed simplicity
  • Stud mounting on 3.3 in steel frame enables direct OEM replacement
  • Auto thermal protection with Class B insulation handles 40 °C ambient conditions

Direct Replacement Motor

The FASCO D475 is a new condenser fan motor rated at 1/15 HP for 460V AC single-phase supply. It matches the Tecumseh OEM specification and replaces part number 5KCP11FG1197CS in compatible equipment. The shaded-pole design runs at 550 RPM with a 1.0 service factor and automatic thermal protection.

Continuous Duty Operation

The motor draws 0.50 full-load amps at 60 Hz and is insulated to Class B with a maximum ambient temperature of 40 degrees C. The open air-over enclosure relies on airflow from the fan blade for cooling during sustained operation. It is not usable at 200V or 208V, so the supply must stay at the nameplate voltage.

Stud Mount Installation

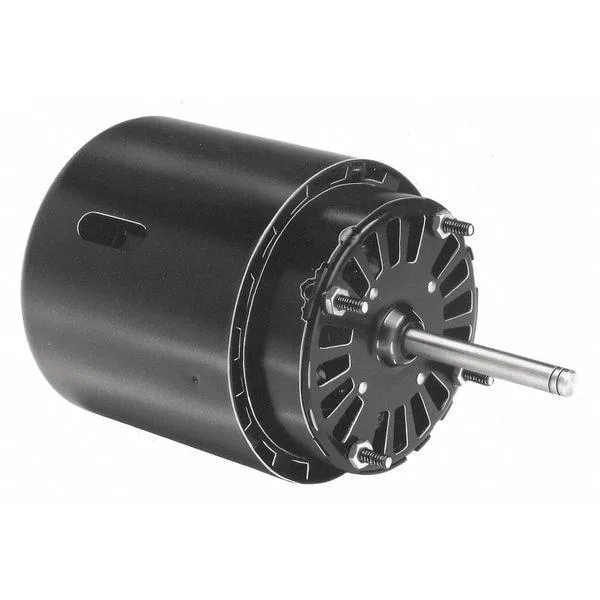

A 3.3 inch steel frame with stud mounting bolts directly to the original housing without adapter brackets. The shaft rotates counter-clockwise when viewed from the shaft end, so verify the blade orientation before tightening. Single-speed wiring keeps the connection simple, but the fixed rotation cannot be reversed in the field.

Highlights

  • 1/15 HP motor delivers reliable condenser airflow
  • 460 V single-phase operation suits commercial HVAC systems
  • 1,550 RPM shaded-pole design provides single-speed simplicity
  • Stud mounting on 3.3 in steel frame enables direct OEM replacement
  • Auto thermal protection with Class B insulation handles 40 °C ambient conditions

Specifications

BrandFASCO

Questions about this item

How much heat does the 1/15 HP motor generate when running continuously at 460V?

The motor operates at a maximum ambient temperature of 40 degrees C with Class B insulation and auto thermal protection to manage heat during continuous operation.

What mounting hardware and voltage supply are required to install this stud-mount motor?

A 460V AC single-phase power supply and compatible stud mounting hardware are needed for installation.

Will this motor replace a Tecumseh 5KCP11FG1197CS unit in an older HVAC system?

Yes, it is an OEM replacement for the Tecumseh 5KCP11FG1197CS with matching 1/15 HP, 460V, 550 RPM and CCWSE rotation.
