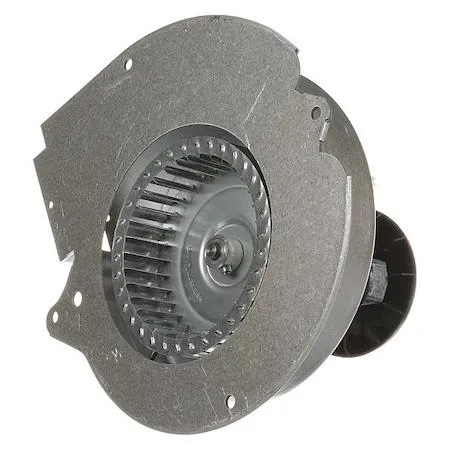

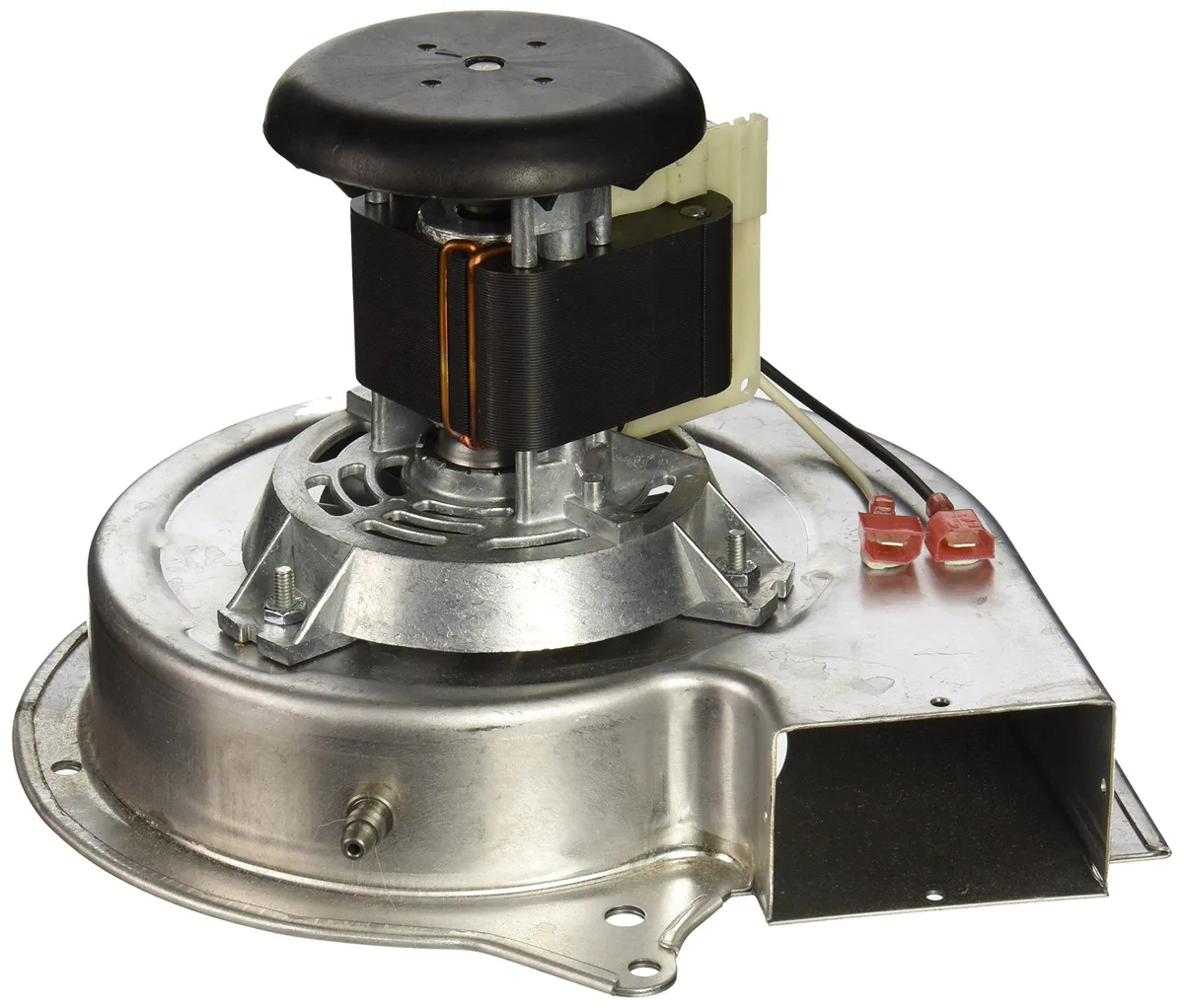

FASCO A200 rectangular blower, steel housing, wire leads visible

FASCO

FASCO A200 Rectangular Blower 3000 RPM 115V 1 Phase 95 cfm

SKU CH-JPYQ-XF38K

Rectangular blower delivers 95 cfm at 3000 RPM for furnace replacement

  • ColorTransparent
  • Delivers 95 cfm airflow at zero static pressure for efficient furnace circulation
  • Runs at 3000 RPM shaded-pole motor for consistent single-speed operation
  • Operates on 115 V single-phase 60 Hz power with 1.27 A draw
  • Withstands inlet air temperatures up to 400 °F for demanding heating applications
  • Direct-drive steel construction with wire leads simplifies installation as Lennox 31L5501 replacement

FASCO A200 Rectangular Blower

The FASCO A200 is a rectangular OEM blower designed as a direct replacement for Lennox furnace model numbers 31L5501 and 7002-2975. It operates on 115V AC single-phase power at 60 Hz with wire lead electrical connections. This unit suits HVAC technicians and maintenance professionals servicing compatible heating equipment.

Shaded Pole Motor with Class B Insulation

The shaded pole motor provides single-speed operation at a maximum of 3000 RPM with a current draw of 1.27 A. Class B insulation supports a maximum inlet air temperature of 400 degrees F. These specifications define the thermal and electrical operating envelope for the replacement blower assembly.

95 CFM Airflow at Zero Static Pressure

At 0.000 in wc static pressure the blower delivers 95 cfm of airflow with a maximum static pressure capability of 2 in wc. The 5-inch inlet diameter fits the designated Lennox applications. Installations requiring higher airflow volumes or greater static pressure headroom will need a different blower specification.

Highlights

  • Delivers 95 cfm airflow at zero static pressure for efficient furnace circulation
  • Runs at 3000 RPM shaded-pole motor for consistent single-speed operation
  • Operates on 115 V single-phase 60 Hz power with 1.27 A draw
  • Withstands inlet air temperatures up to 400 °F for demanding heating applications
  • Direct-drive steel construction with wire leads simplifies installation as Lennox 31L5501 replacement

Specifications

BrandFASCO
ColorTransparent

Questions about this item

Will the shaded-pole motor need brush replacement or lubrication over time?

The motor is a shaded-pole type with no brushes and runs on wire leads; no brush maintenance is required.

What airflow limit appears first when the blower runs against duct resistance?

Maximum static pressure is 2 in wc; airflow drops from 95 cfm as resistance approaches that limit.

How much heat and noise should I expect from the 115 V 1.27 A motor during continuous furnace operation?

The Class B insulated motor is rated for 400 °F inlet air at 3000 RPM; it will produce typical blower noise and warm exhaust air.
